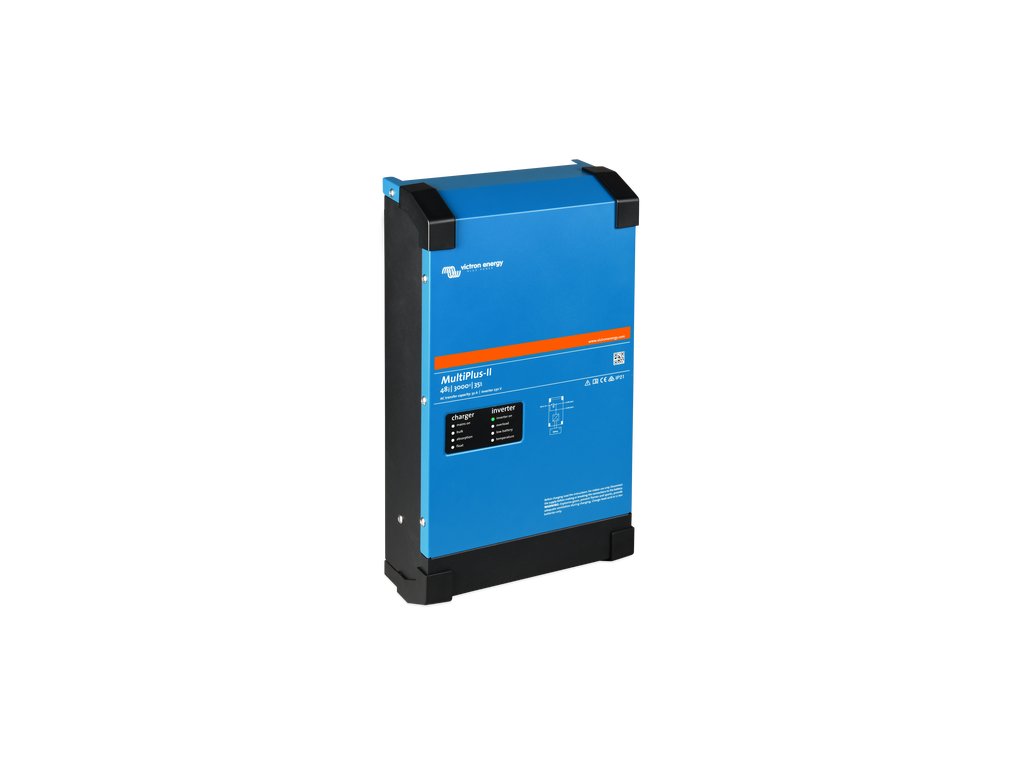

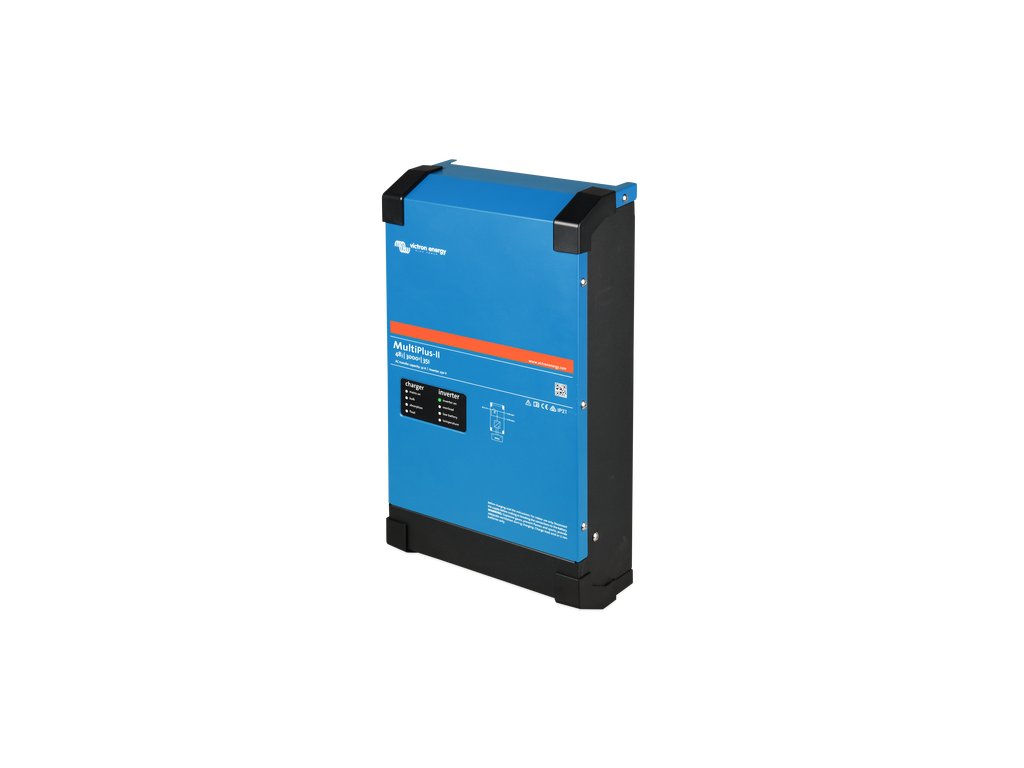

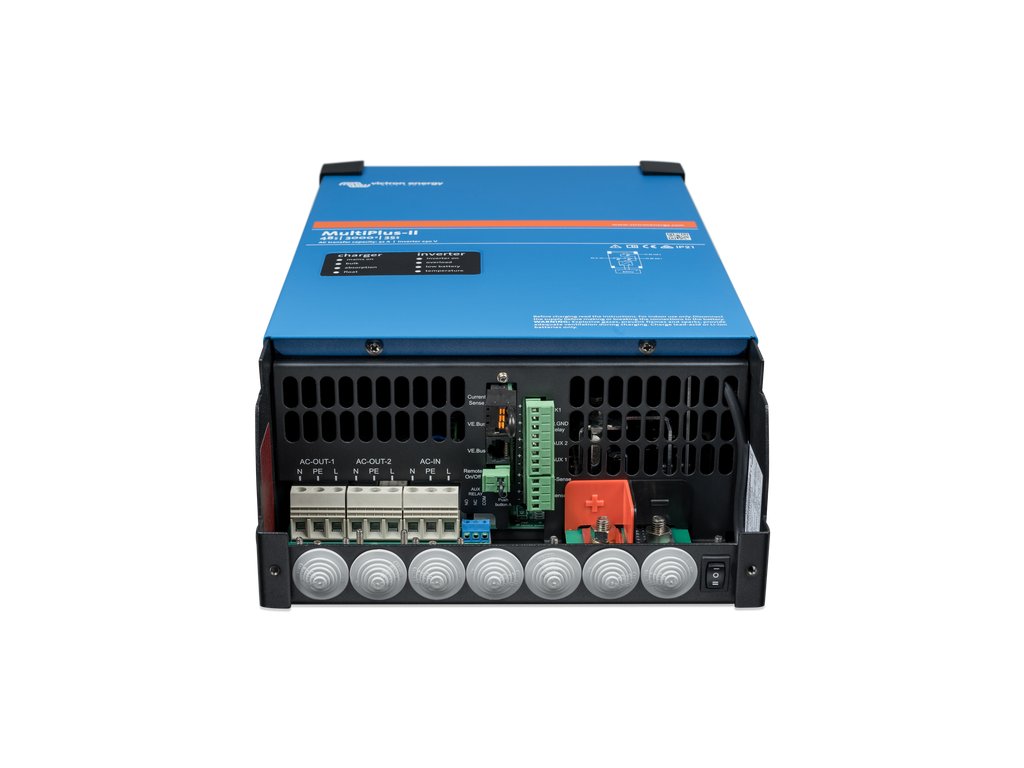

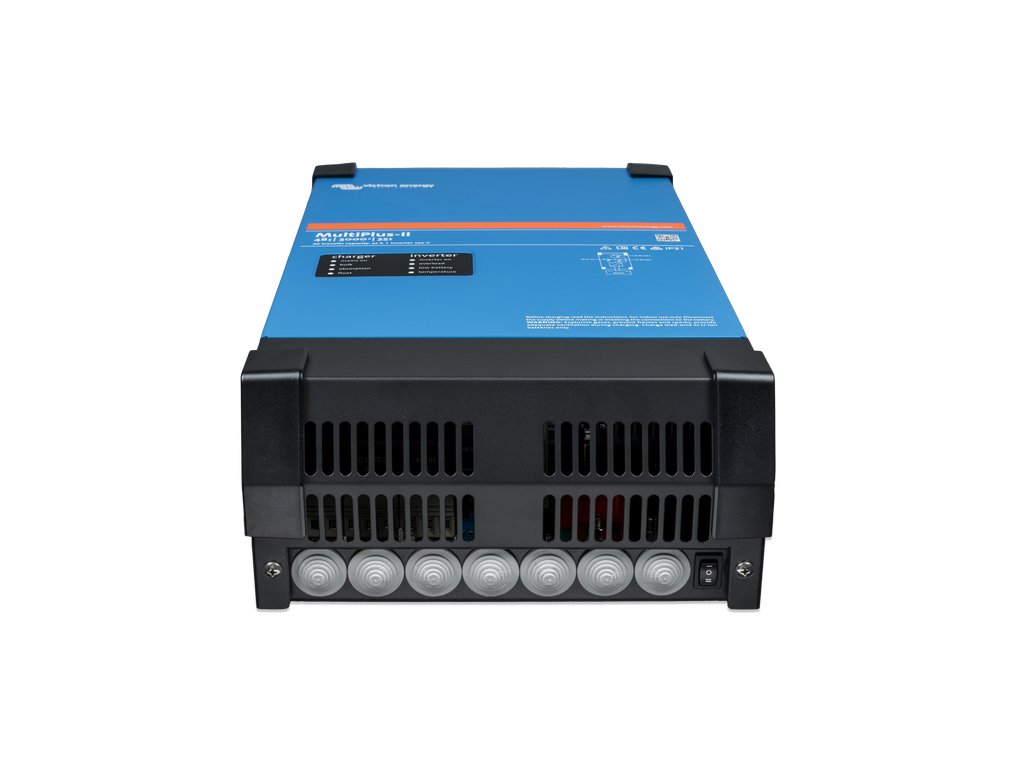

Victron MultiPlus-II 48/3000/35-32

Code: VICTRON-MP-II-48-3000-35-32
Not rated
€558,54 €687 incl. VAT
In external warehouse
Delivery to:
29.01.2025

The MultiPlus-II integrates the functionality of the MultiPlus and MultiGrid devices. It includes all the capabilities of the MultiPlus device, while adding the option of an external current transformer to implement the PowerControl and PowerAssist functions. This allows for optimization of self-consumption through external current sensing with a maximum capacity of 32 A. In addition, it includes all the features of the MultiGrid device, including built-in stall protection and a growing number of country-specific approvals.

Note: This product was briefly referred to as the MultiGrid-II during the transition phase.

  • The name is defined as:
    Nominal battery voltage/power/charging current of the domestic battery-transfer switch (A)

Detailed information

Product detailed description

Key Features

  • PowerAssist
    The MultiPlus-II serves as overload protection from a limited AC source such as a generator or shore power. Initially, the battery charge is automatically reduced to prevent overload. If the overload persists, the MultiPlus-II will take secondary action by boosting the generator or shore power with energy drawn from the battery, relieving the strain on the limited AC source.
  • ESS: Energy Storage Systems
    The MultiPlus-II serves as the central component in Victron’s Energy Storage System (ESS), offering versatile integration with MPPT solar chargers or grid-tied PV inverters. For specific examples and comprehensive information, please refer to the ESS (Energy Storage System) manual.
  • Uninterruptible Power Supply (UPS)
    During a power outage or when the shore power or generator power is disconnected, the inverter integrated in the Multi quickly steps in and seamlessly takes over power to the connected loads. This transition is so fast, in less than 20 milliseconds, that computers and other electronic devices remain operational without any interruption.
  • Remote Monitoring and Control
    When paired with a GX device such as the Cerbo GX, you gain the ability to monitor and manage your Multi and system(s) either locally (LAN) or remotely over the internet from anywhere in the world using the free VRM app and VRM portal website. Access is available via a variety of devices such as smartphones, tablets, laptops and PCs, across multiple operating systems. The level of control is virtually unlimited, from adjusting settings on your Multi to automating tasks such as starting a backup generator and much more.

Additional parameters

Category: Photovoltaics
Weight: 19 kg
Degree of protection (IP): IP22
Communication: VE.Bus
Nominal voltage: 230 V
Lenght: 141 mm
Width: 268 mm
Height: 499 mm
Power: 3000 W
Brand: Victron Energy
Battery Voltage: 48 V
Rated Battery Charge Current: 35 A
Transfer switch: 32 A
