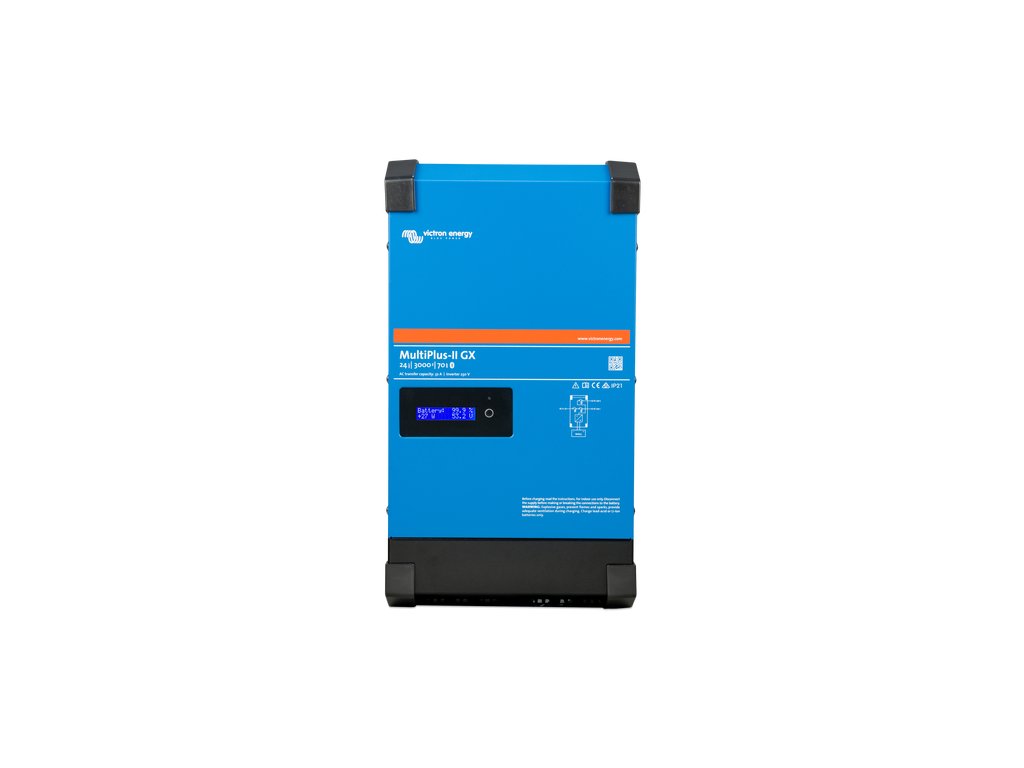

Victron MultiPlus-II 24/3000/70-32 GX
Code: VICTRON-MP-II-24-3000-70-32-GXProduct detailed description
Key Features
- MultiPlus-II with LCD display and GX function
The MultiPlus-II GX integrates the MultiPlus-II inverter/charger and the GX device with a 2 x 16 character display.
- Display and Wi-Fi
The display shows the parameters of the battery, inverter and solar charge controller.
The same parameters can be accessed using a smartphone or other Wi-Fi enabled device.
- GX Device
The integrated GX device includes:
- BMS-Can interface. This can be used to connect to a compatible battery controlled by CAN bus. Please note that this is not a
VE.Can compatible port.
- USB port.
- Ethernet port.
- VE.Direct port.
- Applications
The MultiPlus-II GX device is intended for applications where additional connectivity to other products and/or remote
monitoring is required, such as on-grid or off-grid energy storage systems and some mobile applications.
- Parallel and three-phase operation
Only one GX unit is required for parallel and three-phase operation.
Additional parameters
| Category: | Photovoltaics |
|---|---|
| Weight: | 20 kg |
| Degree of protection (IP): | IP22 |
| Communication: | VE.Bus |
| Nominal voltage: | 230 V |
| Lenght: | 147 mm |
| Width: | 275 mm |
| Height: | 506 mm |
| Power: | 3000 W |
| Brand: | Victron Energy |
| Battery Voltage: | 24 V |
| Rated Battery Charge Current: | 70 A |
| Transfer switch: | 32 A |
-
Victron MultiPlus-II 24/3000/70-32 GX Datasheet (EN) (606.7 kB)
-
Victron MultiPlus-II 24/3000/70-32 GX Manual (EN) (3.2 MB)
