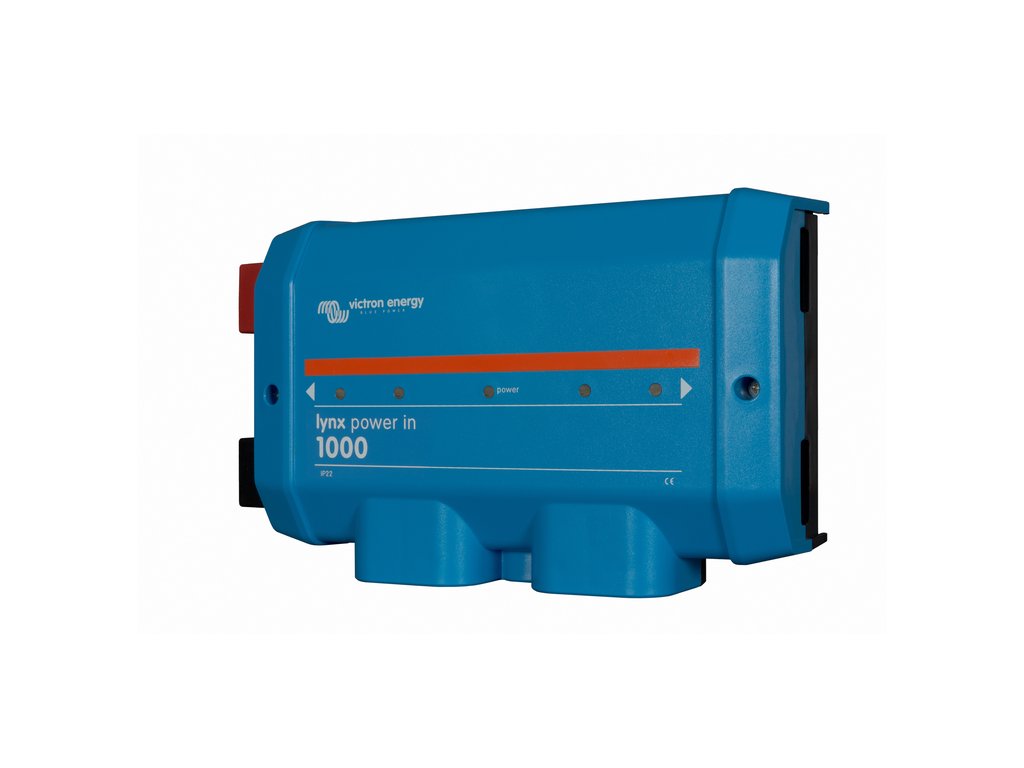

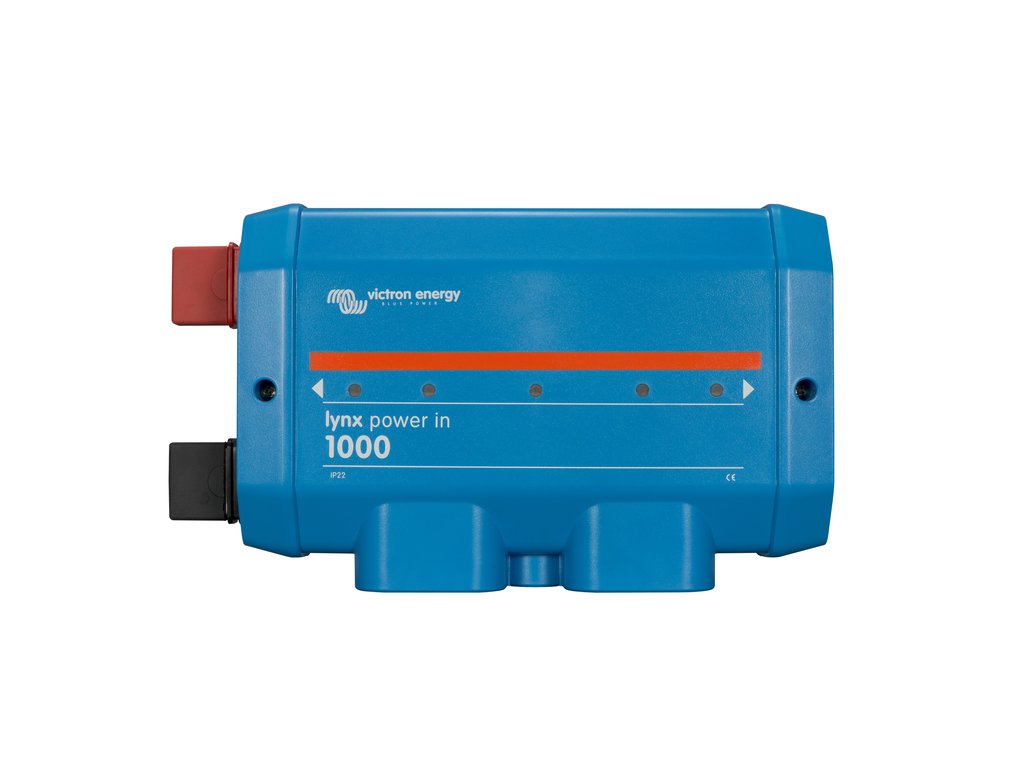

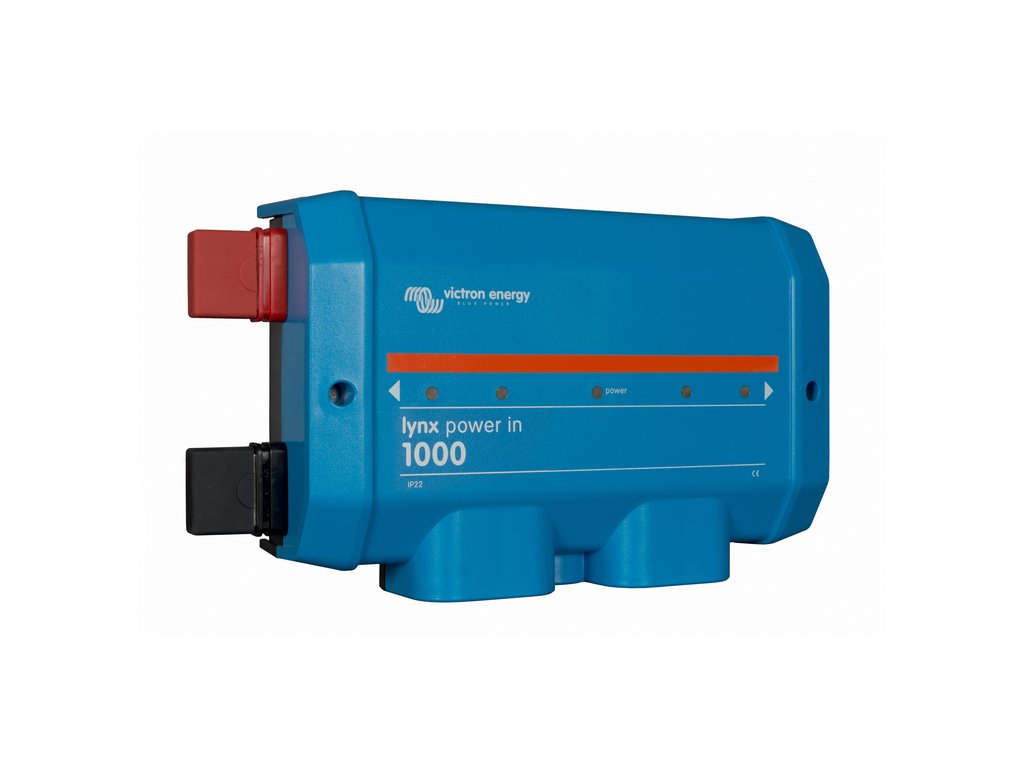

Victron Lynx Power In

Code: VICTRON-LYNX-POWER-IN

Not rated

Brand: Victron Energy

€127,64 €157 incl. VAT

Delivery to: 29.01.2025

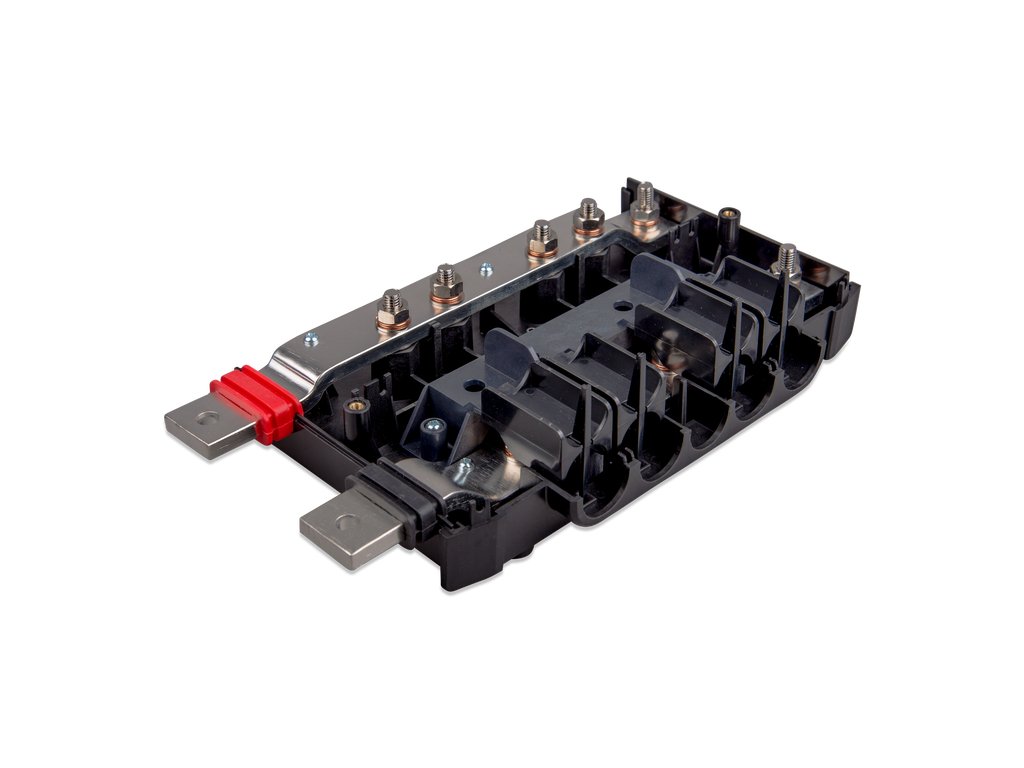

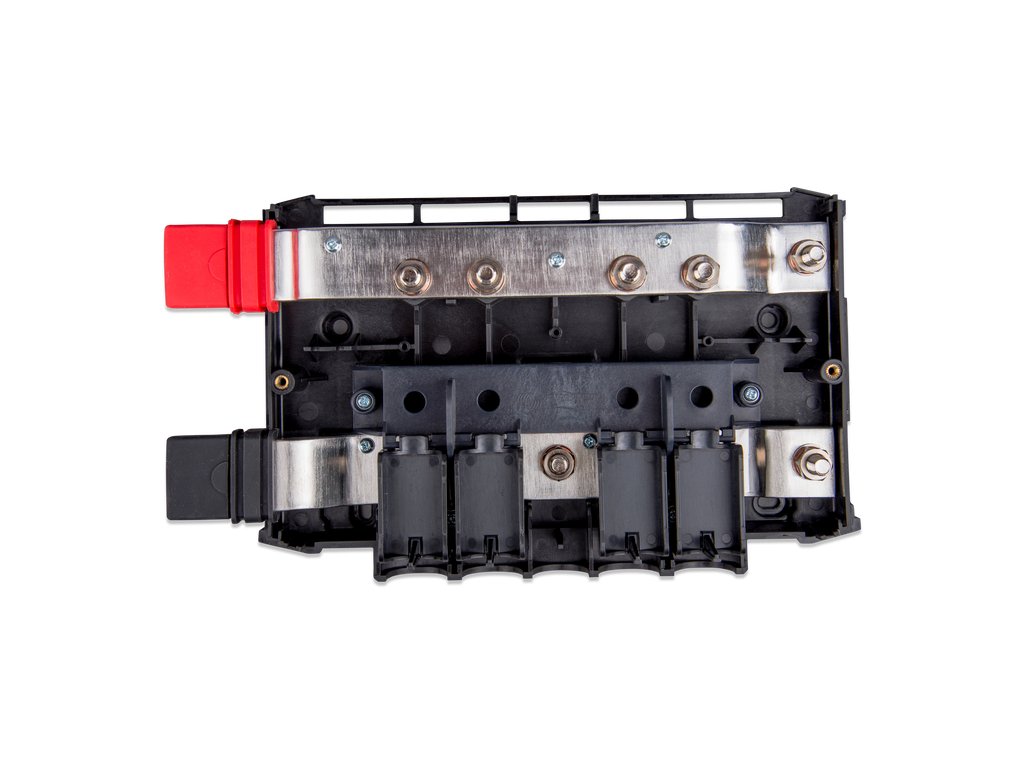

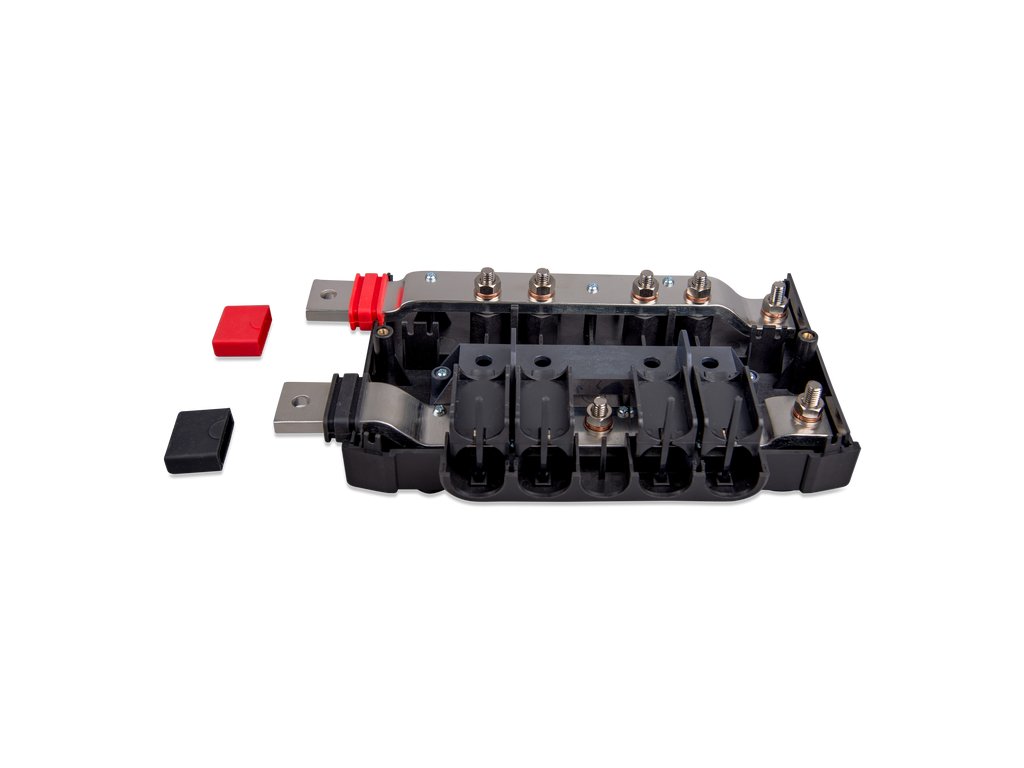

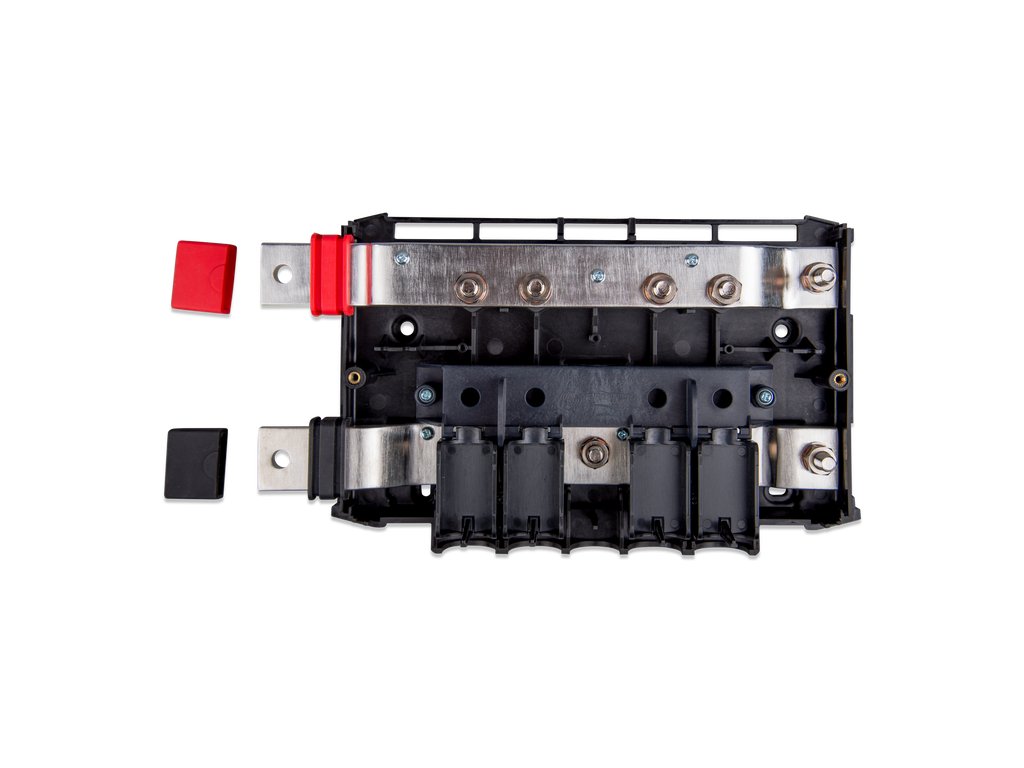

The Lynx Power In module is equipped with a positive and negative busbar with four connections for batteries, loads or chargers along with a ground connection. It is an integral part of the Lynx distribution system, which is offered in two versions with M8 or M10 busbars. The M10 designation refers to the busbar connectors used to interconnect the modules, while the fuses and cable connections remain M8.

Product detailed description

No product's description available

Additional parameters

Category:	Photovoltaics
Weight:	2.1 kg
Degree of protection (IP):	IP22
Operating voltage:	9 - 60 Vdc
Lenght:	170 mm
Width:	80 mm
Height:	290 mm
Nominal Current:	1000 A
