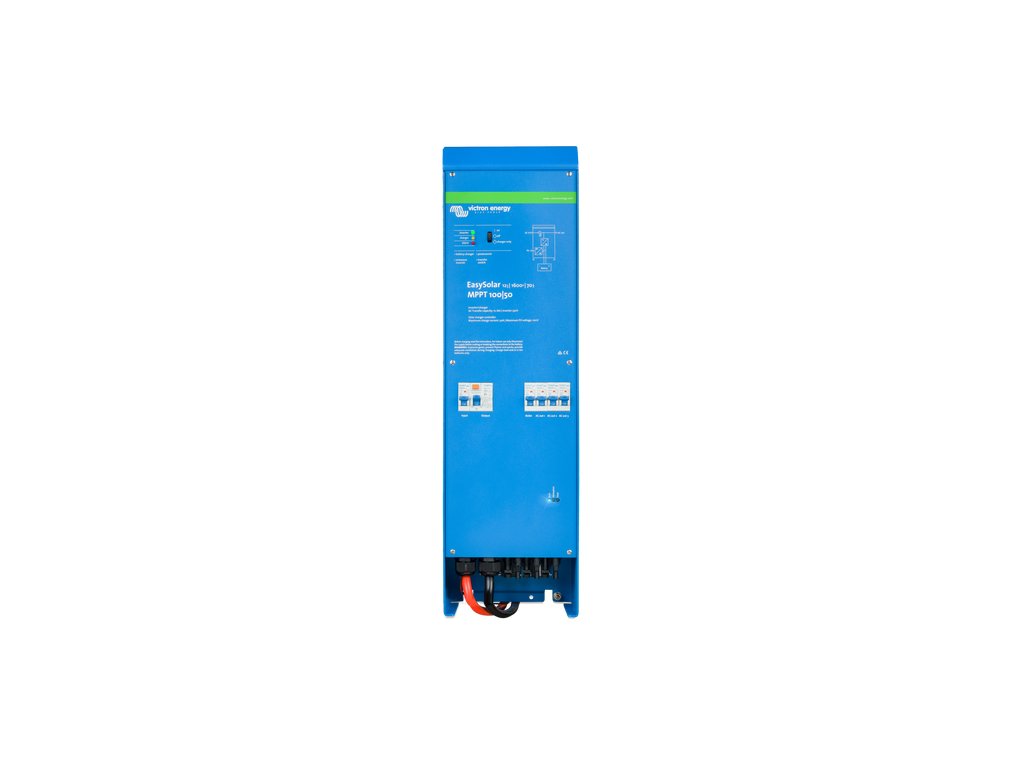

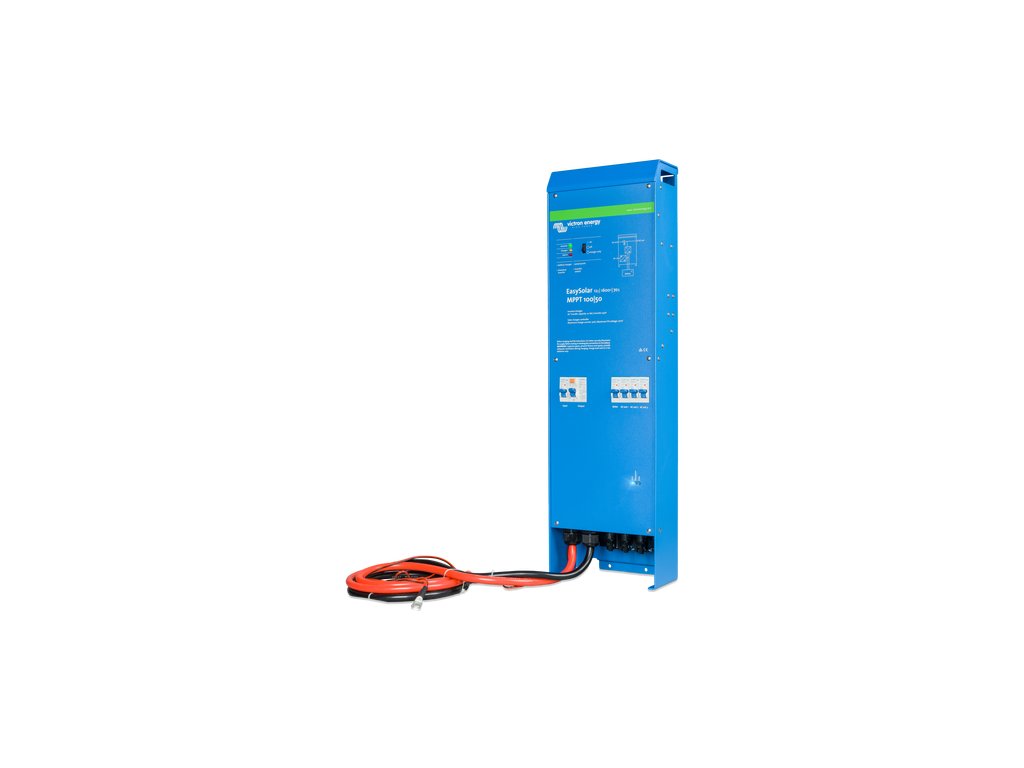

Victron EasySolar 24/1600/40-16
Code: VICTRON-EASYSOLAR-24-1600-40-16Product detailed description
Key Features:
Solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
Inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and MultiPlus Compact inverter/charger share DC battery cables (included). The batteries can be charged with solar power (SmartSolar MPPT) and/or AC power (inverter/charger) from the utility grid or generator.
AC Distribution
The AC distribution consists of a residual current device (30 mA/16 A) and four AC outputs protected by two 10 A and two 16 A circuit breakers.
One 16 A output is controlled by the AC input: it only turns on when AC power is available.
PowerAssist
The unique PowerAssist technology protects the grid or generator power supply from overload by adding additional inverter power when needed.
Unique software for solar applications
Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications.
Additional parameters
| Category: | Photovoltaics |
|---|---|
| Weight: | 15 kg |
| Degree of protection (IP): | IP21 |
| Nominal voltage: | 230 V, 24 V |
| Lenght: | 110 mm |
| Width: | 214 mm |
| Height: | 745 mm |
| Power: | 1600 W |
| Brand: | Victron Energy |
| Max. battery charge current: | 40 A |
| Transfer switch: | 16 A |
-
Victron EasySolar 24/1600/40-16 Datasheet (EN) (422.8 kB)
-
Victron EasySolar 24/1600/40-16 Manual (EN) (1.7 MB)
