Victron Dual Terminal Stud M8

Code: VICTRON-DUAL-TERMINAL-STUD-M8

Not rated

Brand: Victron Energy

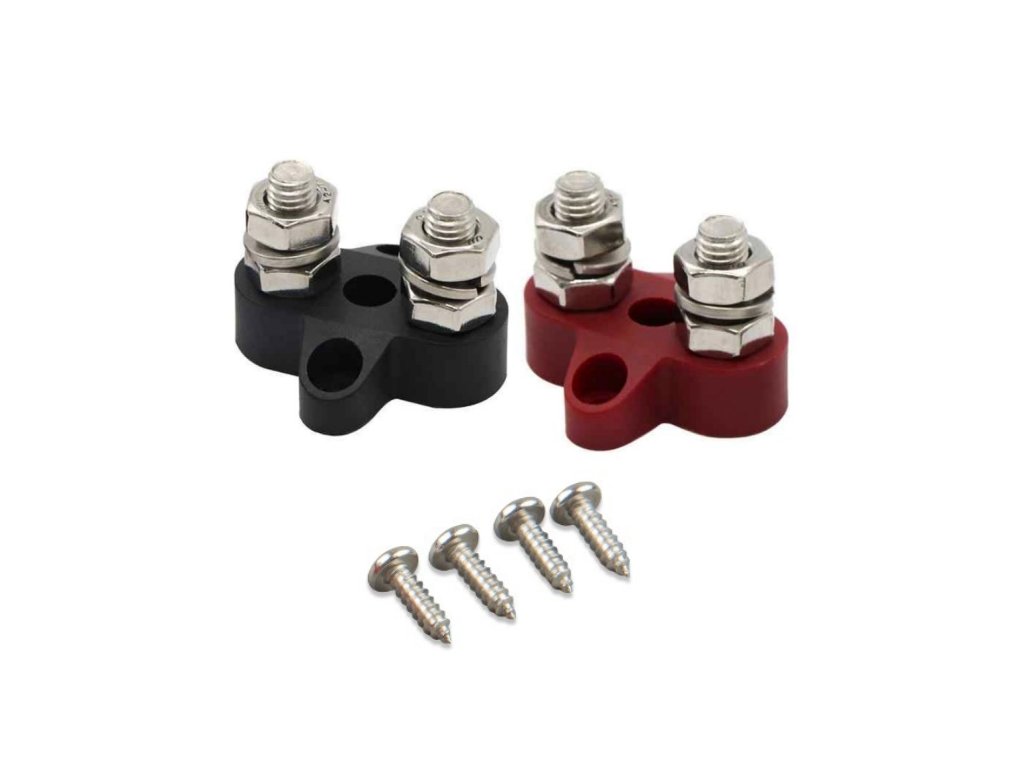

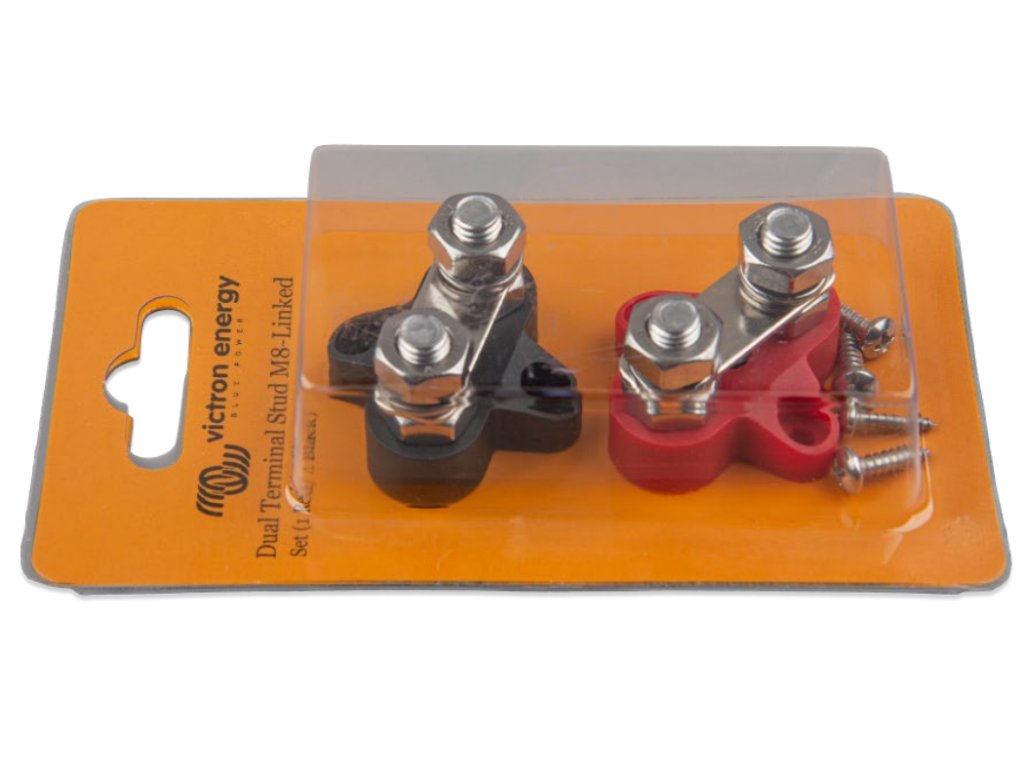

Victron Dual Terminal Stud M8

Victron Dual Terminal Stud M8

Victron Dual Terminal Stud M8

€40,65 €50 incl. VAT

Delivery to: 29.01.2025

The Victron Dual Terminal Stud is used for connecting electrical distribution, distributing power to various locations and centrally consolidating earth cables. With a current rating of up to 150A and the ability to handle up to 70VDC, it provides efficient and reliable power distribution in a variety of applications.

Detailed information

Product detailed description

Used to connect two or more power lines
Connect positive return lines to a single cable
Maximum voltage: 70VDC
Colors available: Red and black
Terminal diameter: M8 (5/16 inch)
Terminal height: 17mm
Base material: Material: Glass-reinforced nylon
Terminal material: Stainless steel
Hex nut material: Stainless steel
Busbar material: Tinned copper (1.0 x 13mm)

Additional parameters

Category:	Photovoltaics
Weight:	0.07 kg
Lenght:	32 mm
Width:	43 mm
Height:	43 mm
Brand:	Victron Energy
Maximum voltage:	70V
Maximum feed through current:	150 A

Show all alternative products

Victron Dual Terminal Stud M8 Datasheet (EN) (208.9 kB)
