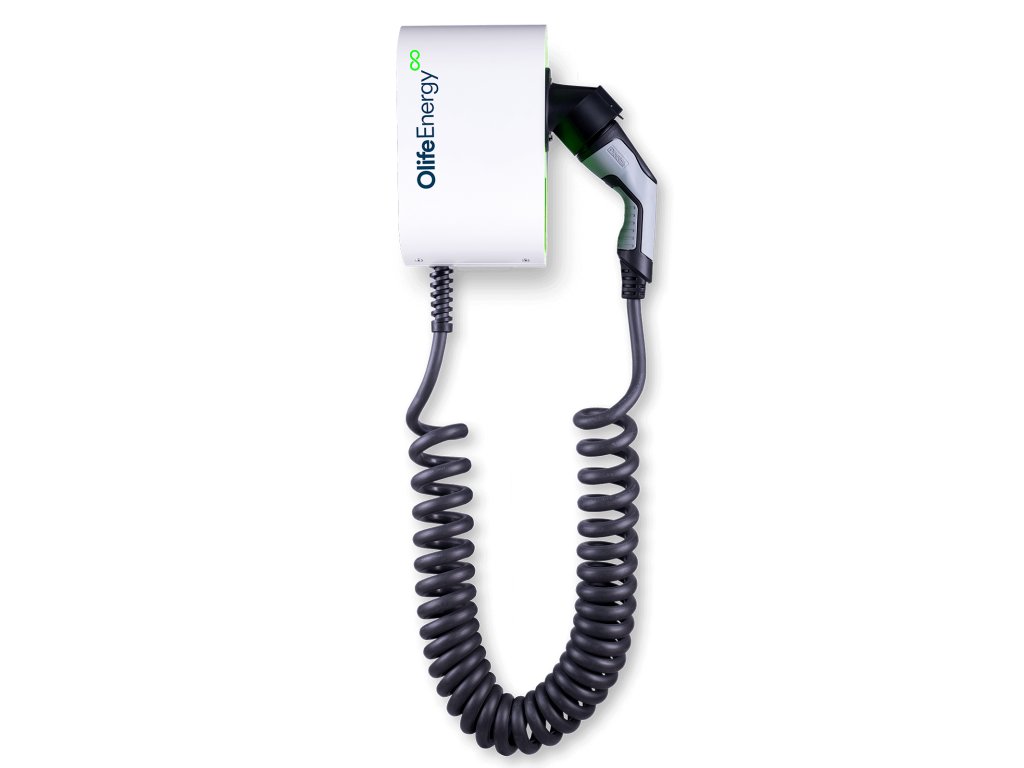

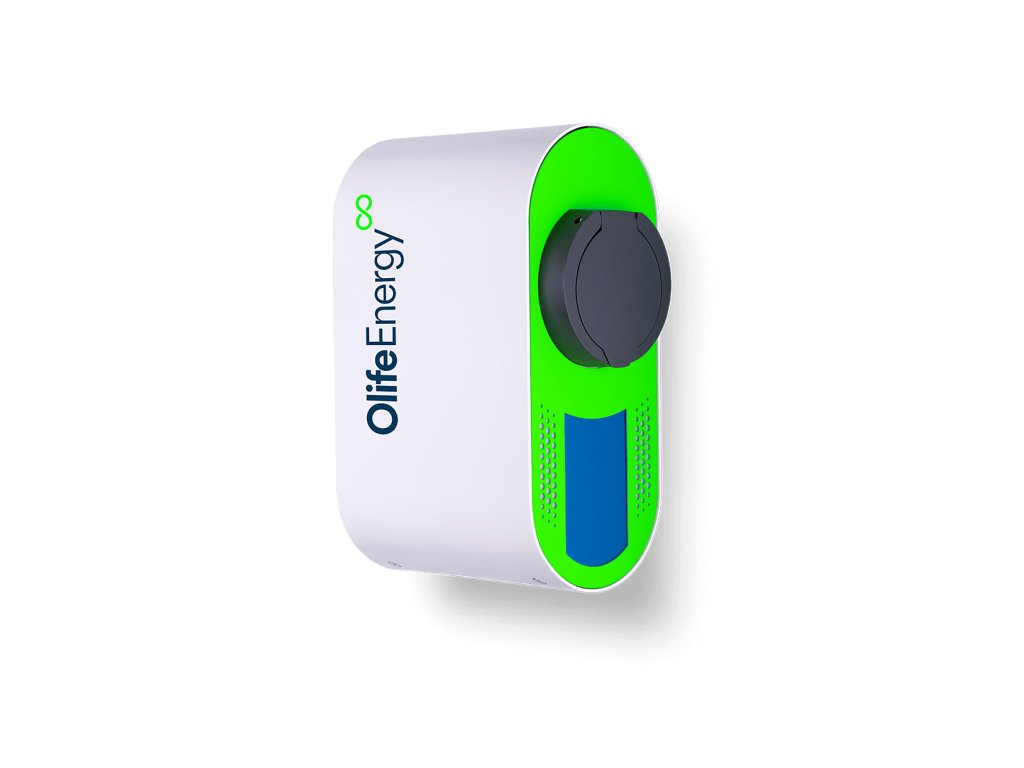

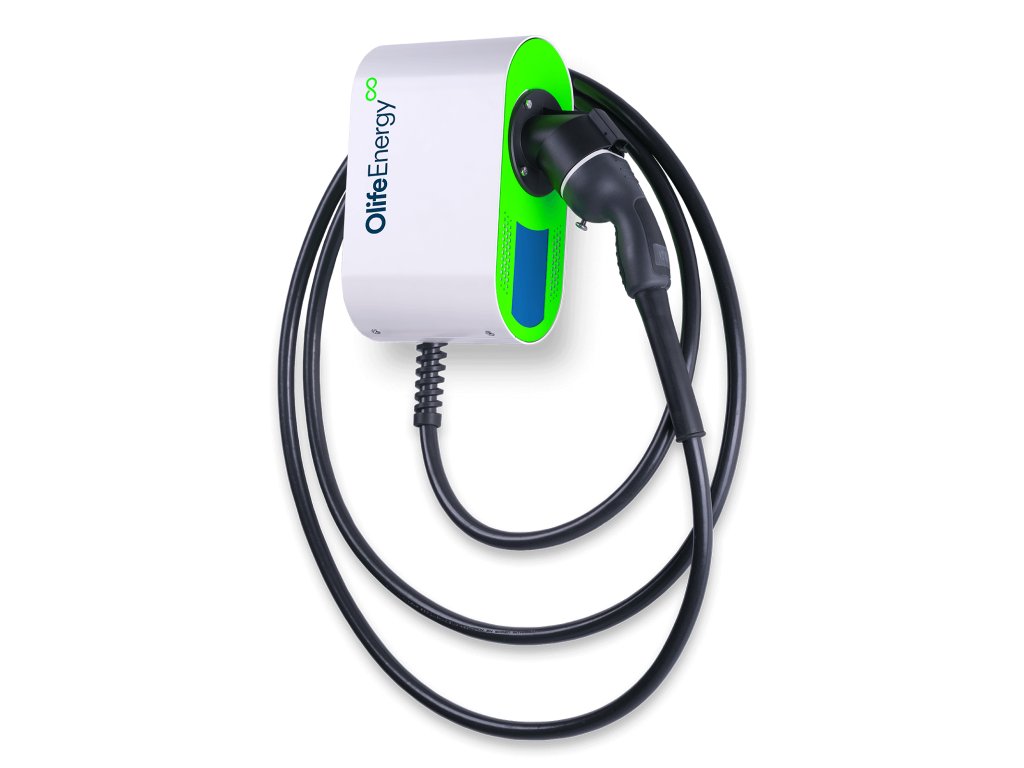

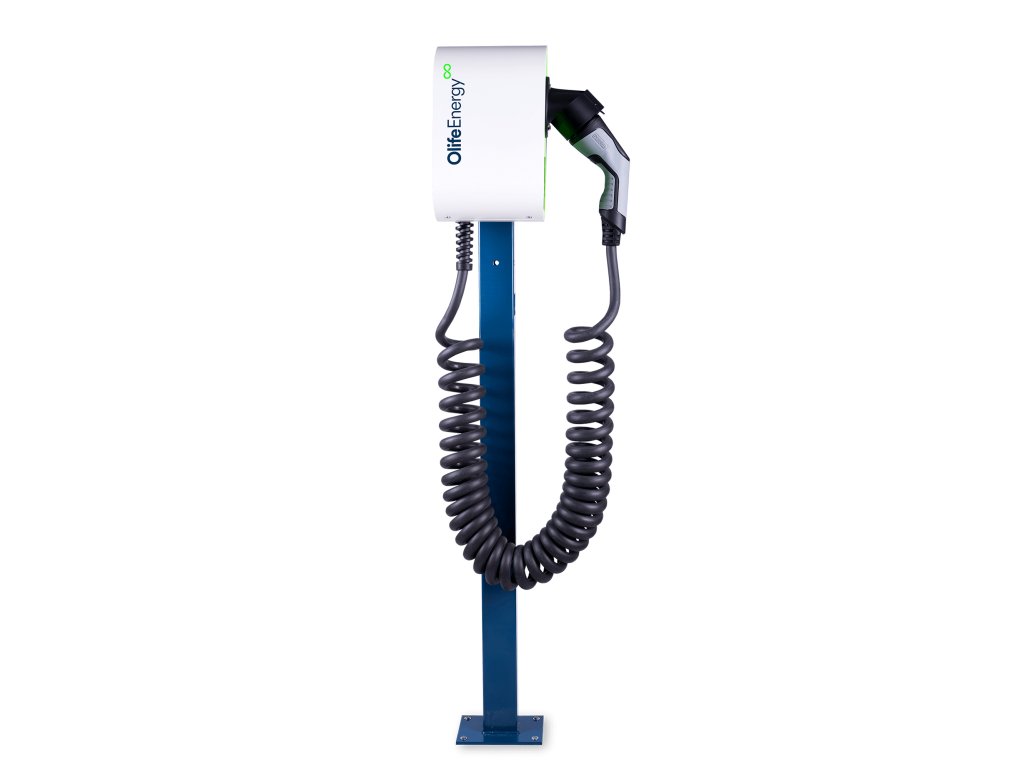

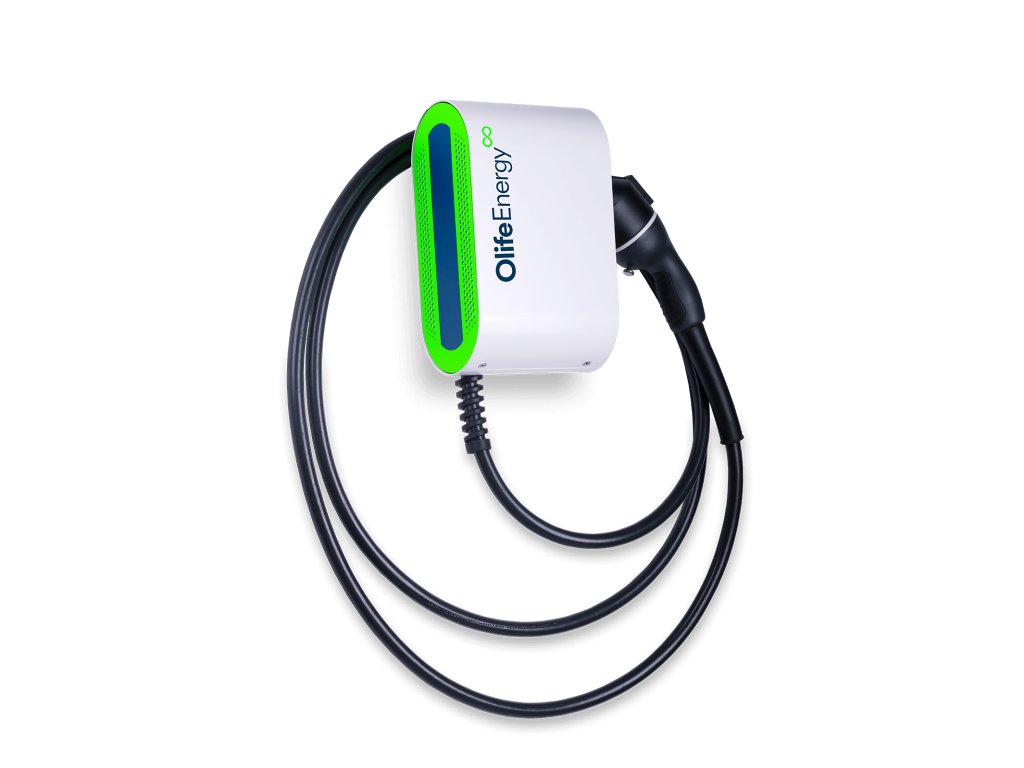

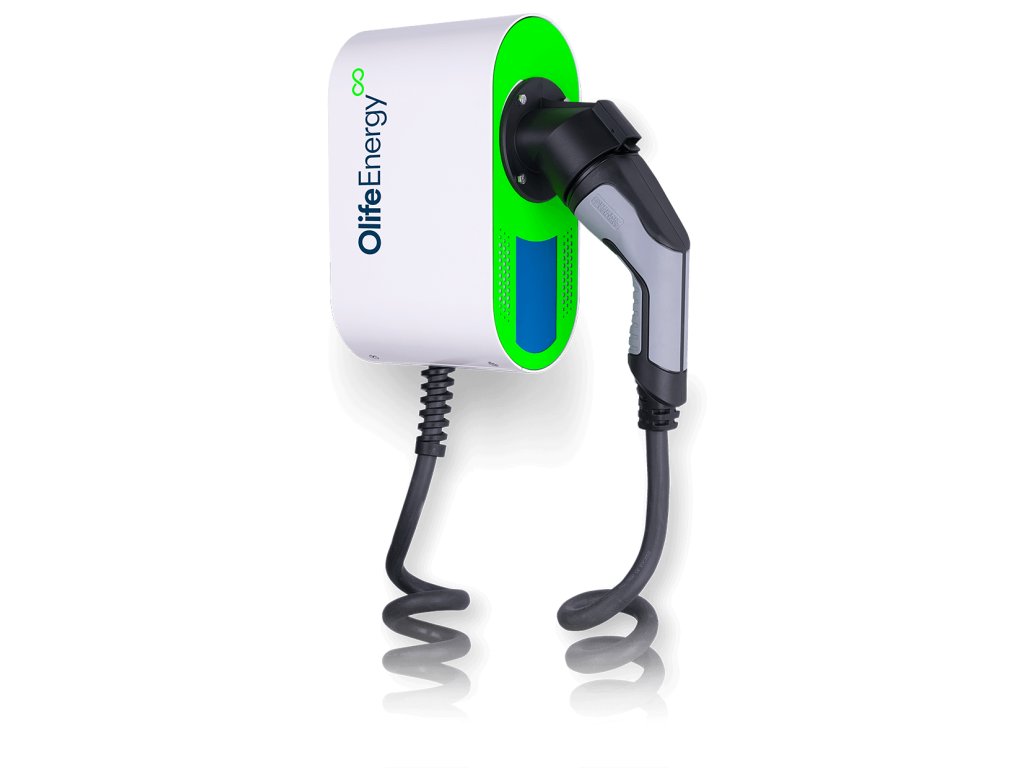

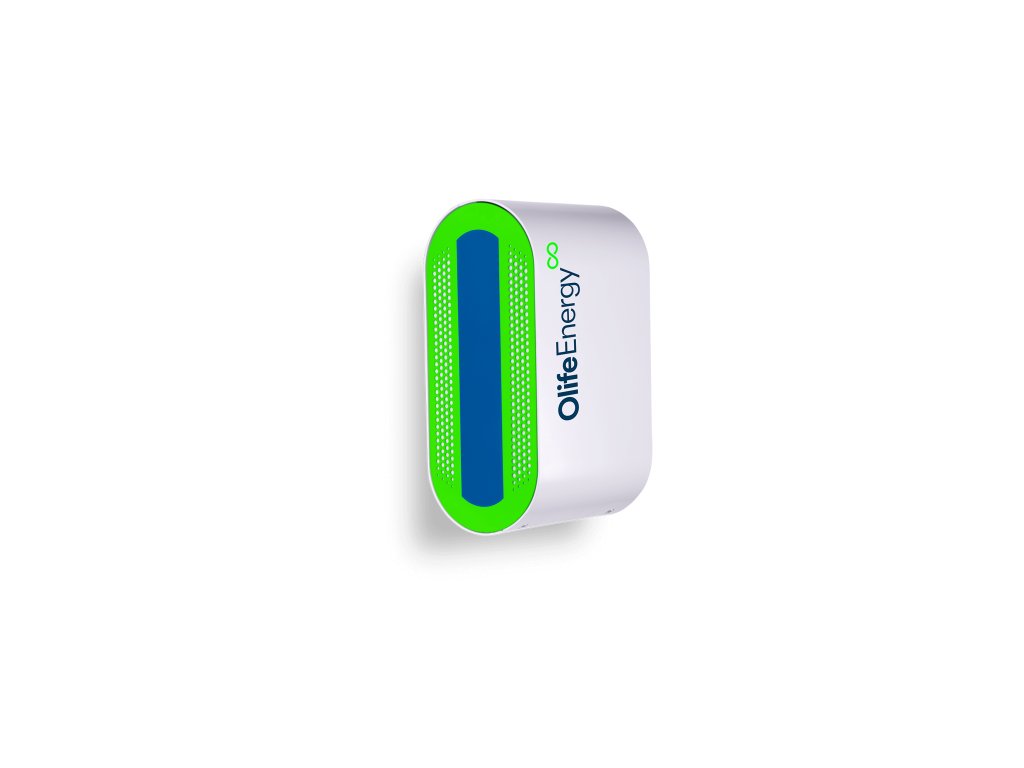

OlifeEnergy WallBox Cable version - BASE
Code: WB22AC2RBProduct detailed description
Automatic Start
Charging session initiation options include automatic start upon vehicle connection or authorization via RFID card or mobile phone. Complete configuration via Smartphone app
Adjustable charger output from 0 to 22 kW
Dynamic output control
Via external OlifeEnergy SmartMeter unit to prevent circuit breaker release during high consumption or charge from excess solar power or low tariff.
Integration capabilities
Connection to ripple control
Integration into smart households
Connection to battery storage
Integration with other control systems
WallBox CLOUD extended version
Communicates with a remote server (OlifeEnergy Cloud, OCPP)
Provides input power control for multiple OlifeEnergy stations.
Offers remote diagnostics, authorization, and user management.
Inclusion in OlifeEnergy Net network of charging stations
Enabling extra income for public EV charging.
Additional parameters
| Category: | Wallbox |
|---|---|
| Weight: | 9.5 kg |
| Degree of protection (IP): | IP54 |
| Charging power: | 22 kW |
| Connector: | Type 2 |
| Communication: | RS485, Bluetooth, Modbus RTU, ADC 0-10 V, OlifeEnergy Cloud, OCPP 1.6/2.0 |
| Lenght: | 120 mm |
| Width: | 266 mm |
| Height: | 320 mm |
| Brand: | OlifeEnergy |
| [EV Chargers] Type of connection: | Type C (pursuant to EN 61851) |
-
OlifeEnergy WallBox Cable version Datasheet (EN) (426.7 kB)
-
OlifeEnergy WallBox Cable version Manual (EN) (2.1 MB)
-
OlifeEnergy WallBox Cable version Datasheet (CZ) (248.3 kB)
-
OlifeEnergy WallBox Cable version Manual (CZ) (2.1 MB)
