KAISAI Arctic heat pump KHA-14RY3 + KMK-240L-160RY3 with integrated DHW tank
Code: 1411Product detailed description

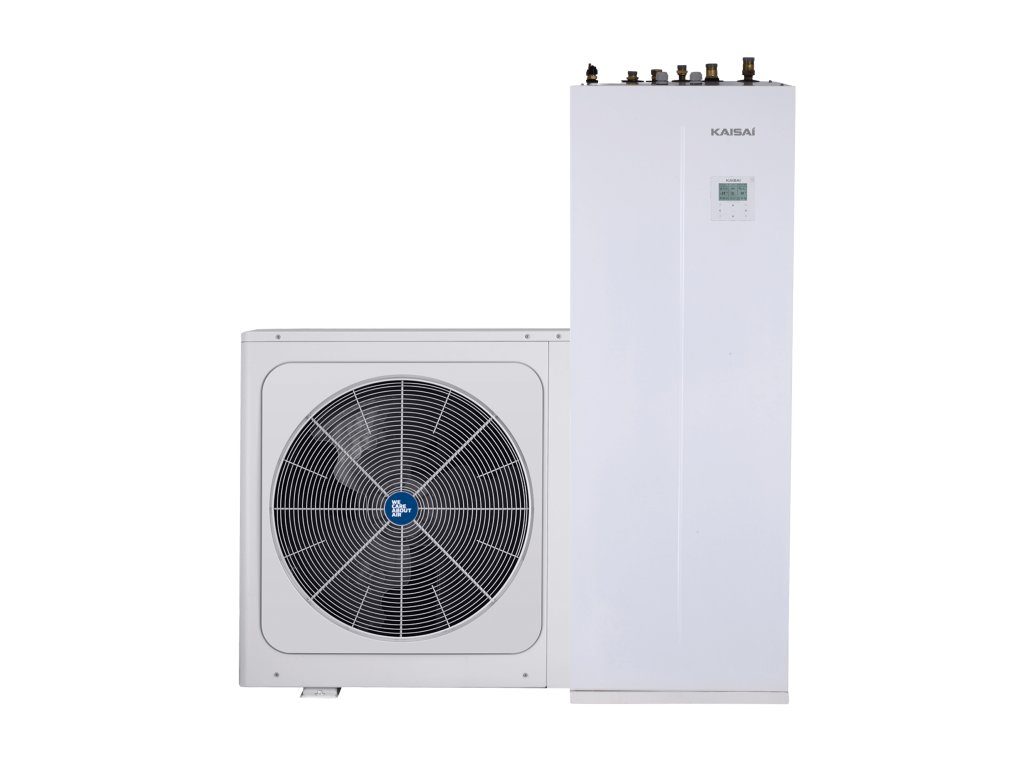

Set:

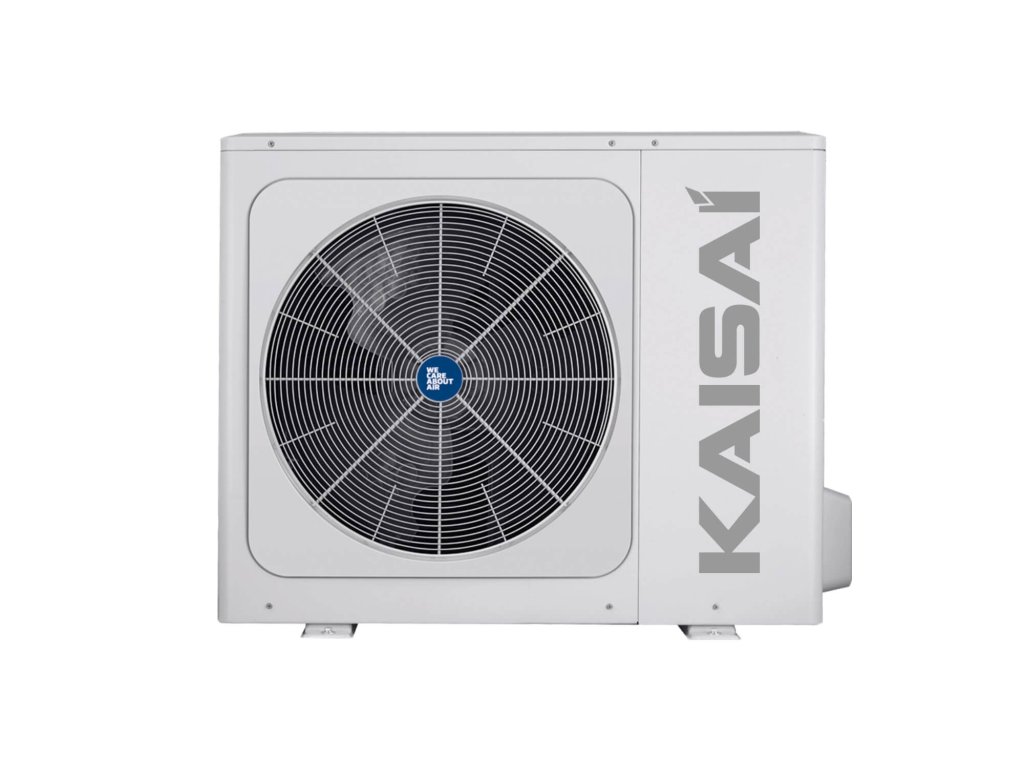

- 1pc KAISAI ARCTIC outdoor unit KHA-14RY3
- 1pc KAISAI indoor unit "hydrobox" with integrated 240l water tank KMK-240L-160RY3
Heat pumps with hydronic module equipped with hot water tank from the new KAISAI Arctic range of heat pumps, which are characterized by the ability to operate in a very wide range of outdoor temperatures.
The module comes in two capacity variants: 190 and 240 l. It features a built-in three-way valve and an additional heater, and the unit's compact design means that its surface area is just 0.36 m². Corrosion protection of the tank is ensured by the use of SUS 316L stainless steel.
The compact design, independent indoor unit and flexible installation make the Eco Home - Split Heat Pump (KHA+KMK) ideal for homeowners, shops, offices and commercial premises.
All hydraulic components are easily accessible. The refrigerant connection between the outdoor and indoor units is freeze-proof even during a prolonged power outage, and additional refrigerant charge is only required if the length of the refrigerant piping exceeds 15 m.
Specifications
- 6 operating modes: heating / cooling / DHW / heating + DHW / cooling + DHW / AUTO
- WiFi wireless operation
- Modbus RTU protocol
- Compact design (complete hydraulic module for central heating operation)
- Advanced controller in the indoor unit
- Additional electric heater
- Anti-corrosion coating on fins
Technical data
- Rated power (heating): 6 / 8 / 10 / 12 / 14 / 16 kW
- Heater heating capacity: 3 / 6 / 9 kW
- Refrigerant R32
- Energy class (heating): A+++/A++
- COP: up to 5.2
- Water temperature - heating mode: 25 ~ 65 °C
- Water temperature - cooling mode: 5~35°C
- Water temperature - DHW mode: 30~60°C
- Outdoor temperature range - heating mode: -25~35°C
- Outdoor temperature range - cooling mode: -5~43 °C
- Outdoor temperature range - DHW mode: -25~43°C
Additional parameters
| Category: | Split Arctic with integrated DHW tank |
|---|---|
| Weight: | 175 kg |
-
