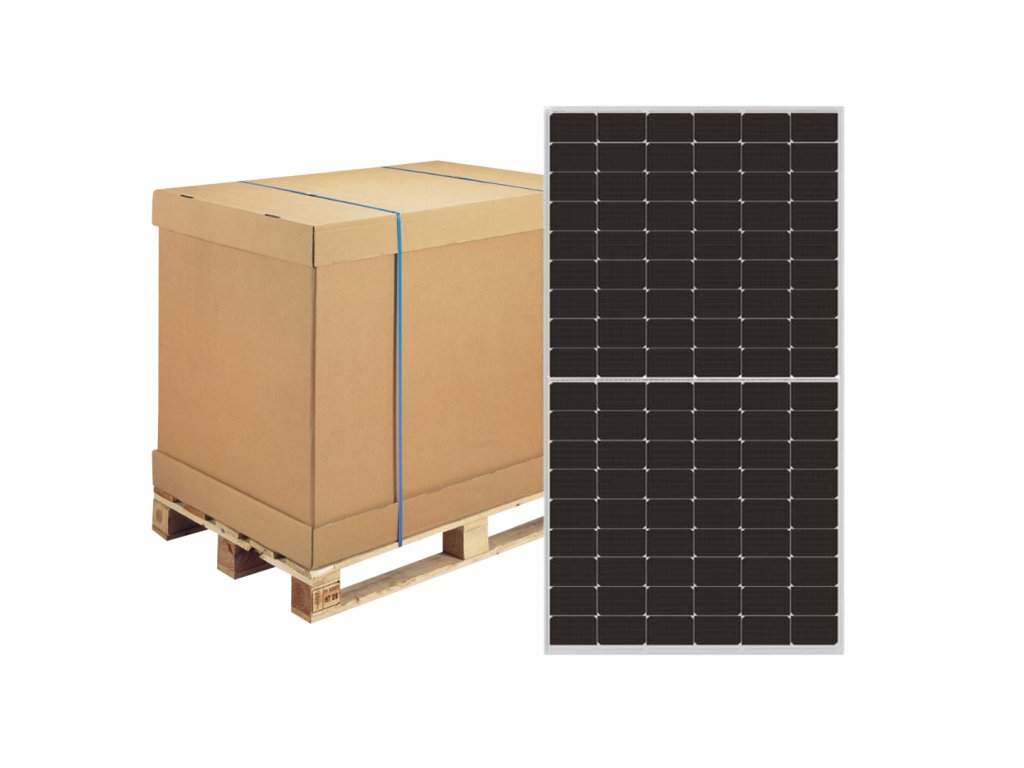

Jinko Solar TigerNeo JKM580N-72HL4-V (JK03M)
Code: JKM580N-72HL4-VProduct detailed description
No product's description available
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 27 kg |
| Lenght: | 2278 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 580 W |
| Pallet: | 36 pcs |
| Brand: | Jinko Solar |
| Cell: | N-Type Monocrystalline |
| Frame color: | Silver |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Connector: | JK03M |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 144 [2 x (12 x 6) ] |
| Maximálny výkon (Pmax): | 580 Wp |
| Maximálne napätie (Vmp): | 43.35 V |
| Maximálny napájací prúd (Imp): | 13.38 A |
| Napätie v otvorenom obvode (Voc): | 52.31 V |
| Skratový prúd (Isc): | 14.01 A |
| Účinnosť modulu STC (%): | 22.45% |
| Prevádzková teplota (℃): | -40℃~+85℃ |
| Maximálne napätie systému: | 1000/1500VDC (IEC) |
| Maximálna menovitá hodnota sériovej poistky: | 25A |
| Tolerancia výkonu: | 0~+3% |
| Teplotné koeficienty Pmax: | -0.29%/℃ |
| Teplotné koeficienty Voc: | -0.25%/℃ |
| Teplotné koeficienty Isc: | 0.045%/℃ |
| Nominálna prevádzková teplota článku (NOCT): | 45±2℃ |
-
Jinko Solar TigerNeo JKM580N-72HL4-V (JK03M) Datasheet (EN) (2.3 MB)
-
Jinko Solar TigerNeo JKM580N-72HL4-V (JK03M) Manual (EN) (2.6 MB)
-
Jinko Solar TigerNeo JKM580N-72HL4-V (JK03M) OM Manual (EN) (59.7 MB)
