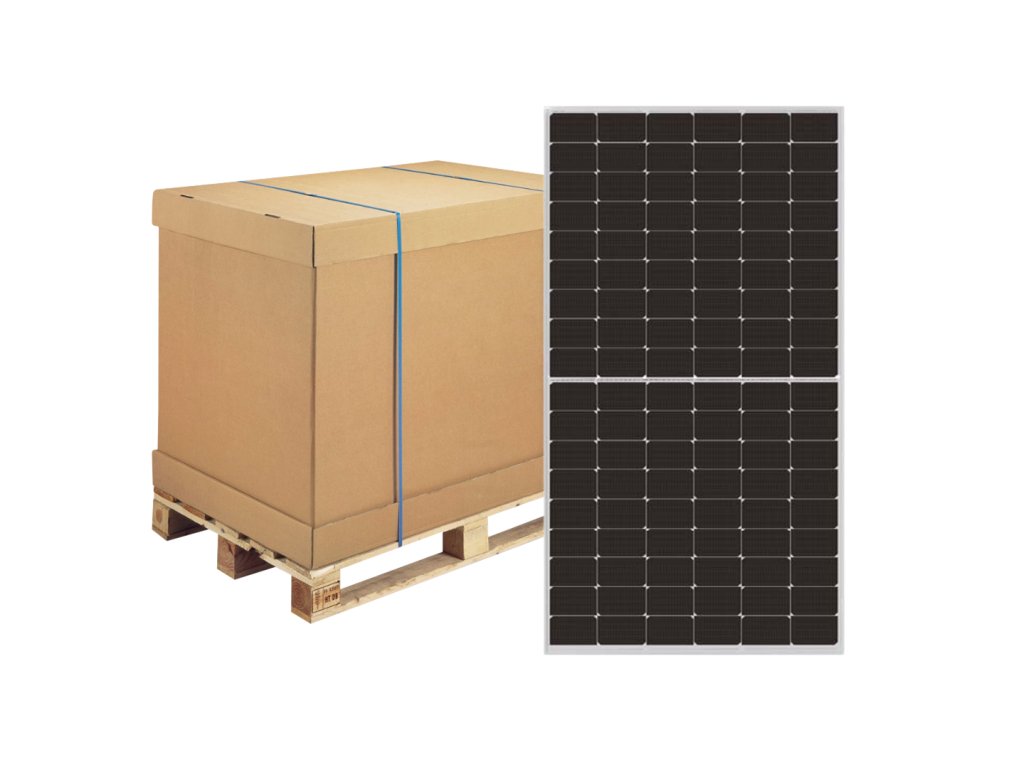

Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame)
Code: JKM485N-60HL4-V-BFProduct detailed description
SMBB technology
Improved light trapping and current draw to increase module performance and reliability.
PID immunity
Guarantee superior Anti-PID performance through optimized mass production process and materials control.
Resistance to extreme environmental conditions
High resistance to salt fog and ammonia.
Hot 2.0 technology
N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.
Increased mechanical load
Certified to withstand: wind load (2400 Pascals) and snow load (5400 Pascals).
LINEAR PERFORMANCE GUARANTEE
12-year product warranty
30-year linear performance warranty
0.40% annual degradation over 30 years
Certifications
IEC61215(2016), IEC61730(2016)
ISO9001:2015: quality management system
ISO14001:2015: environmental management system
ISO45001:2018: Occupational health and safety management systems
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22.5 kg |
| Lenght: | 1906 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 485 W |
| Pallet: | 36 pcs |
| Container (40' HQ): | 864 pcs |
| Brand: | Jinko Solar |
| Cell: | N-Type Monocrystalline |
| Frame color: | Black |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Connector: | JK03M |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 120 [2 X (10 X 6) ] |
| Maximum Power ‒ (Pmax): | 485 Wp |
| Maximum Power Voltage (Vmp): | 36.25 V |
| Maximum Power Current (Imp): | 13.38 A |
| Open-circuit Voltage (Voc): | 43.76 V |
| Short-circuit Current (Isc): | 13.93 A |
| Module Efficiency STC (%): | 22.44% |
| Operating Temperature (℃): | -40℃~+85℃ |
| Maximum System Voltage: | 1000/1500VDC (IEC) |
| Maximum Series fuse Rating: | 25A |
| Power Tolerance: | 0~+3% |
| Temperature Coefficients of Pmax: | -0.29%/℃ |
| Temperature Coefficients of Voc: | -0.25%/℃ |
| Temperature Coefficients of Isc: | 0.045%/℃ |
| Nominal Operating Cell Temperature (NOCT): | 45±2℃ |
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) Datasheet (EN) (1.7 MB)
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) Manual (EN) (2.6 MB)
-
Jinko Solar TigerNeo JKM485N-60HL4-V (JK03M, Black Frame) OM Manual (EN) (59.7 MB)
