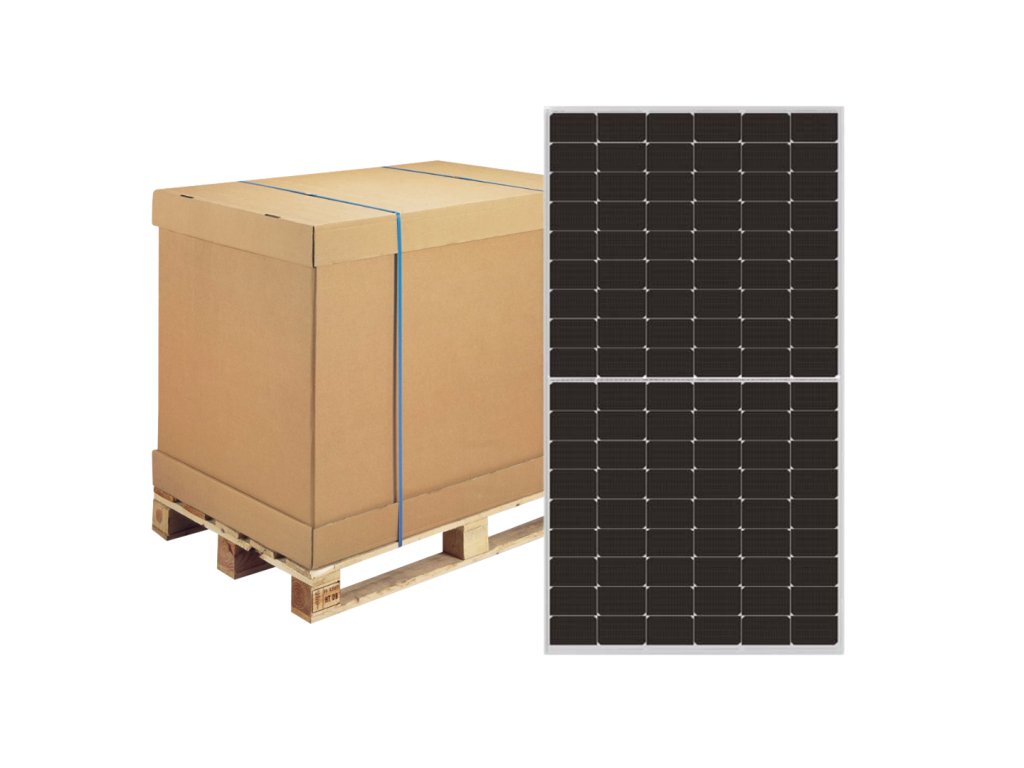

Jinko Solar TigerNeo JKM480N-60HL4-V (JK03M, Black Frame)
Code: JKM480N-60HL4-V-BFProduct detailed description
No product's description available
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22.5 kg |
| Lenght: | 1906 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 480 W |
| Pallet: | 36 pcs |
| Brand: | Jinko Solar |
| Cell: | N-Type Monocrystalline |
| Frame color: | Black |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Connector: | JK03M |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 120 [2 X (10 X 6) ] |
| Maximálny výkon (Pmax): | 480 Wp |
| Maximálne napätie (Vmp): | 36.06 V |
| Maximálny napájací prúd (Imp): | 13.31 A |
| Napätie v otvorenom obvode (Voc): | 43.60 V |
| Skratový prúd (Isc): | 13.85 A |
| Účinnosť modulu STC (%): | 22.21% |
| Prevádzková teplota (℃): | -40℃~+85℃ |
| Maximálne napätie systému: | 1000/1500VDC (IEC) |
| Maximálna menovitá hodnota sériovej poistky: | 25A |
| Tolerancia výkonu: | 0~+3% |
| Teplotné koeficienty Pmax: | -0.29%/℃ |
| Teplotné koeficienty Voc: | -0.25%/℃ |
| Teplotné koeficienty Isc: | 0.045%/℃ |
| Nominálna prevádzková teplota článku (NOCT): | 45±2℃ |
-
Jinko Solar TigerNeo JKM480N-60HL4-V (JK03M, Black Frame) Datasheet (EN) (1.7 MB)
-
Jinko Solar TigerNeo JKM480N-60HL4-V (JK03M, Black Frame) OM Manual (EN) (59.7 MB)
-
Jinko Solar TigerNeo JKM480N-60HL4-V (JK03M, Black Frame) Manual (EN) (2.6 MB)
Be the first who will post an article to this item!
Add a comment
JinkoSolar Holding Co., Ltd. is a global leader in the solar industry with headquarters in Shanghai, China. The company was founded in 2006 and has been publicly traded since 2010. JinkoSolar specializes in the production of high-quality photovoltaic panels and related components. As a member of the prestigious Silicon Module Super League, JinkoSolar is committed to innovation and sustainability and offers solar solutions to utility, commercial, and residential customers across multiple countries. The company continues to focus on providing reliable and efficient solar solutions to its customers.
