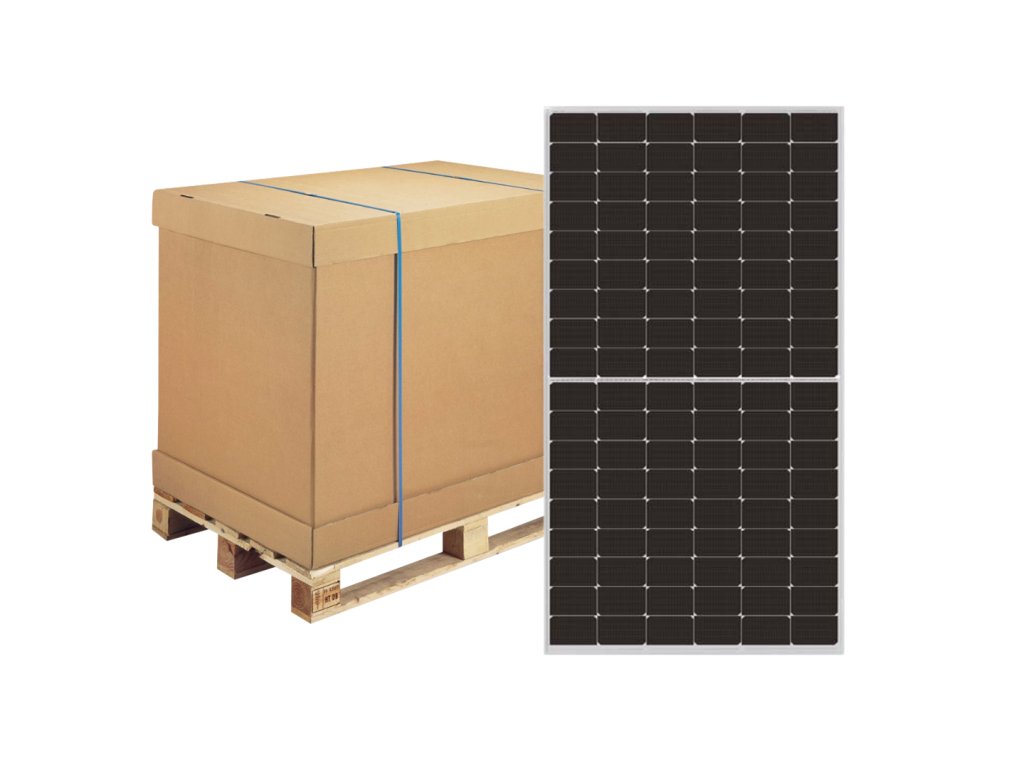

Jinko Solar TigerNeo JKM445N-54HL4R-V-BF (EVO2, Black frame)
Code: JKM445N-54HL4R-VProduct detailed description
SMBB technology
Improved light trapping and current draw to increase module performance and reliability.
PID immunity
Guarantee superior Anti-PID performance through optimized mass production process and materials control.
Resistance to extreme environmental conditions
High resistance to salt fog and ammonia.
Hot 2.0 technology
N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.
Increased mechanical load
Certified to withstand: wind load (4000 Pascals) and snow load (6000 Pascals).
LINEAR PERFORMANCE GUARANTEE
15-year product warranty
30-year linear performance warranty
0.40% annual degradation over 30 years
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015: quality management system
- ISO14001:2015: environmental management system
- ISO45001:2018: Occupational health and safety management systems
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22 kg |
| Lenght: | 1762 |
| Width: | 1134 |
| Height: | 30 |
| Power: | 445 W |
| Pallet: | 36 pcs |
| Container (40' HQ): | 936 pcs |
| Brand: | Jinko Solar |
| Cell: | N-Type Monocrystalline |
| Frame color: | Black |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Connector: | EVO2 |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 (2×54) |
| Maximálny výkon (Pmax): | 445 Wp |
| Maximálne napätie (Vmp): | 33.02 V |
| Maximálny napájací prúd (Imp): | 13.48 A |
| Napätie v otvorenom obvode (Voc): | 39.59 V |
| Skratový prúd (Isc): | 13.93 A |
| Účinnosť modulu STC (%): | 22.27% |
| Prevádzková teplota (℃): | -40℃~+85℃ |
| Maximálne napätie systému: | 1000/1500VDC (IEC) |
| Maximálna menovitá hodnota sériovej poistky: | 25A |
| Tolerancia výkonu: | 0~+3% |
| Teplotné koeficienty Pmax: | -0.29%/℃ |
| Teplotné koeficienty Voc: | -0.25%/℃ |
| Teplotné koeficienty Isc: | 0.045%/℃ |
| Nominálna prevádzková teplota článku (NOCT): | 45±2℃ |
Be the first who will post an article to this item!
JinkoSolar Holding Co., Ltd. is a global leader in the solar industry with headquarters in Shanghai, China. The company was founded in 2006 and has been publicly traded since 2010. JinkoSolar specializes in the production of high-quality photovoltaic panels and related components. As a member of the prestigious Silicon Module Super League, JinkoSolar is committed to innovation and sustainability and offers solar solutions to utility, commercial, and residential customers across multiple countries. The company continues to focus on providing reliable and efficient solar solutions to its customers.
