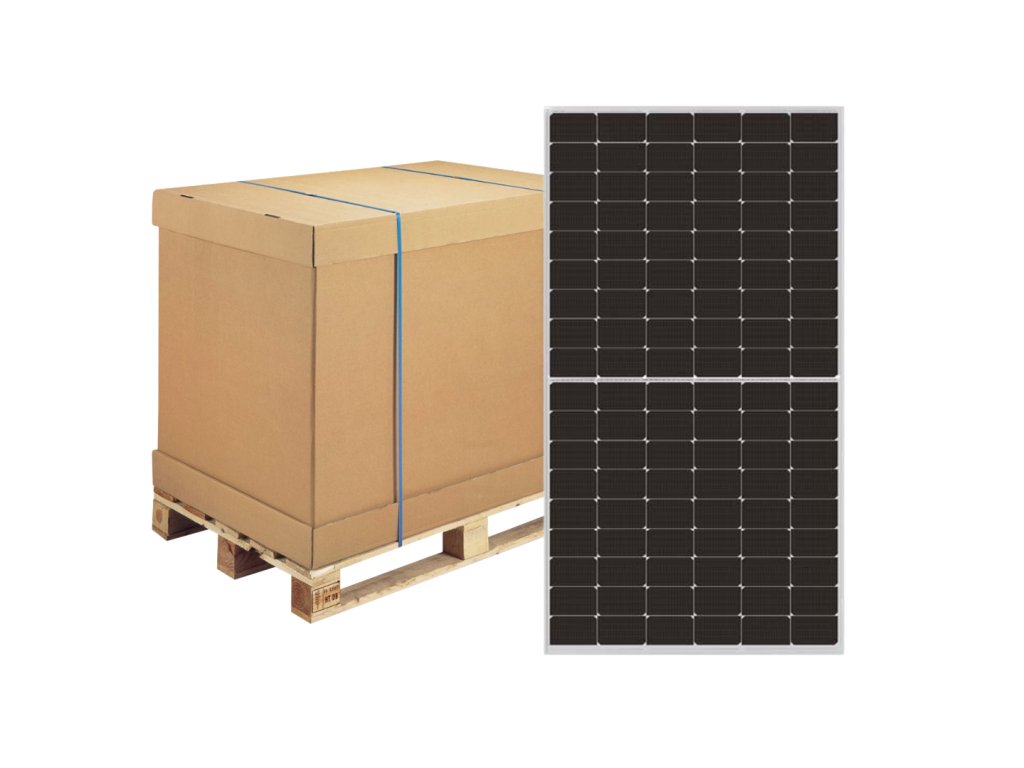

Jinko Solar TigerNeo JKM435N-54HL4R-V-BF (EVO2, Black frame)
Code: 1947Product detailed description
SMBB technology
Improved light trapping and current draw to increase module performance and reliability.
PID immunity
Guarantee superior Anti-PID performance through optimized mass production process and materials control.
Resistance to extreme environmental conditions
High resistance to salt fog and ammonia.
Hot 2.0 technology
N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.
Increased mechanical load
Certified to withstand: wind load (4000 Pascals) and snow load (6000 Pascals).
LINEAR PERFORMANCE GUARANTEE
15-year product warranty
30-year linear performance warranty
0.40% annual degradation over 30 years
Certifications
- IEC61215(2016), IEC61730(2016)
- ISO9001:2015: quality management system
- ISO14001:2015: environmental management system
- ISO45001:2018: Occupational health and safety management systems
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22 kg |
| Lenght: | 1762 |
| Width: | 1134 |
| Height: | 30 |
| Power: | 435 W |
| Pallet: | 36 pcs |
| Container (40' HQ): | 936 pcs |
| Brand: | Jinko Solar |
| Cell: | N-Type Monocrystalline |
| Frame color: | Black |
| J-Box: | IP68 Rated |
| Cable: | TUV 1×4.0mm2 (+): 400mm , (-): 200mm |
| Connector: | EVO2 |
| Front layer: | 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 (2×54) |
| Maximálny výkon (Pmax): | 435Wp |
| Maximálne napätie (Vmp): | 32.59V |
| Maximálny napájací prúd (Imp): | 13.35A |
| Napätie v otvorenom obvode (Voc): | 39.16V |
| Skratový prúd (Isc): | 13.80A |
| Účinnosť modulu STC (%): | 21.77% |
| Prevádzková teplota (℃): | -40℃~+85℃ |
| Maximálne napätie systému: | 1000/1500VDC (IEC) |
| Maximálna menovitá hodnota sériovej poistky: | 25A |
| Tolerancia výkonu: | 0~+3% |
| Teplotné koeficienty Pmax: | -0.29%/℃ |
| Teplotné koeficienty Voc: | -0.25%/℃ |
| Teplotné koeficienty Isc: | 0.045%/℃ |
| Nominálna prevádzková teplota článku (NOCT): | 45±2℃ |
