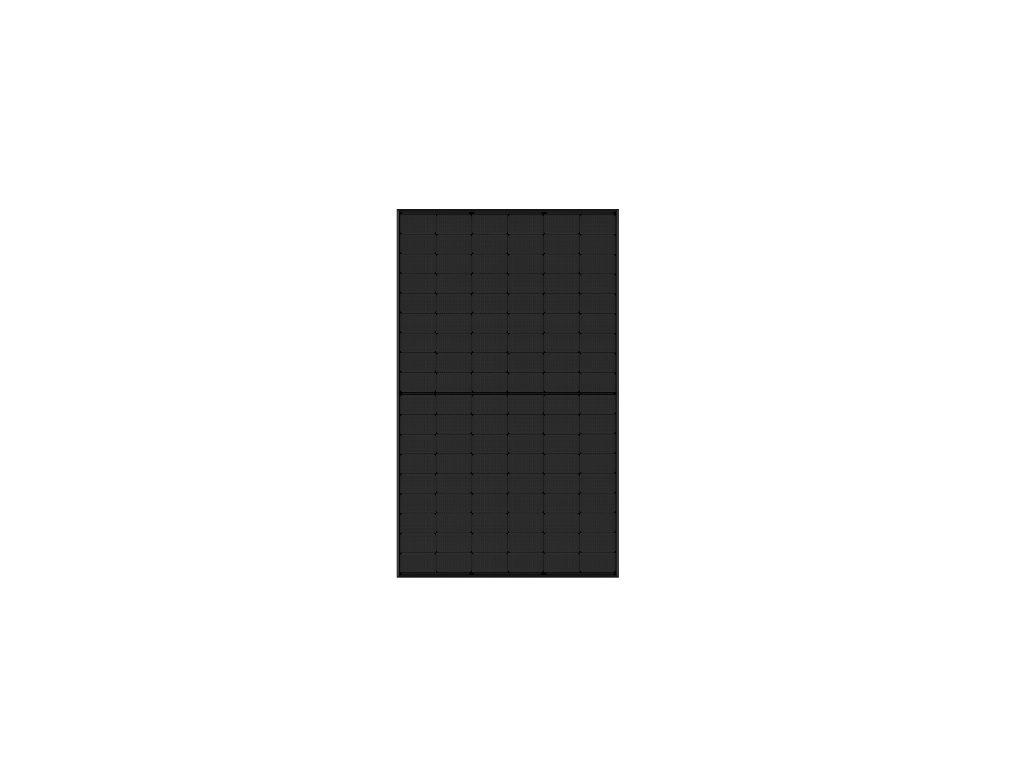

    Jinko Solar TigerNeo JKM435N-54HL4R-BDB (EVO2, Full-Black)

    Code: JKM435N-54HL4R-BDB
    Not rated
    FREEFREE
    Jinko Solar TigerNeo JKM435N-54HL4R-BDB (EVO2, Full-Black)
    €87,40 €104,88 incl. VAT
    In external warehouse
    Delivery to:
    13.12.2024

    The Jinko Solar TigerNeo is a solar panel that combines high efficiency and reliability with excellent resistance to harsh environmental conditions. It uses SMBB technology for more efficient light capture and improved current draw, which enhances the module's overall performance.

    Detailed information

    Product detailed description

    SMBB technology
    Improved light trapping and current draw to increase module performance and reliability.

    PID immunity
    Guarantee superior Anti-PID performance through optimized mass production process and materials control.

    Resistance to extreme environmental conditions
    High resistance to salt fog and ammonia.

    Hot 2.0 technology
    N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.

    Increased mechanical load
    Certified to withstand: wind load (4000 Pascals) and snow load (6000 Pascals).

    LINEAR PERFORMANCE GUARANTEE

    15-year product warranty
    30-year linear performance warranty
    0.40% annual degradation over 30 years

    Certifications

    • IEC61215(2016), IEC61730(2016)
    • ISO9001:2015: quality management system
    • ISO14001:2015: environmental management system
    • ISO45001:2018: Occupational health and safety management systems

    Additional parameters

    Category: Photovoltaic modules
    Weight: 24.5 kg
    Lenght: 1762
    Width: 1134
    Height: 30
    Power: 435 W
    Pallet: 37 pcs
    Container (40' HQ): 936 pcs, 962 pcs
    Brand: Jinko Solar
    Cell: N-Type Monocrystalline
    Panel color: All-black
    Frame color: Black
    J-Box: IP68 Rated
    Cable: TUV 1×4.0mm2 (+): 400mm , (-): 200mm
    Connector: EVO2
    Front layer: 2.0 mm, Anti-Reflection Coating
    Frame: Anodized aluminum alloy
    Cell arrangement: 108 (2×54)
    [Modules] Back layer: 2.0 mm, Heat Strengthened Glass
    Maximálny výkon (Pmax): 435 Wp
    Maximálne napätie (Vmp): 32.26 V
    Maximálny napájací prúd (Imp): 13.08 A
    Napätie v otvorenom obvode (Voc): 39.63 V
    Skratový prúd (Isc): 13.91 A
    Účinnosť modulu STC (%): 21.77%
    Prevádzková teplota (℃): -40℃~+85℃
    Maximálne napätie systému: 1500 VDC (IEC)
    Maximálna menovitá hodnota sériovej poistky: 30A
    Tolerancia výkonu: 0~+3%
    Teplotné koeficienty Pmax: -0.29%/℃
    Teplotné koeficienty Voc: -0.25%/℃
    Teplotné koeficienty Isc: 0.045%/℃
    Nominálna prevádzková teplota článku (NOCT): 45±2℃
    Bifacial Factor: 80±5%

    Be the first who will post an article to this item!

    Do not fill out this field:

    JinkoSolar Holding Co., Ltd. is a global leader in the solar industry with headquarters in Shanghai, China. The company was founded in 2006 and has been publicly traded since 2010. JinkoSolar specializes in the production of high-quality photovoltaic panels and related components. As a member of the prestigious Silicon Module Super League, JinkoSolar is committed to innovation and sustainability and offers solar solutions to utility, commercial, and residential customers across multiple countries. The company continues to focus on providing reliable and efficient solar solutions to its customers.
