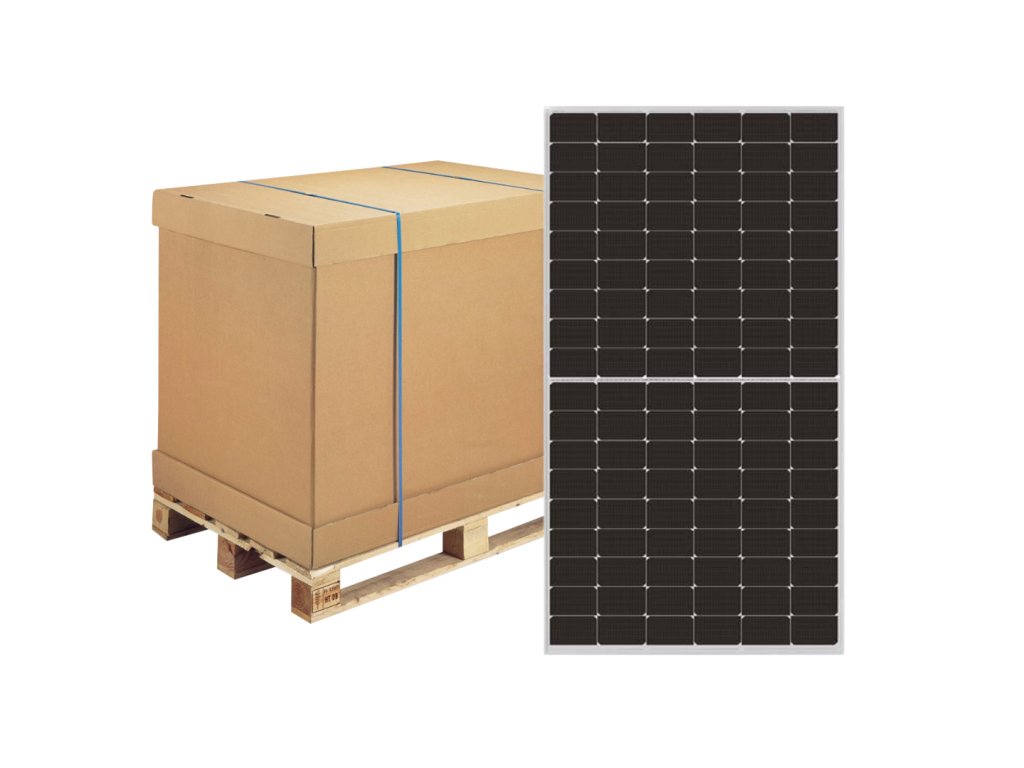

    Jinko Solar TigerNeo JKM425N-54HL4-V-BF (EVO2, Black frame)

    Code: 1946
    Not rated
    jinko
    €90,95 €109,14 incl. VAT
    In stock (5 days)
    Delivery to:
    02.12.2024

    The Jinko Solar TigerNeo is a solar panel that combines high efficiency and reliability with excellent resistance to harsh environmental conditions. It uses SMBB technology for more efficient light capture and improved current draw, which enhances the module's overall performance.

    Detailed information

    Product detailed description

    SMBB technology
    Improved light trapping and current draw to increase module performance and reliability.

    PID immunity
    Guarantee superior Anti-PID performance through optimized mass production process and materials control.

    Resistance to extreme environmental conditions
    High resistance to salt fog and ammonia.

    Hot 2.0 technology
    N-type module with Hot 2.0 technology has higher reliability and lower LID/LETID.

    Increased mechanical load
    Certified to withstand wind load (2400 Pascals) and snow load (5400 Pascals).

    LINEAR PERFORMANCE GUARANTEE

    15-year product warranty
    30-year linear performance warranty
    0.40% annual degradation over 30 years

    Certifications

    • IEC61215(2016), IEC61730(2016)
    • ISO9001:2015: quality management system
    • ISO14001:2015: environmental management system
    • ISO45001:2018: Occupational health and safety management systems

    Additional parameters

    Category: Photovoltaic modules
    Weight: 22 kg
    Lenght: 1722
    Width: 1134
    Height: 30
    Power: 425 W
    Pallet: 36 pcs
    Container (40' HQ): 936 pcs
    Brand: Jinko Solar
    Cell: N-Type Monocrystalline
    Frame color: Black
    J-Box: IP68 Rated
    Cable: TUV 1×4.0mm2 (+): 400mm , (-): 200mm
    Connector: EVO2
    Front layer: 3.2 mm, anti-reflective coating, high permeability, low iron content, tempered glass
    Frame: Anodized aluminum alloy
    Cell arrangement: 108 (6×18)
    Maximálny výkon (Pmax): 425Wp
    Maximálne napätie (Vmp): 31.70V
    Maximálny napájací prúd (Imp): 13.41A
    Napätie v otvorenom obvode (Voc): 38.30V
    Skratový prúd (Isc): 14.15A
    Účinnosť modulu STC (%): 21.76%
    Prevádzková teplota (℃): -40℃~+85℃
    Maximálne napätie systému: 1000/1500VDC (IEC)
    Maximálna menovitá hodnota sériovej poistky: 25A
    Tolerancia výkonu: 0~+3%
    Teplotné koeficienty Pmax: -0.29%/℃
    Teplotné koeficienty Voc: -0.25%/℃
    Teplotné koeficienty Isc: 0.045%/℃
    Nominálna prevádzková teplota článku (NOCT): 45±2℃
