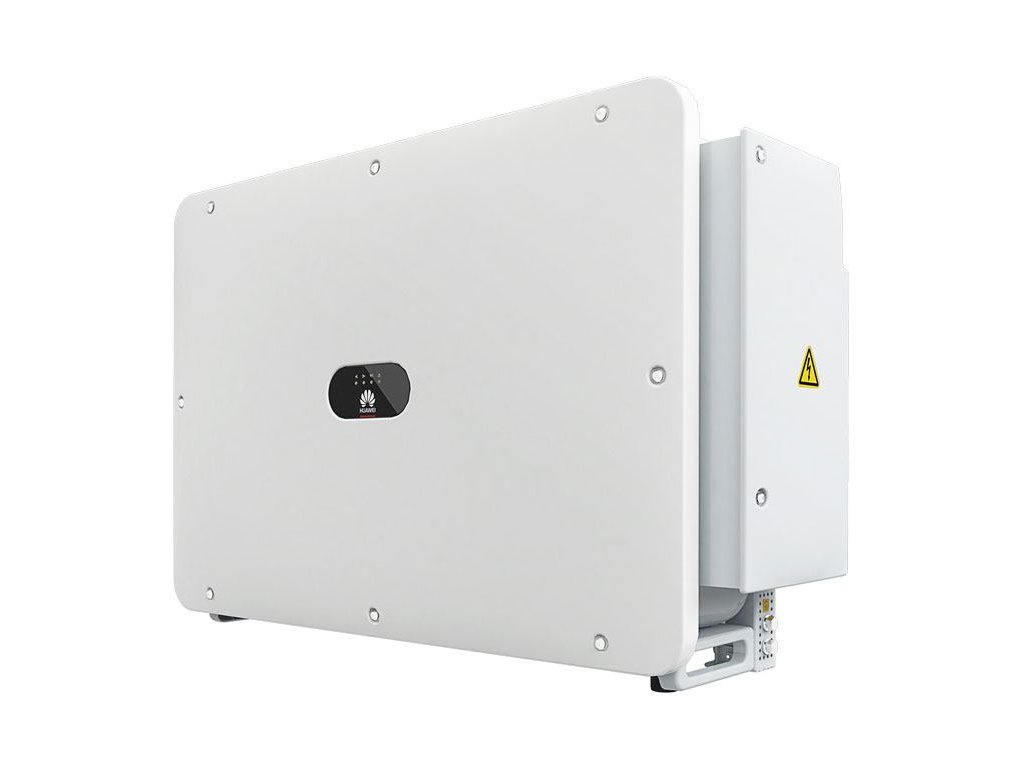

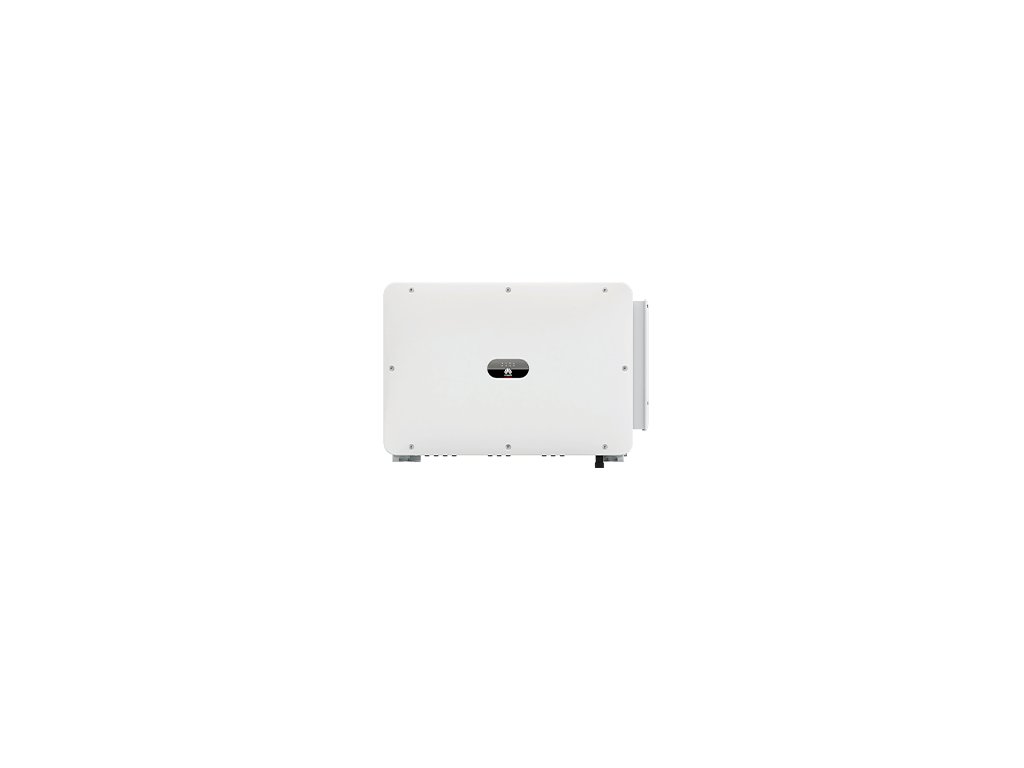

Huawei SUN2000-100KTL-M2
Code: SUN2000-100KTL-M2Product detailed description
Smart PV Controller Key Features
- Optimal BOS
- Higher Yields
- Smart O&M
- Safe and Reliable
- Grid Friendly
- 98.8% Max. Efficiency
- MBUS Supported
- 10 MPP Trackers
- Support AFCI & Smart String Level Disconnector
- String-level Management
- Smart I-V Curve Diagnosis Supported
- IP66 Protection
- Surge Arresters for DC & AC
Additional parameters
| Category: | On-grid inverters |
|---|---|
| Weight: | 93 kg |
| Degree of protection (IP): | IP66 |
| Number of MPPT: | 10 |
| Communication: | RS485, WLAN, USB, MBUS |
| Lenght: | 365 mm |
| Width: | 1035 mm |
| Height: | 700 mm |
| String: | Up to 2 per MPPT |
| Power: | 100 kW |
| Brand: | Huawei |
| Maximum Output Power: | 110 kW |
-
Huawei SUN2000-100KTL-M2 Datasheet (EN) (308.9 kB)
-
Huawei SUN2000-100KTL-M2 Datasheet (CZ) (330.7 kB)
-
Huawei SUN2000-100KTL-M2 User Manual (EN) (5.4 MB)
-
Huawei SUN2000-100KTL-M2 User Manual FusionSolar App (EN) (19.8 MB)
