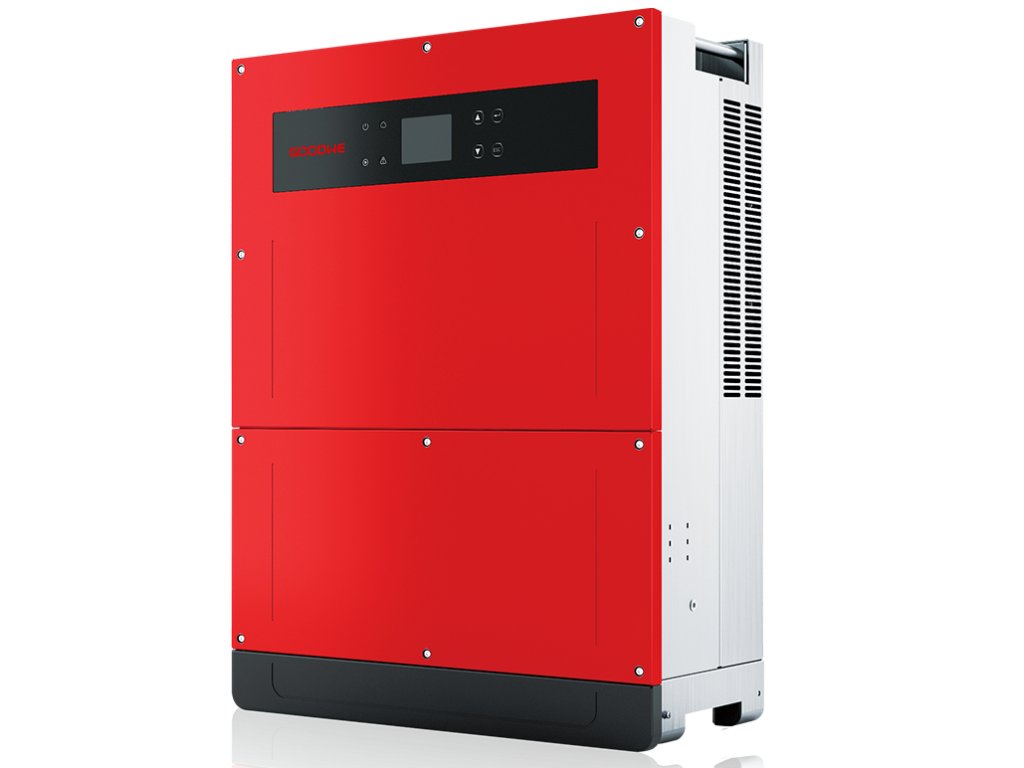

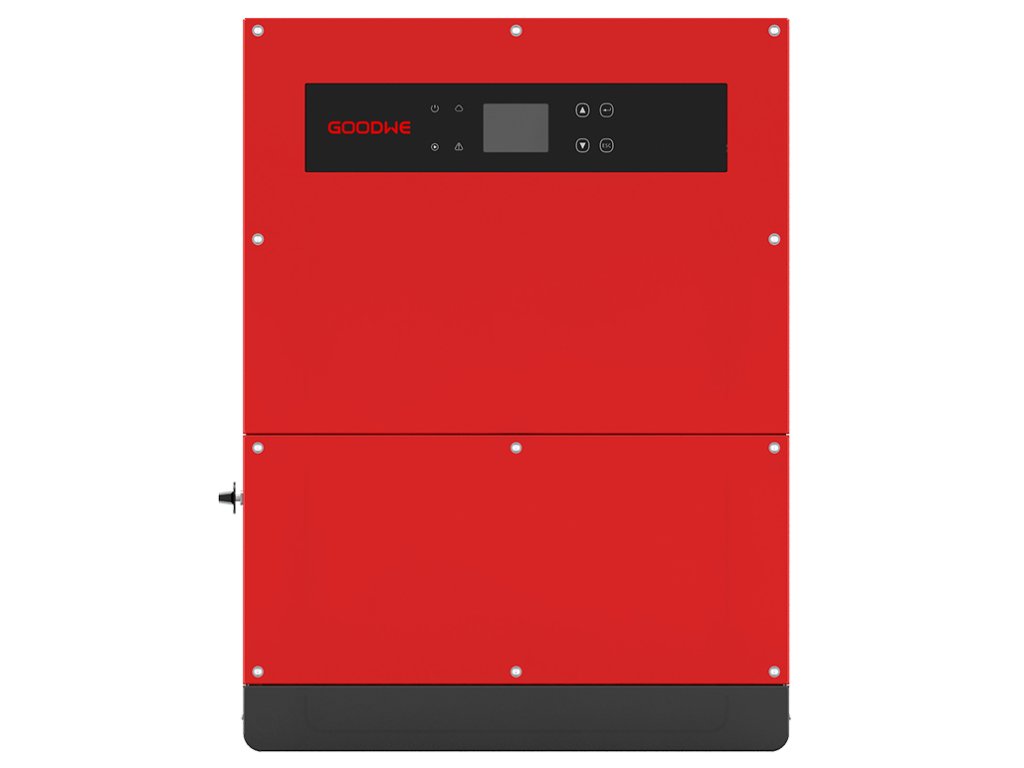

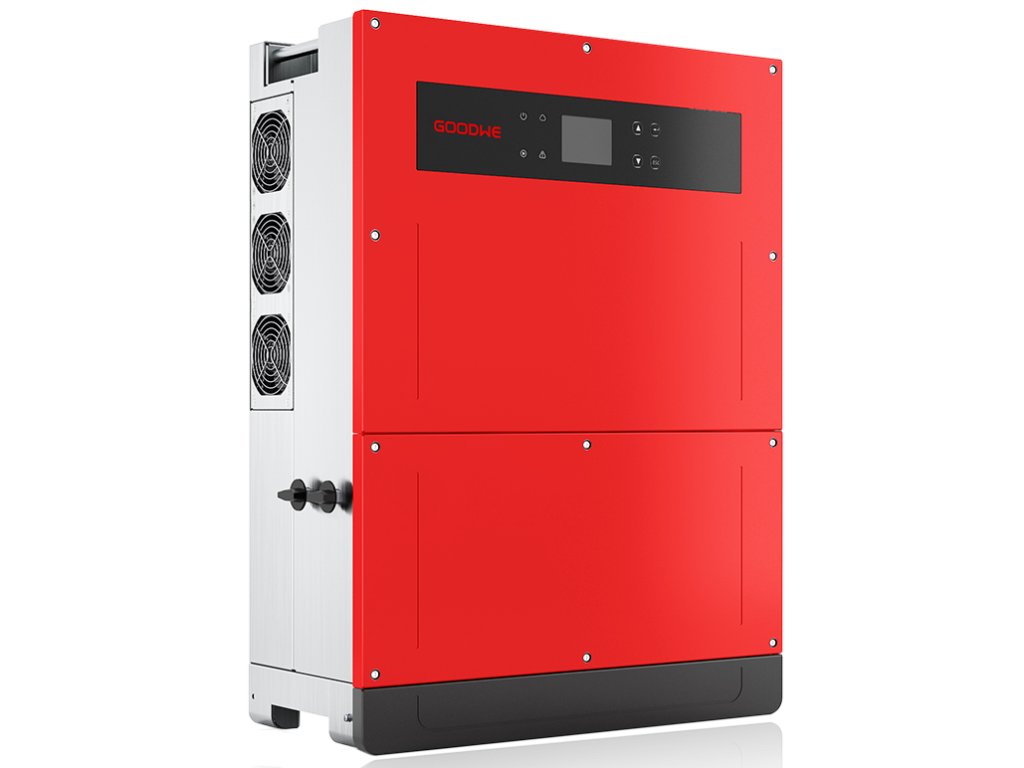

Goodwe GW80K-MT
Code: GW80KMTProduct detailed description
The GoodWe MT series inverter is designed for medium and large-scale commercial solar PV setups, emphasizing versatility and profitability. Featuring a compact design and power boost capability, the new-generation GoodWe MT series can deliver a 150% continuous maximum AC output power overload, ensuring a quicker return on investment. With a low start-up voltage of 200 V, surpassing other products, this inverter initiates operation earlier, resulting in increased power generation over time.
Enhance your energy yield by utilizing four Maximum Power Point (MPP) trackers, effectively minimizing output losses caused by partial shading and other mismatch effects.
Benefit from the MT inverter's 150% DC input oversizing capability, enabling users to substantially expand their solar arrays and boost power output, especially in conditions of low solar radiation.
Maximum Output - High Generation
Up to 150% DC input oversizing
Up to 115% AC output overloading
Up to 99% max. efficiency
Full-load running at 50ºC
Power line communication
String level monitoring
Additional parameters
| Category: | On-grid inverters |
|---|---|
| Weight: | 70 kg |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| ? Number of MPPT: | 4 |
| Communication: | RS485, Wi-Fi, PLC |
| Lenght: | 267 mm |
| Width: | 586 mm |
| Height: | 788 mm |
| String: | 4 Per MPPT, 3 per MPPT (Optional, Support bifacial module) |
| Power: | 80000 W |
| Brand: | Goodwe |
| Model series: | MT |
-
Goodwe GW80K-MT Datasheet EMEA (EN) (859.3 kB)
-
Goodwe GW80K-MT User Manual (EN) (12 MB)
-
Goodwe GW80K-MT Power Limit Solution for Grid-Tied PV Inverters (790.4 kB)
Be the first who will post an article to this item!
Goodwe is a Chinese company that manufactures photovoltaic voltage converters and batteries. Their products are designed for a variety of applications, including homes, commercial buildings or solar power plants. The company focuses on innovation and has its own research and development team. Goodwe has a presence in over 100 countries worldwide and offers various types of solutions for solar systems. Goodwe promotes sustainability and renewable energy and strives to help its customers reduce energy costs and carbon emissions.
