Goodwe GW17K-SDT-20 SDT G2 Plus+
Code: GW17K-SDT-20Product detailed description
SDT G2 PLUS+ Series

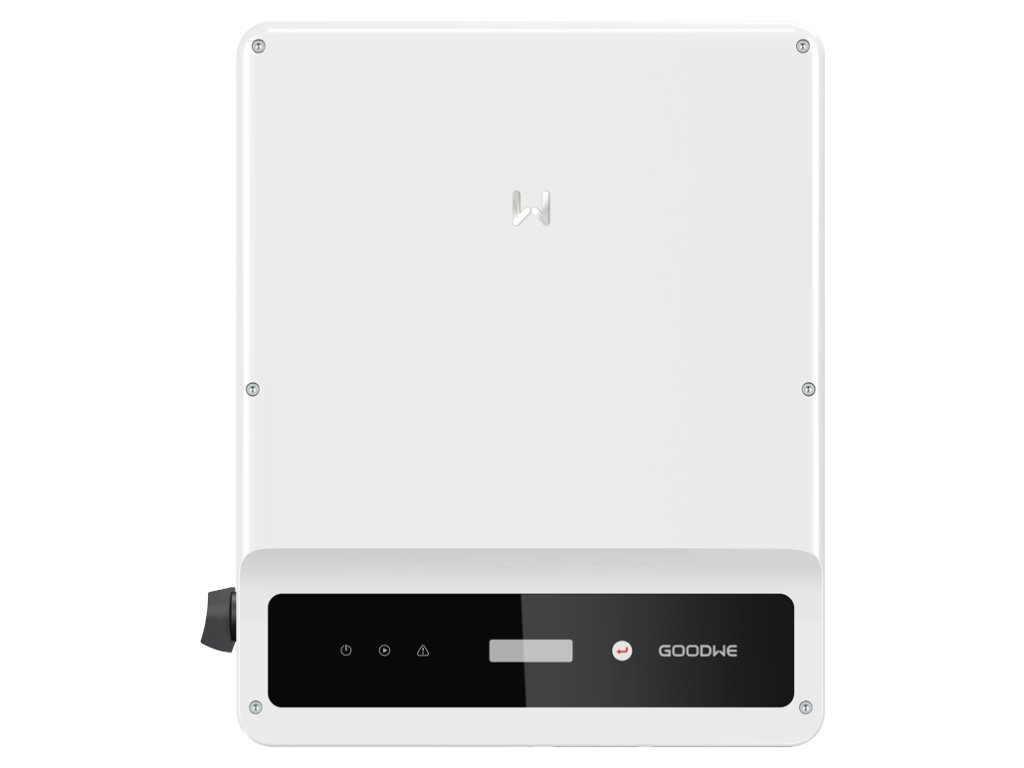

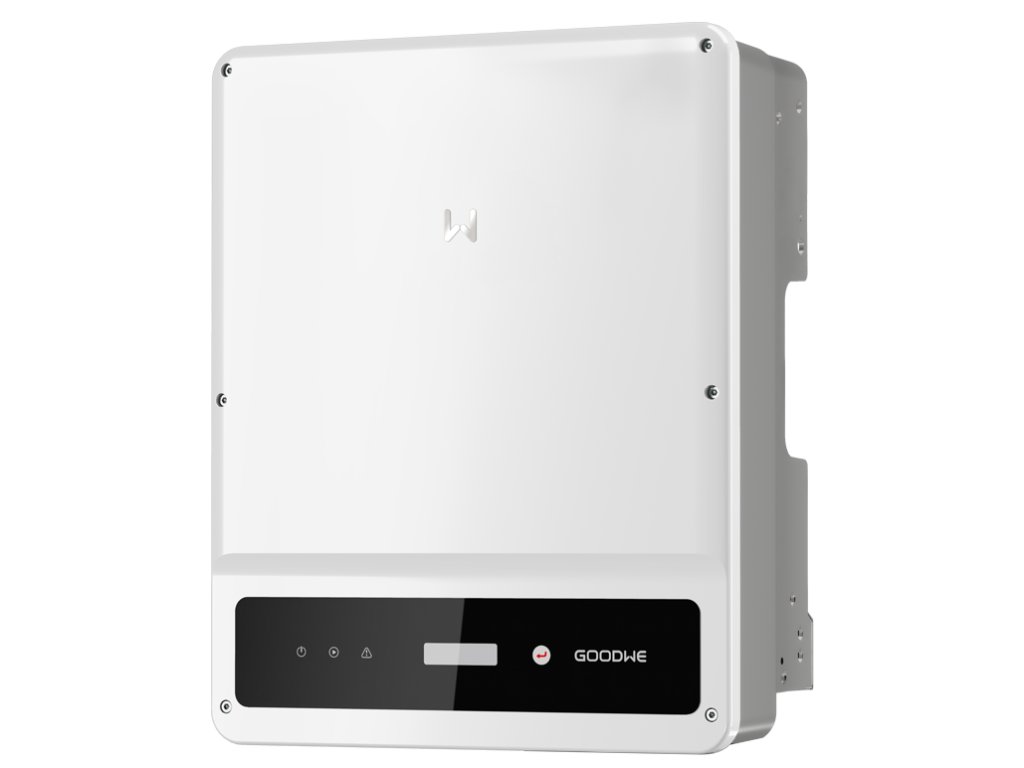

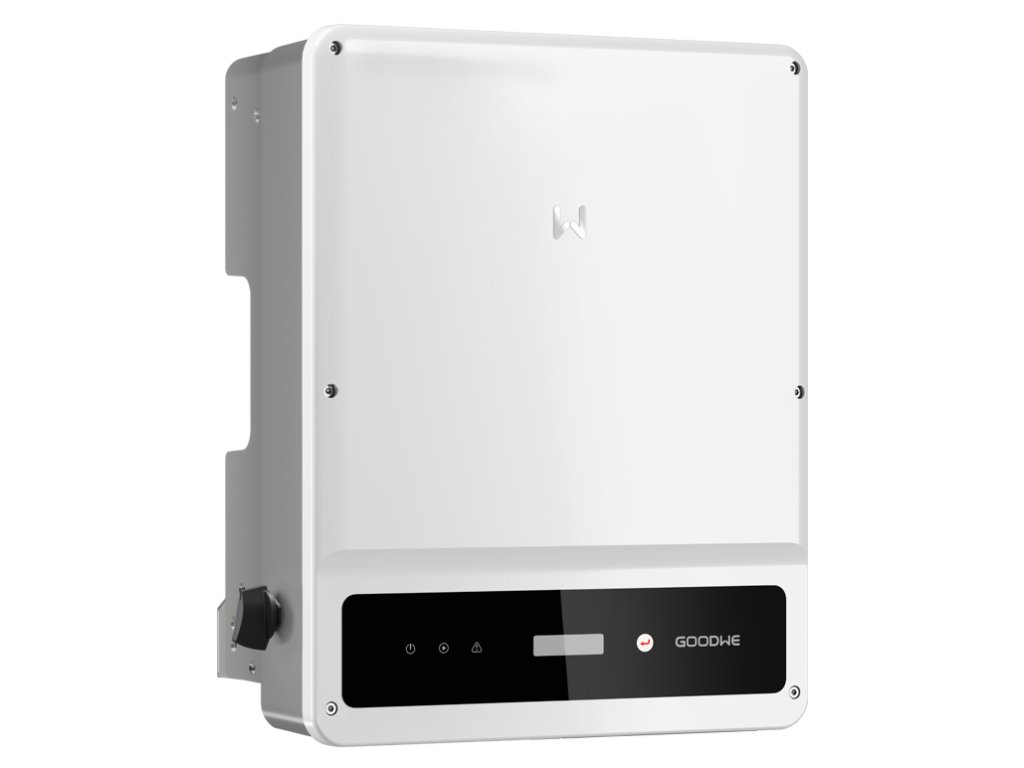

The GoodWe 4-20 kW SDT G2 PLUS+ series inverter is tailored for three-phase residential and small commercial projects. Its high efficiency ensures optimized power generation throughout the service cycle. The lightweight, easy-to-install design provides comfort and convenience for operators and installers. Users can achieve comprehensive smart control of energy management with 24-hour load consumption monitoring through GoodWe HK3000. This inverter is the ideal choice for maximizing energy yield in residential and small-scale commercial applications.
Superb Safety & Reliability
Smart Shadow Scan with adjustable scan interval
Multi-protocol compatibility for smart home integration
Optional exchangeable DC Type II SPD & SPD failure alarm
Optional Arc Fault Circuit Interrupter (AFCI) reducing risks of fire
Increased Power Generation
The SDT G2 PLUS+ Series can produce an extra 10% power beyond the nominal output, enhancing overall yield. Its high input current compatibility with high-power PV modules maximizes generation, while the low startup voltage extends the generation time from early morning to late evening.
Additional parameters
| Category: | On-grid inverters |
|---|---|
| Weight: | 26 kg |
| Number of phases: | 3 |
| Degree of protection (IP): | IP65 |
| ? Number of MPPT: | 2 |
| Communication: | RS485, Wi-Fi, LAN, 4G |
| Lenght: | 198 mm |
| Width: | 415 mm |
| Height: | 511 mm |
| Power: | 17000 W |
| Brand: | Goodwe |
| Model series: | SDT G2 PLUS+ |
| Type: | Network |
-
GW_SDT G2 PLUS+_Datasheet_EMEA-EN (673.8 kB)
-
User Manual-EN (12.1 MB)
-
Quick Installation Guide (10.4 MB)
Be the first who will post an article to this item!
Goodwe is a Chinese company that manufactures photovoltaic voltage converters and batteries. Their products are designed for a variety of applications, including homes, commercial buildings or solar power plants. The company focuses on innovation and has its own research and development team. Goodwe has a presence in over 100 countries worldwide and offers various types of solutions for solar systems. Goodwe promotes sustainability and renewable energy and strives to help its customers reduce energy costs and carbon emissions.
