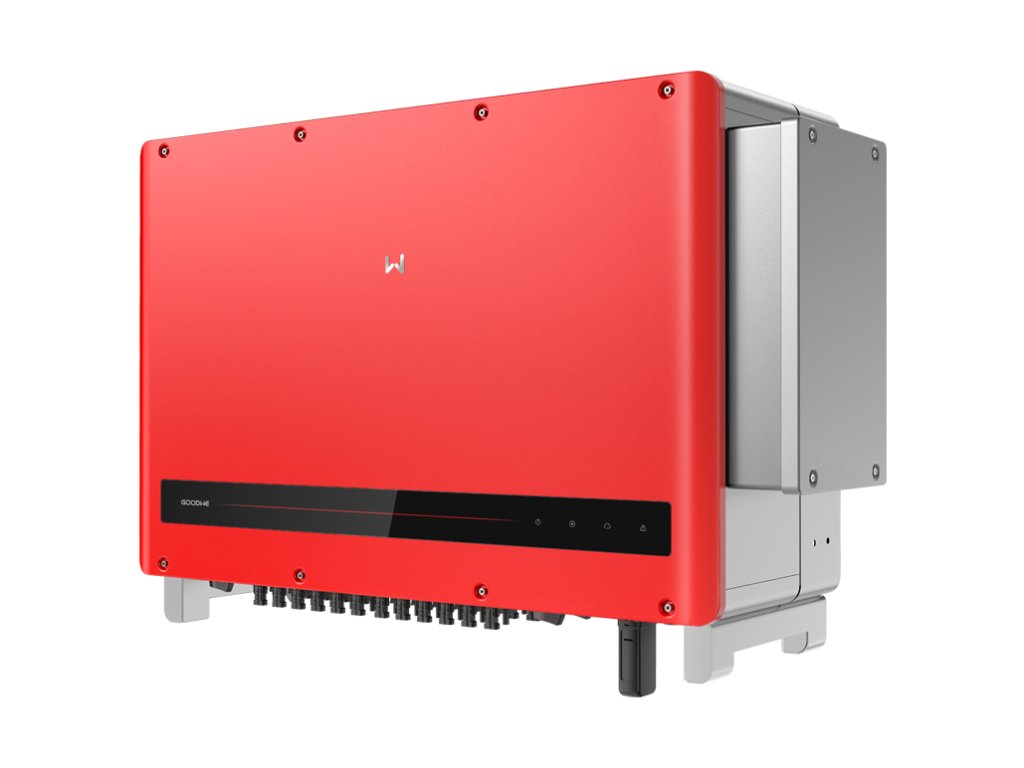

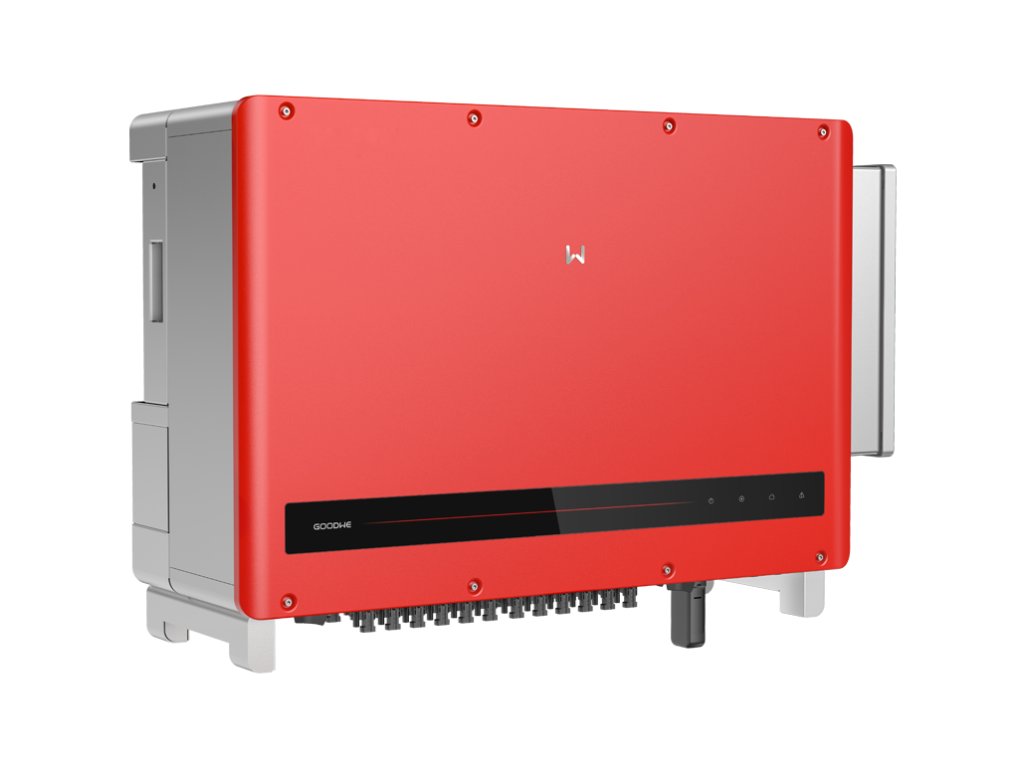

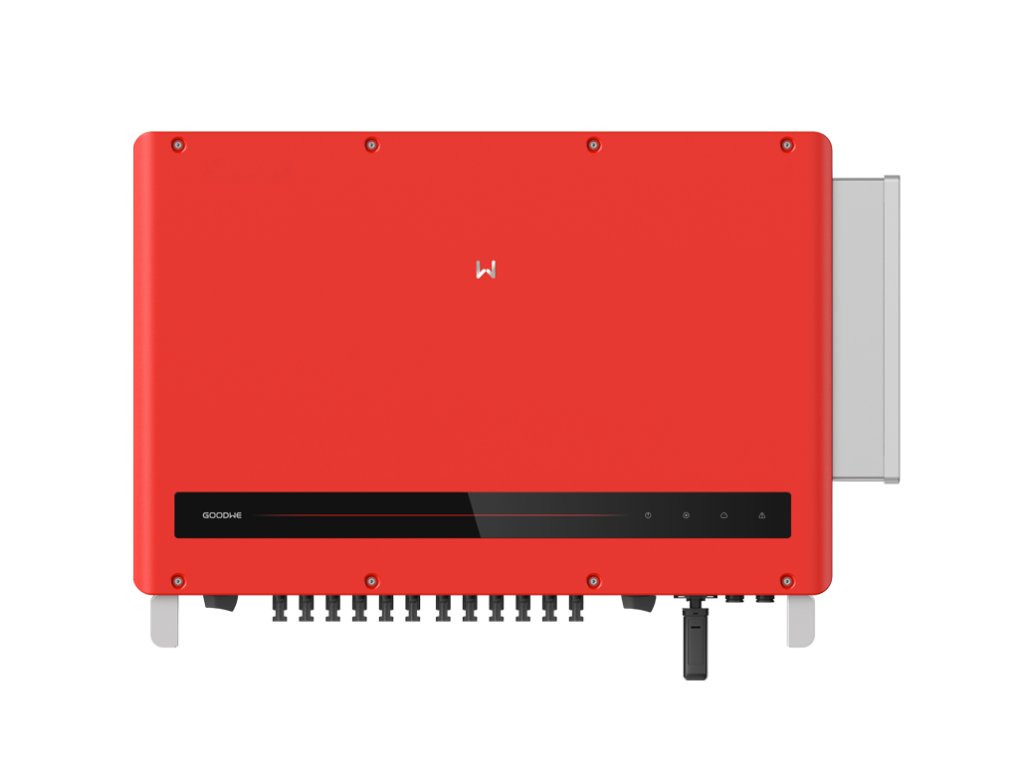

Goodwe GW120K-HT 1100V
Code: GW120K-HTProduct detailed description
Inverters with superior power density, combining compact design with high efficiency
Innovatively designed for large commercial/small utility PV systems, the HT series features compact and efficient inverters with remarkable power density. This design allows for a simplified system layout, reducing the need for numerous inverters. Enhancing profitability, the inverter is compatible with high-power modules, catering to specific DC current levels. Activate advanced features such as load monitoring and power export limits with GoodWe’s Smart Energy Controller SEC1000.
Maximised energy output
Optional AFCI function
IP66 and C5 corrosion protection
Optional integrated PLC technology
Maximised energy output
Up to 15A per string
Increasing the overall yield with high power PV modules Full power up to 45°C
10% additional power up to 45 °C ambient temperature
Additional parameters
| Category: | On-grid inverters |
|---|---|
| Weight: | 98.5 kg |
| Number of phases: | 3 |
| Degree of protection (IP): | IP66 |
| ? Number of MPPT: | 12 |
| Communication: | RS485, Wi-Fi, 4G |
| Lenght: | 343 mm |
| Width: | 1008 mm |
| Height: | 678 mm |
| String: | Up to 2 per MPPT |
| Power: | 120 kW |
| Brand: | Goodwe |
| Model series: | HT 1100V |
-
Goodwe GW120K-HT 1100V User Manual (EN) (11 MB)
-
Goodwe GW120K-HT 1100V EMEA Datasheet (EN) (794.8 kB)
-
Goodwe GW120K-HT 1100V Quick Installation Guide (EN) (11.2 MB)
Be the first who will post an article to this item!
Goodwe is a Chinese company that manufactures photovoltaic voltage converters and batteries. Their products are designed for a variety of applications, including homes, commercial buildings or solar power plants. The company focuses on innovation and has its own research and development team. Goodwe has a presence in over 100 countries worldwide and offers various types of solutions for solar systems. Goodwe promotes sustainability and renewable energy and strives to help its customers reduce energy costs and carbon emissions.
