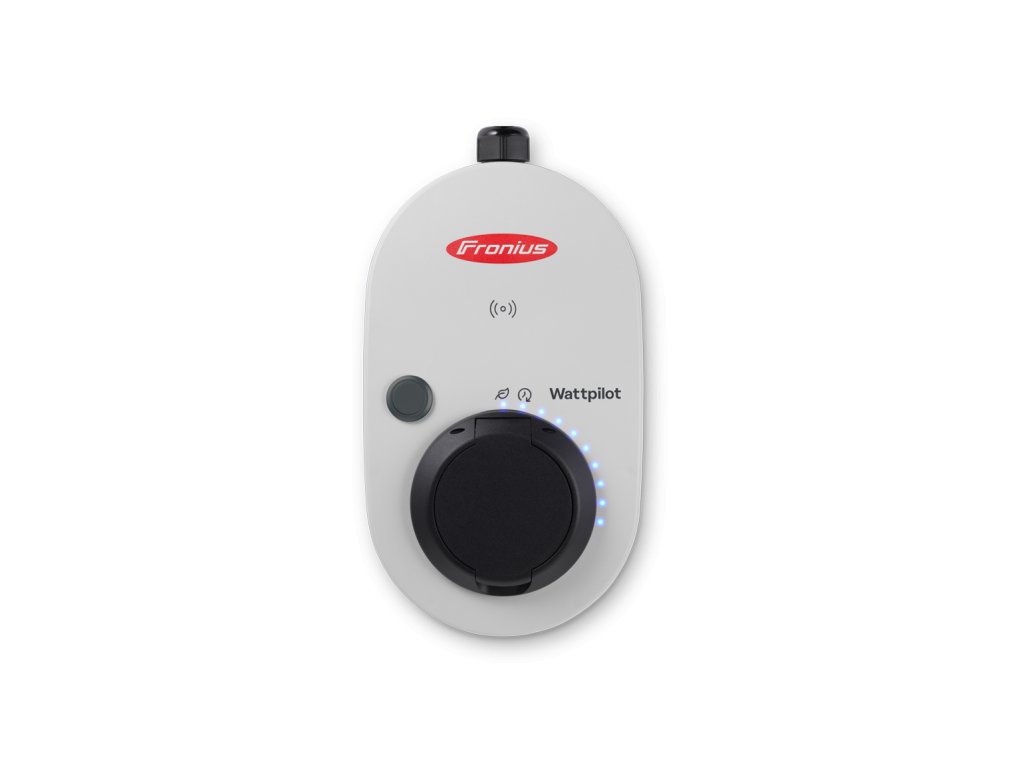

Fronius Wattpilot Go 22 J
Code: 1164Product detailed description
The Fronius Wattpilot is the electric car charger that always provides the cheapest charging. Not only can it be connected to your own photovoltaic system and charge your vehicle with your own solar energy - the Fronius Wattpilot always searches for and charges at the lowest price when used in combination with variable electricity tariffs.
The Fronius Wattpilot comes in two versions and power categories of 11 kW and 22 kW: Home - a mounted charger for use at home - and Go, a portable solution for on the go. The charger can be easily controlled via the Solar.wattpilot app, which also allows you to choose between Eco and Next Trip mode.
INPUT DATA
| Frequency (Input) | 50 Hz |
|---|---|
| Network types | TT / TN / IT |
| Network connection | CEE32 plug red 5-pole / 30 cm including neutral wire |
| Rated current (configurable) | 6–16A 1-phase or 3-phase |
| Charging socket | Infrastructure socket type 2 with mechanical lock |
| Residual current device | 20 mA AC, 6 mA DC |
| Input cable cross-section | 2.5 mm² |
| Maximum charging power | 22 kW |
GENERAL DATA
| Dimensions / (width) | 155 mm |
|---|---|
| Dimensions (height) | 287 mm |
| Dimensions (depth) | 109 mm |
| Weight | 1.63 kg |
| Weight with packaging | 2.82 kg |
| Protection class | IP 55 |
| Installation | Indoor or outdoor 1) |
| Ambient temperature range | -25 °C to +40 °C (without direct sunlight) |
| Humidity | 5 % - 95% |
| Maximum altitude | 2000 m |
| Impact resistance | IK08 |
| Photovoltaic optimization | Dynamic charging with excess photovoltaic energy 1.38-11 kW (automatic switching 1 phase / 3 phases) |
| Network connection | WLAN 2) |
| Installation type | Vertical suspension |
| Average ambient temperature in 24 hours | Max. 35 °C |
| Communication protocols | OCPP 1.6 J |
| Optional adapters (can be ordered separately) | CEE32 red protected, camping plug CEE blue, protected plug 16A |
1) When installed outdoors, the Wattpilot must not be exposed to direct sunlight.
2) The Fronius Wattpilot supports the WLAN standards 802.11 b/g/n in the 2.4 GHz band with WEP, WPA, WPA2 and WPA3 protocols.
Additional parameters
| Category: | Portable EV chargers |
|---|---|
| Weight: | 3 kg |
| Brand: | Fronius |
