This version of the inverter does not include a network card for internet connection
If you are interested in internet connectivity, you can purchase a network card additionally.

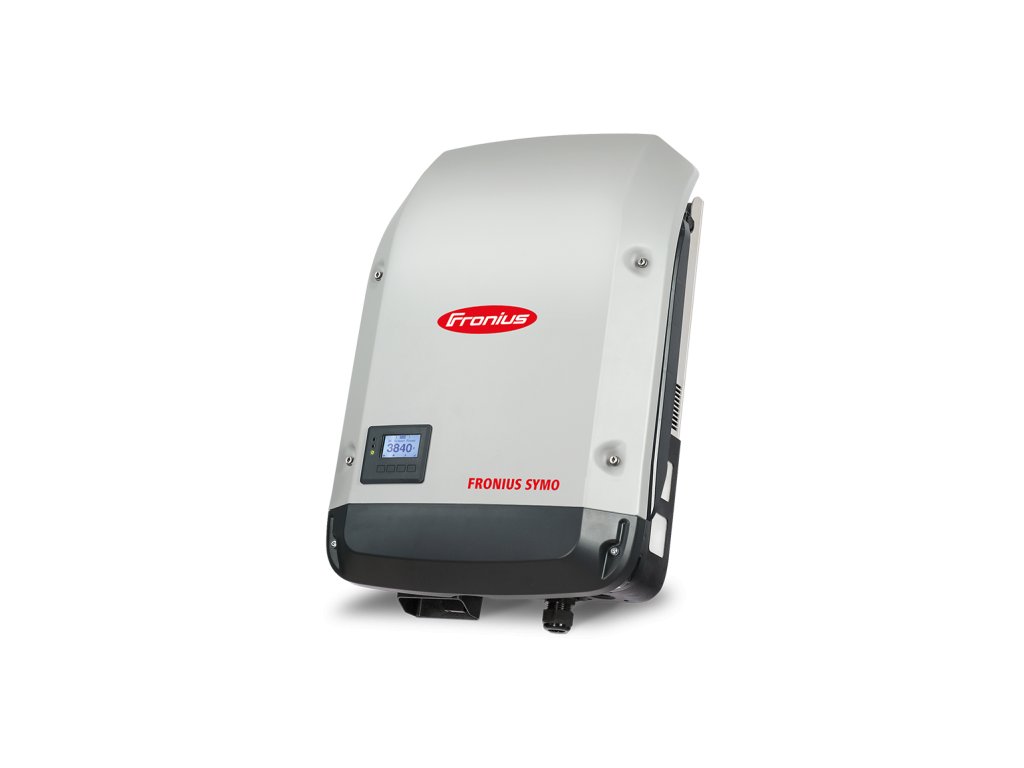

Fronius Symo 7.0-3-M LIGHT
Code: 1128Related products
Product detailed description
With a range of power classes from 3.0 to 20.0 kW, the three-phase transformerless Fronius Symo inverter is suitable for systems of all sizes. Thanks to SuperFlex Design technology, the Fronius Symo inverter is the optimal solution for sloping or differently oriented roofs. Thanks to the serial connection to the Internet via WLAN or Ethernet and the easy integration of third-party components, the Fronius Symo is one of the most communicative inverters on the market. The meter interface also enables dynamic control of energy supply to the grid and a clear visualization of consumption.
INPUT DATA
| Number of MPP trackers | 2 |
|---|---|
|
Maximum input current (Idc max)
|
16 / 16 A |
| Max. short circuit current of the panel array | 24 / 24 A |
|
DC input voltage range (Udc min - Udc max)
|
150 - 1000 V |
|
Starting supply voltage (Udc start)
|
200 V |
|
Nominal input voltage (Udc,r)
|
595 V |
|
MPP voltage range (Umpp min - Umpp max)
|
228 - 800 V |
| MPP Useful voltage range | 150 - 800 V |
| Number of DC connections | 2 + 2 |
|
Maximum power of the photovoltaic system generator (Pdc max)
|
14 kWpeak |
OUTPUT DATA
|
Nominal power AC (Pac,r)
|
7000 W |
|---|---|
|
Maximum output power (Pac max)
|
7000 VA |
|
AC output current (Iac nom)
|
10.1 A |
|
Mains connection (Uac,r)
|
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax)
|
150 - 280 V |
|
Frequency (fr)
|
50 / 60 Hz |
|
Frequency range (fmin - fmax)
|
45 - 65 Hz |
| Distortion factor | < 3 % |
|
Efficiency (cos φac,r)
|
0.85 - 1 ind,/cap, |
GENERAL DATA
|
Dimensions (width)
|
431 mm |
|---|---|
|
Dimensions (height)
|
645 mm |
|
Dimensions (depth)
|
204 mm |
| Weight | 21.9 kg |
| Coverage | IP 65 |
| Protection class | 1 |
|
Overvoltage category (DC/AC) 1)
|
2 / 3 |
| Night consumption | < 1 W |
| Inverter concept | Transformerless |
| Cooling | Controlled air cooling |
| Mounting | Indoor and outdoor installation |
| Ambient temperature range | -25°C - +60°C |
| Permissible humidity | 0 - 100 % |
|
Maximum altitude2)
|
2,000 m / 3,400 m |
| DC connection technology | 4x screw terminals DC+ and 4x DC- 2.5 - 16 mm² (16 mm² cross-section without insulating sleeves) |
| AC connection technology | 5 screw terminals AC pole 2.5 - 16 mm² (With a cross section of 16 mm² without insulating sleeves) |
| Certification and standards | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
EFFICIENCY
| Maximum efficiency (PV - grid) | 98% |
|---|---|
| Euro efficiency (ηEU) | 97.6% |
|
η at 5% Pac,r 3)
|
88.7 / 93.1 / 89.0% |
|
η at 10% Pac,r 3)
|
92.0 / 95.9 / 94.7% |
|
η at 20% Pac,r 3)
|
94.5 / 97.3 / 96.3% |
|
η at 25% Pac,r 3)
|
95.1 / 97.6 / 96.7% |
|
η at 30% Pac,r 3)
|
95.4 / 97.7 / 97.0% |
|
η at 50% Pac,r 3)
|
95.9 / 98.0 / 97.5% |
|
η at 75% Pac,r 3)
|
95.9 / 98.0 / 97.6% |
|
η at 100% Pac,r 3)
|
95.8 / 97.9 / 97.5 % |
| MPP Adaptation Efficiency | > 99.9% |
SAFETY EQUIPMENT
| DC insulation measurement | Yes |
|---|---|
| Overload behavior | Operating point shift, power limitation |
| DC disconnector | Yes |
| DC polarity reversal protection | Yes |
INTERFACE
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| 6 inputs and 4 digital inputs/outputs | Connection to a mass remote control receiver |
|
USB (type A socket) 4)
|
Datalogging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4)
|
Fronius Solar Net |
|
Signal output 4)
|
Energy management (voltage-free relay output) |
| Datalogger and web server | Integrated |
|
External input 4)
|
Connection to S0 meter / evaluation of surge protection |
| RS485 | Modbus RTU SunSpec or connection to electricity meter |
SNAPINVERTER TECHNOLOGY
The new generation of SnapINverter inverters is characterized by a simple mounting system, which makes installation and maintenance easier than ever before. A special design feature of these devices is the separation of the connection and power parts. Each is installed separately. The extremely lightweight connection part, including all cables, is first mounted on the wall. Then the power part is mounted. The innovative rotation concept allows the user to install and service extremely conveniently. The inverter is simply hung in the wall bracket and then secured. In the event of service intervention, it is therefore not necessary to dismantle the entire inverter, but only its power part. All cabling remains intact.
INTEGRATED DATA COMMUNICATION
We are the first inverter manufacturer to offer a data communication package with fully integrated data logging, WLAN and Ethernet technologies , energy management, web server and many interfaces. This allows the inverter to be connected to the Internet via network cable or WLAN (without additional cables) and provides an optimal overview of the operation of the photovoltaic system. Interfaces such as Modbus TCP SunSpec, Modbus RTU ensure connection to third-party components SunSpec or Fronius Solar API (JSON). In addition, open interfaces can be used in parallel to access the Fronius Solar.web software.
SUPERFLEX DESIGN
Fronius SuperFlex Design technology offers a sophisticated combination of technical parameters that now allow you to set up your photovoltaic systems much more flexibly and easily. The most important performance factors of SuperFlex Design technology are: Two MPP trackers in combination with a high system voltage and a wide DC input voltage range. In addition to This means that each DC input, and therefore each MPP tracker, can receive the full rated power of the inverter at any time. With different roof orientations, shading can be used with one or two branches or with the remaining panels.DYNAMIC PEAK MANAGER
The Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts the behavior to find the optimal operating point. The special feature is that the Dynamic Peak Manager algorithm automatically periodically it checks the entire characteristic and therefore can find the global maximum power point (GMPP) even in partial shading.SMART GRID READY
Fronius inverters are ready for the Smart Grid technology of the future. The inverters are perfectly equipped for future requirements in the field of grid technology. The devices are equipped with a number of intelligent functions, so-called advanced grid functions. These are various control functions for the optimal supply of reactive and active power to the grid. The aim of these functions is to enable safe grid operation even with very high densities of photovoltaic cells. And also to prevent unwanted interruptions in the power supply due to exceeding the grid parameter limits and the associated loss of profit. With Fronius inverters, the yield of the photovoltaic system is therefore optimally secured. In addition, Fronius inverters can also be used to dynamically regulate the power supply to the grid taking into account self-consumption in the event of supply restrictions. Just connect the electricity meter and set the supply limit.ZERO FEEDING
Electricity grid operators in many countries are increasingly demanding the ability to limit the feed-in of photovoltaic energy to the grid as a condition for grid connection. With dynamic power limiting, Fronius offers a solution for optimally managing the feed-in of energy to the grid. Inverter first supplies household appliances. It then limits the power to the maximum power consumption permitted by the grid operator. With Fronius inverters, this function also makes zero-feed possible. No current is therefore fed into the grid and the grid operator's requirements can be met by simply setting it in the inverter's web interface.ACTIVE COOLING
Active cooling technology uses one or more fans to prevent local overheating and at the same time regulate the air circulation inside the inverter. This keeps the power supply temperature low. electronics, noo leads to a longer service life of the device, optimal yield and lower costs. At Fronius, active cooling is the technological standard for all devices.NOTE ON TECHNICAL DATA
1) According to IEC 62109-1.
2) Unrestricted/restricted voltage range.
3) And at Umpp min/Udc,r/Umpp max.
4) Also available in a lightweight version.
Additional parameters
| Category: | Fronius Symo |
|---|---|
| Number of phases: | 3 |
| Number of MPPT: | 2 |
| String: | 2+2 |
| Power: | 7000 W |
| Brand: | Fronius |
| Voltage converters - Fronius - Model series: | Fronius Symo |
| Voltage converters - Fronius - Version: | LIGHT |
| Type: | Network |
-
