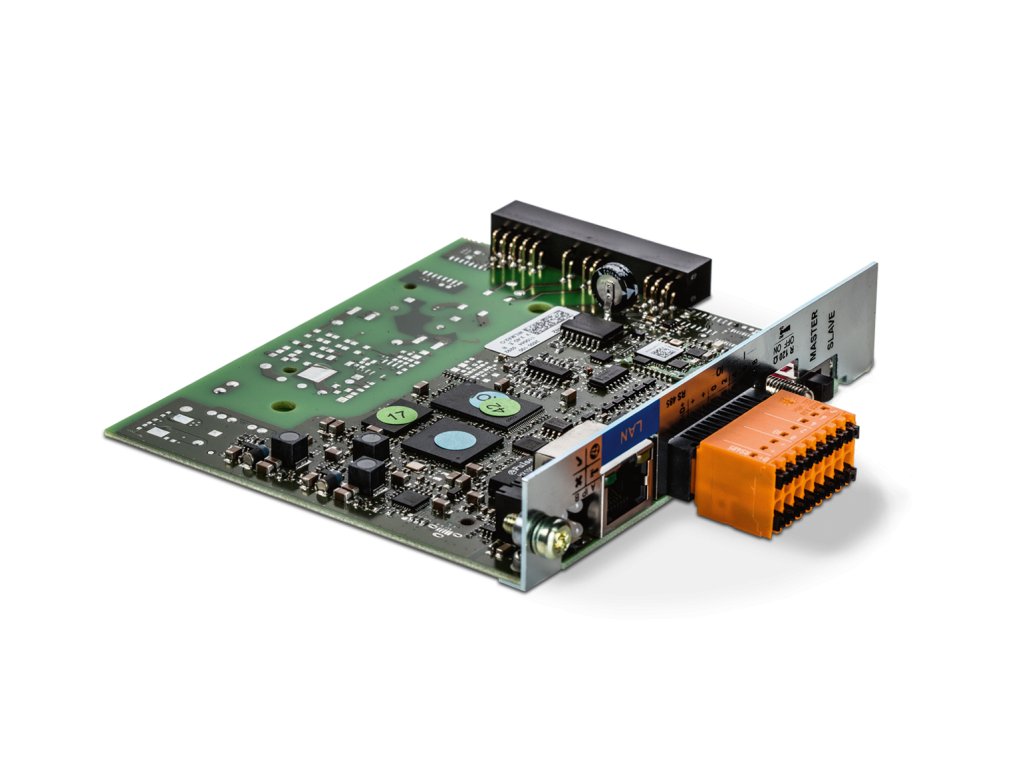

Fronius Datamanager card 2.0
Code: 4-240-038-ZRelated products
Product detailed description
This module enables the so-called LIGHT version to be expanded to a full (WLAN) version with internet connection.
The Fronius Datamanager card is the communication hub for Fronius inverters for various applications. Using the internet connection within the LAN or WLAN network, the Fronius Datamanager card sends the values of the photovoltaic systems directly to the online portal Fronius Solar.web so that you always have an overview of the system's operation. The Fronius Datamanager card can therefore connect the inverters to the internet directly via WLAN. In addition, optimal system monitoring and configuration of the Datamanager card is possible via its own website within the integrated web server in the Fronius Datamanager card. Thanks to the integrated Modbus RTU SunSpec, Modbus TCP SunSpec and Fronius Solar API (JSON, for current values), Fronius inverters can be easily connected to the Fronius Solar.web web portal and, in parallel, to systems from other manufacturers.
GENERAL DATA
|
Dimensions (length)
|
22 mm |
|---|---|
|
Dimensions (width)
|
103 mm |
|
Dimensions (height)
|
132 mm |
| Weight | 0.55 kg |
| Battery capacity | max. 4096 days |
| Supply voltage | Power supply 12 V DC via inverter |
| Energy consumption | < 2.0 W |
| Operating temperature range | -20°C - +65°C |
INTERFACE
| Ethernet (RJ45 socket) | LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| RS422 (RJ45 socket) | - |
| RS422 (RJ45 socket) | Fronius Solar.Net IN |
| WLAN | Wireless standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Connection to a mass remote control receiver |
| 4 digital inputs/outputs | Connection to a mass remote control receiver, control loads |
| RS485 | Modbus RTU SunSpec or meter connection |
Additional parameters
| Category: | Wi-FiInverters Fronius |
|---|---|
| Weight: | 0.55 kg |
| Brand: | Fronius |
