    DUOSIDA Power cable TYPE 2 | 16A | 3-phase | 5M | Straight

    Code: 1959-ZEL-5M 1959-ORA-5M Choose variant
    Not rated
    Brand: Duosida
    T2 T2 (3)
    €149,17 €179 incl. VAT
    In stock (2 pcs) In stock (5 pcs) Choose variant
    Farba
    Dĺžka
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    26.11.2024 26.11.2024 Choose variant

    Nabíjací kábel Duosida je určený pre všetky vozidlá s konektorom typu 2, s maximálnym nabíjacím výkonom 16,6 kW a rozsahom teplôt od -30 °C do 50 °C. S dĺžkou 5 metrov a odolnosťou voči extrémnym podmienkam je ideálnou voľbou pre rýchle a efektívne nabíjanie. Kábel je vybavený dvoma konektormi Mennekes a je kompatibilný s nabíjacími stanicami s režimom 3

    Detailed information

    Product detailed description

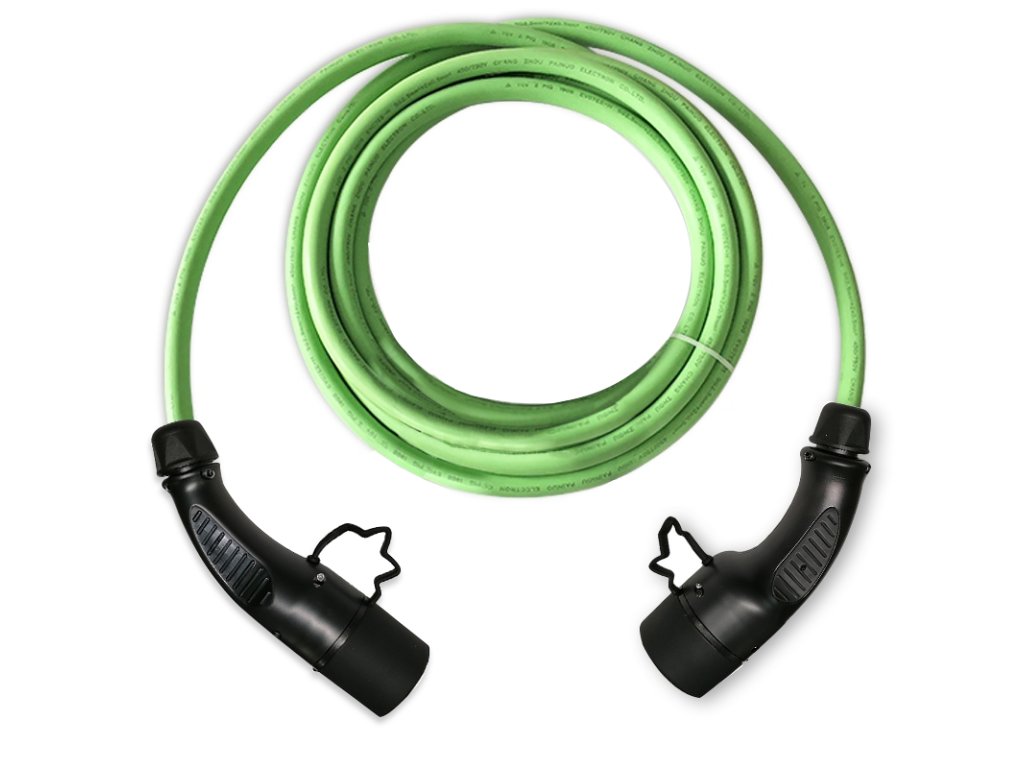

    DUOSIDA charging cable TYPE 2

    Duosida 16A charging cable Type 2 is designed for mode 3 charging, i.e. all charging from private and public AC stations. Both connectors are ergonomically shaped and the grip part is made of soft plastic, ensuring easy and comfortable handling and plugging in. While plugged in, the cord is protected against particle and water ingress. The protective caps have a higher protection rating of IP54 and allow protection against the ingress of dust.

    The connectors of the charging cable are made of solid thermoplastic, which is flame retardant and is scratch, pressure and impact resistant. The outer sheath of the cable is made of thermoplastic polyurethane (TPE-U), whose important properties include flexibility, long life and resistance to scratches and wear. Thanks to the high-quality materials, the cables can withstand more than 10,000 wiring cycles.

    Thanks to the IEC 62196 communication protocol, the cable enables efficient communication between the on-board charger and the charging station.

    When handling the cable, care should be taken to use protective caps whenever the cable is not plugged in, as they significantly increase its service life. When you have finished using the cable, it must be properly untangled. The cable should then be placed in the bag. This significantly (!) increases its lifespan.

    DUOSIDA Napájací kábel TYPE 2 | 16A | 3-fázový | 5M | Rovný
    DUOSIDA Napájací kábel TYPE 2 | 16A | 3-fázový | 5M | Rovný

    Technical Specifications

    • Connectors 2 (mennekes)
    • Mode 3 cable for connection to charging stations
    • Maximum current: 20A
    • Maximum voltage: 250-400V
    • Maximum charging power: 16.6 kW (3 phases)
    • Operating temperature range: -30°C to 50°C
    • Cable length: 5 m
    • Color: black with white elements

    Safety and Certificates

    All adapters are tested to ensure their safety. When plugged in, the certified protection is IP44, the certified protection when using a protective cover is IP54. The connectors meet IEC 62196-2 and SAE J1772 standards.

    The cable is backed by a standard 24-month warranty.

    If you are hesitant about whether this charging cable connector is suitable for your car, you can go to our electric car database to find your model and its connector type, or you can contact us at any time.

    You can also find an article in the electric car basics section about what types of connectors exist and what features they have.

    Additional parameters

    Category: Charging cables
    Cable length: 5 m
    Connector: Type 2
    Brand: Duosida
    Maximum voltage: 250-400V
    Operating temperature range: -30 ° C to 50 ° C
    Cable type: Mode 3
