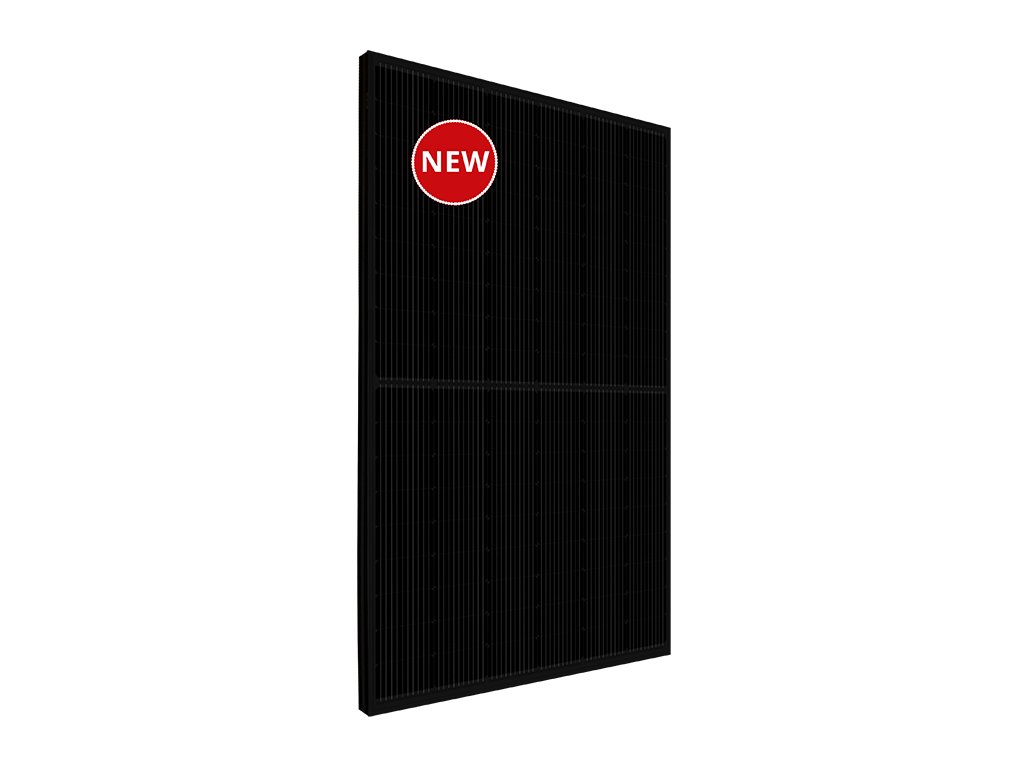

Canadian Solar TOPHiKu6 N-type CS6R-435T (MC4, Full-Black)
Code: CS6R-435T-BLACKProduct detailed description
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 21.3 kg |
| Lenght: | 1722 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 435 W |
| Pallet: | 35 pcs |
| Container (40' HQ): | 910 pcs |
| Brand: | Canadian Solar |
| Cell: | TOPCon |
| Panel color: | All-black |
| Frame color: | Black |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC) |
| Connector: | MC4 |
| Front layer: | 3.2 mm tempered glass with anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 [2 X (9 X 6) ] |
| Nominal Max. Power (Pmax): | 435 W |
| Opt. Operating Voltage (Vmp): | 32.2 V |
| Opt. Operating Current (Imp): | 13.51 A |
| Open Circuit Voltage (Voc): | 39.2 V |
| Short Circuit Current (Isc): | 13.94 A |
| Module Efficiency: | 22.3% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC) or 1000V (IEC) |
| Module Fire Performance: | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating: | 25 A |
| Application Classification: | Class A |
| Power Tolerance: | 0 ~ + 10 W |
-
Canadian Solar TOPHiKu6 N-type CS6R-435T (MC4, All-Black) Datasheet (EN) (939 kB)
-
Canadian Solar TOPHiKu6 N-type CS6R-435T (MC4, All-Black) Warranty (234.5 kB)
