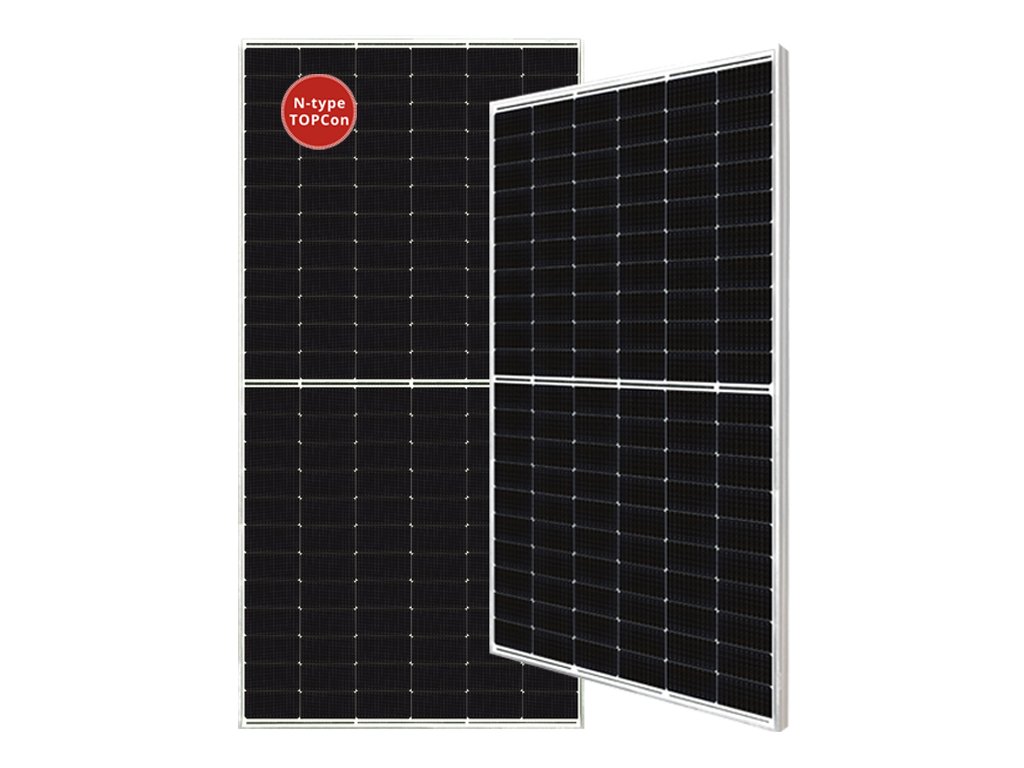

Canadian Solar TOPHiKu6 N-type CS6.1-54TD-455 (T6)
Code: CS6.1-54TD-455Product detailed description
Canadian Solar TopHiKu6: Performance and Reliability
This solar panel from Canadian Solar offers exceptional performance and superior efficiency. With comprehensive LID/LeTID mitigation technology and high load resistance, it is the ideal choice for energy efficient solutions.
Benefits of Canadian Solar TopHiKu6
- More power, higher reliability thanks to the benefits of CSI TOPCon modules
- Higher energy yield in low-light environments
- Better performance in high temperature environments
- Advanced manufacturing technologies to ensure performance and reliability of TOPCon modules
- Longer warranty, lower power degradation
Innovations and parameters
Canadian Solar's TOPHiKu6 features advanced technology such as optimization to minimize microcracks and high shading tolerance. It operates over a temperature range of -40°C to +85°C and has a maximum system voltage of 1500V (IEC/UL) or 1000V (IEC/UL).
Why choose Canadian Solar?
Canadian Solar is a renowned PV panel manufacturer that focuses on innovation and quality. Their products are designed to provide reliable performance and long-term resistance to extreme weather conditions. With Canadian Solar, you get technology that is both environmentally friendly and cost-effective.
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 22.7 kg |
| Lenght: | 1800 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 455 W |
| Pallet: | 35 pcs |
| Container (40' HQ): | 840 pcs |
| Brand: | Canadian Solar |
| Cell: | TOPCon |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC) |
| Connector: | T6 |
| Front layer: | 1.6 mm heat strengthened glass with anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 [2 X (9 X 6) ] |
| Nominal Max. Power (Pmax): | 455 W |
| Opt. Operating Voltage (Vmp): | 33.2 V |
| Opt. Operating Current (Imp): | 13.72 A |
| Open Circuit Voltage (Voc): | 39.1 V |
| Short Circuit Current (Isc): | 14.61 A |
| Module Efficiency: | 22.3% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC/UL) |
| Module Fire Performance: | TYPE 38 (UL 61730) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating: | 25 A |
| Protection Class: | Class II |
| Power Tolerance: | 0 ~ + 10 W |
Be the first who will post an article to this item!
Canadian Solar is a Canadian company focused on manufacturing solar panels and systems for photovoltaic applications. Their products are designed for residential, commercial building and industrial applications. The company has plants in several countries and employs over 15,000 people. Canadian Solar is known for its innovative technology and product quality. In addition to manufacturing solar panels, the company is also involved in the design and installation of solar systems. Canadian Solar promotes sustainability and renewable energy.
