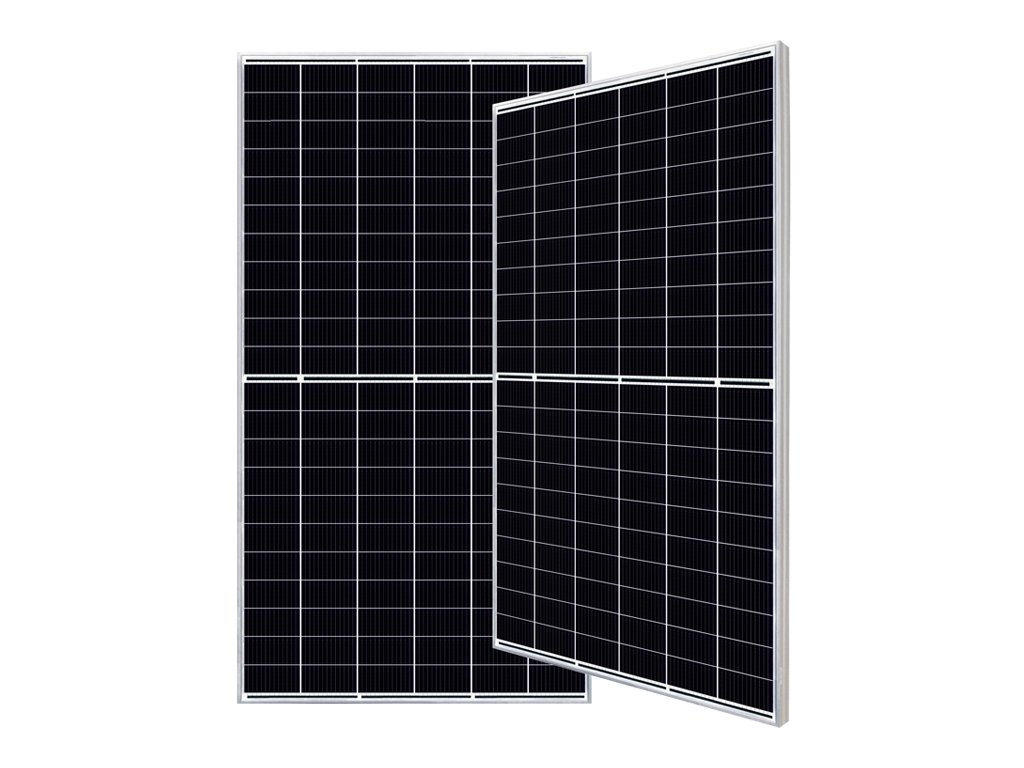

Canadian Solar HiKu7 Mono PERC CS7L-605MS (EVO2)
Code: CS7L-605MSProduct detailed description
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 31 kg |
| Lenght: | 2172 mm |
| Width: | 1303 mm |
| Height: | 35 mm |
| Power: | 605 W |
| Pallet: | 31 pcs |
| Brand: | Canadian Solar |
| Cell: | Mono PERC |
| Frame color: | Silver |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC) |
| Connector: | EVO2 |
| Front layer: | 3.2 mm tempered glass with anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 120 [2 X (10 X 6) ] |
| Nominal Max. Power (Pmax): | 605 W |
| Opt. Operating Voltage (Vmp): | 35.1 V |
| Opt. Operating Current (Imp): | 17.25 A |
| Open Circuit Voltage (Voc): | 41.5 V |
| Short Circuit Current (Isc): | 18.52 A |
| Module Efficiency: | 21.4% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC) or 1000V (IEC) |
| Module Fire Performance: | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating: | 30 A |
| Application Classification: | Class A |
| Power Tolerance: | 0 ~ + 10 W |
-
Canadian Solar HiKu7 Mono PERC CS7L-605MS Datasheet (EN) (1.1 MB)
-
Canadian Solar HiKu7 Mono PERC CS7L-605MS Warranty (EN) (119 kB)
-
Canadian Solar HiKu7 Mono PERC CS7L-605MS Installation Manual (EN) (3 MB)
Be the first who will post an article to this item!
Add a comment
Canadian Solar is a Canadian company focused on manufacturing solar panels and systems for photovoltaic applications. Their products are designed for residential, commercial building and industrial applications. The company has plants in several countries and employs over 15,000 people. Canadian Solar is known for its innovative technology and product quality. In addition to manufacturing solar panels, the company is also involved in the design and installation of solar systems. Canadian Solar promotes sustainability and renewable energy.
