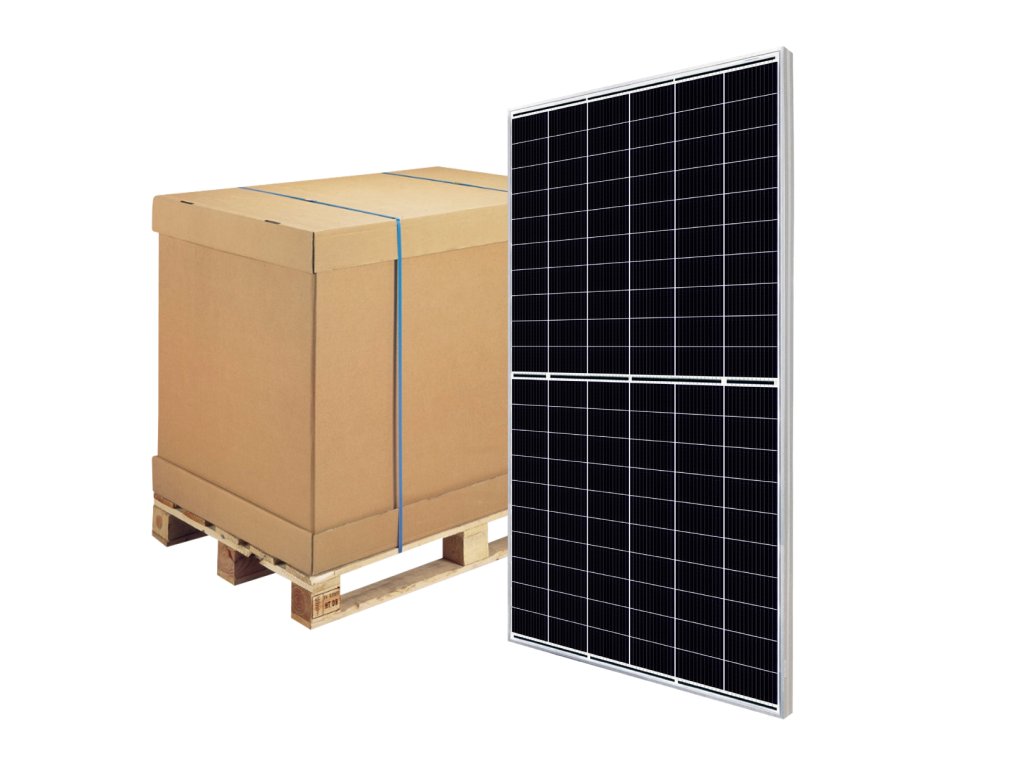

Canadian Solar HiKu7 CS7L-600MS (T4)
Code: CS7L-600MSProduct detailed description
- Module power up to 615 W and module efficiency up to 21.7%.
- Up to 3.5% lower LCOE and up to 5.7% lower system costs
- Comprehensive LID/LETID mitigation technology, up to 50% less degradation
- Better tolerance to shading
- 40 °C lower hot spot temperature, significantly lower module failure rates
- Minimises the impact of micro-cracks
- Heavy snow loads up to 5400 Pa, wind loads up to 2400 Pa*
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 31 kg |
| Lenght: | 2172 mm |
| Width: | 1303 mm |
| Height: | 35 mm |
| Power: | 600 W |
| Pallet: | 31 pcs |
| Container (40' HQ): | 558 pcs |
| Brand: | Canadian Solar |
| Cell: | Monocrystalline |
| Frame color: | Silver |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC), 12 AWG (UL) |
| Connector: | T4 |
| Front layer: | 3.2 mm tempered glass with anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 120 [2 x (10 x 6) ] |
| Nominal Max. Power (Pmax): | 600 W |
| Opt. Operating Voltage (Vmp): | 34.9 V |
| Opt. Operating Current (Imp): | 17.20 A |
| Open Circuit Voltage (Voc): | 41.3 V |
| Short Circuit Current (Isc): | 18.47 A |
| Module Efficiency: | 21.2% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC) or 1000V (IEC) |
| Module Fire Performance: | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating: | 30 A |
| Application Classification: | Class A |
| Power Tolerance: | 0 ~ + 10 W |
