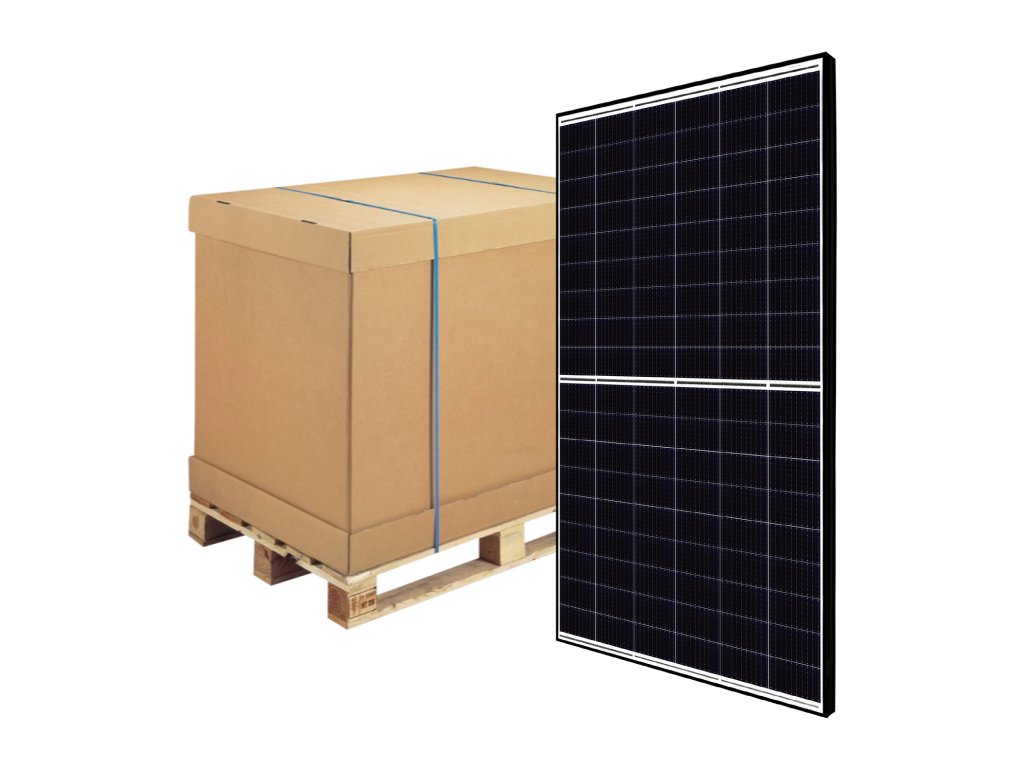

Canadian Solar HiKu6 CS6R-410MS (MC4, Black frame)
Code: CS6R-410MSProduct detailed description
Canadian Solar HiKu6: Performance and Reliability
This solar panel from Canadian Solar offers exceptional performance and superior efficiency. With comprehensive LID/LeTID mitigation technology and high load resistance, it is the ideal choice for energy efficient solutions.
Výhody Canadian Solar HiKu6
High performance
Exceptional performance and excellent efficiency ensure optimum energy production. Lower costs
Innovative design and technology guarantee lower installation costs for the photovoltaic system. Minimising degradation
LID/LeTID mitigation technology minimizes degradation by up to 50%, preserving performance for a long time
Innovations and Parameters
Canadian Solar HiKu6 is equipped with advanced technology such as optimization to minimize micro-cracks and high shading tolerance. It operates over a temperature range of -40°C to +85°C and has a maximum system voltage of 1500V (IEC/UL) or 1000V (IEC/UL).
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 21.3 kg |
| Lenght: | 1722 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 410 W |
| Pallet: | 35 pcs |
| Container (40' HQ): | 910 pcs |
| Brand: | Canadian Solar |
| Cell: | Monocrystalline |
| Frame color: | Black |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC), 12 AWG (UL) |
| Connector: | MC4 |
| Front layer: | 3.2 mm tempered glass with anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 [2 X (9 X 6) ] |
| Nominal Max. Power (Pmax): | 410 W |
| Opt. Operating Voltage (Vmp): | 31.2 V |
| Opt. Operating Current (Imp): | 13.15 A |
| Open Circuit Voltage (Voc): | 37.2 V |
| Short Circuit Current (Isc): | 14.01 A |
| Module Efficiency: | 21.0% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC/UL) or 1000V (IEC/UL) |
| Module Fire Performance: | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) |
| Max. Series Fuse Rating: | 25 A |
| Application Classification: | Class A |
| Power Tolerance: | 0 ~ + 10 W |
Be the first who will post an article to this item!
Canadian Solar is a Canadian company focused on manufacturing solar panels and systems for photovoltaic applications. Their products are designed for residential, commercial building and industrial applications. The company has plants in several countries and employs over 15,000 people. Canadian Solar is known for its innovative technology and product quality. In addition to manufacturing solar panels, the company is also involved in the design and installation of solar systems. Canadian Solar promotes sustainability and renewable energy.
