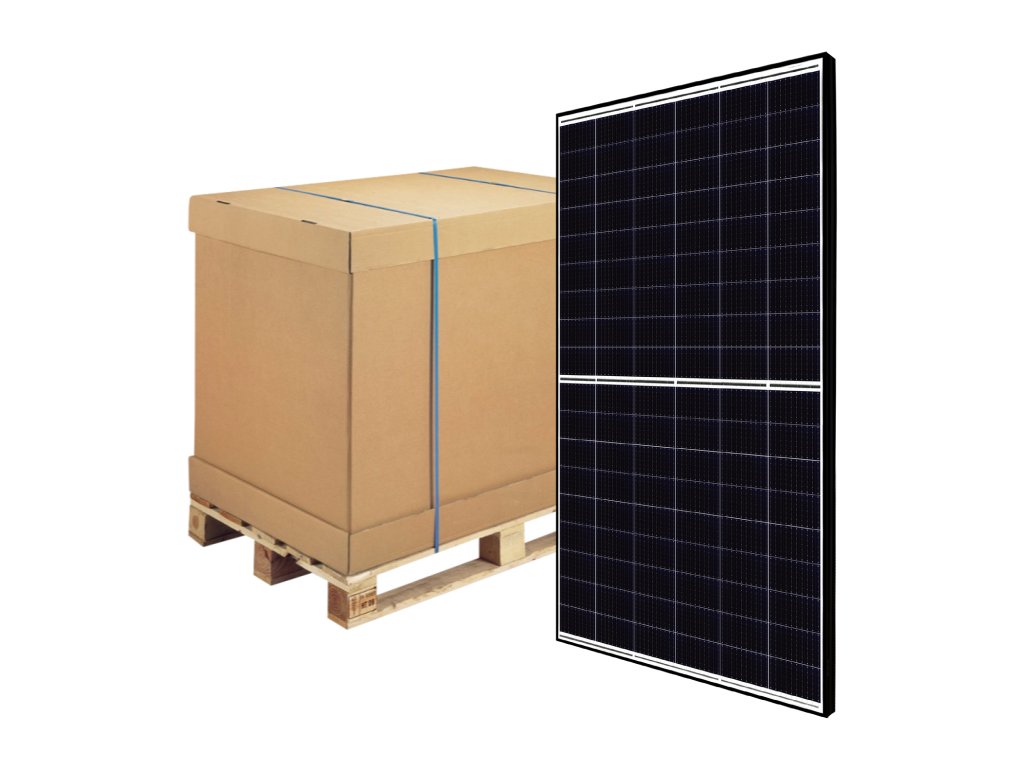

Canadian Solar HiHero CS6R-435H-AG (EVO2, Black frame)
Code: CS6R-435H-AGProduct detailed description
- Module efficiency of up to 22.8% maximises roof space utilisation
- No B-O cap, excellent anti-LeTID & anti-PID performance. Low energy degradation, high energy yield
- Leading temperature coefficient (Pmax): -0.26%/°C, increases energy yield in hot climates
- Better shading tolerance
- Minimizes the impact of microcracks
- Heavy snow loads up to 5400 Pa, increased wind loads up to 2400 Pa*
Additional parameters
| Category: | Photovoltaic modules |
|---|---|
| Weight: | 23 kg |
| Rear glass: | 1.6 mm heat-strengthened glass |
| Lenght: | 1722 mm |
| Width: | 1134 mm |
| Height: | 30 mm |
| Power: | 435 W |
| Pallet: | 35 pcs |
| Container (40' HQ): | 910 pcs |
| Brand: | Canadian Solar |
| Cell: | HJT (Heterojunctional) |
| Frame color: | Black |
| J-Box: | IP68, 3 bypass diodes |
| Cable: | 4 mm2 (IEC) |
| Connector: | EVO2 |
| Front layer: | 2.0 mm heat-strengthened glass with an anti-reflective coating |
| Frame: | Anodized aluminum alloy |
| Cell arrangement: | 108 [2 X (9 X 6) ] |
| Nominal Max. Power (Pmax): | 435 W |
| Opt. Operating Voltage (Vmp): | 33.8 V |
| Opt. Operating Current (Imp): | 12.89 A |
| Open Circuit Voltage (Voc): | 40.2 V |
| Short Circuit Current (Isc): | 13.43 A |
| Module Efficiency: | 22.3% |
| Operating Temperature: | -40°C ~ +85°C |
| Max. System Voltage: | 1500V (IEC) or 1000V (IEC) |
| Module Fire Performance: | CLASS C (IEC61730) |
| Max. Series Fuse Rating: | 25 A |
| Application Classification: | Class A |
| Power Tolerance: | 0 ~ + 10 W |
