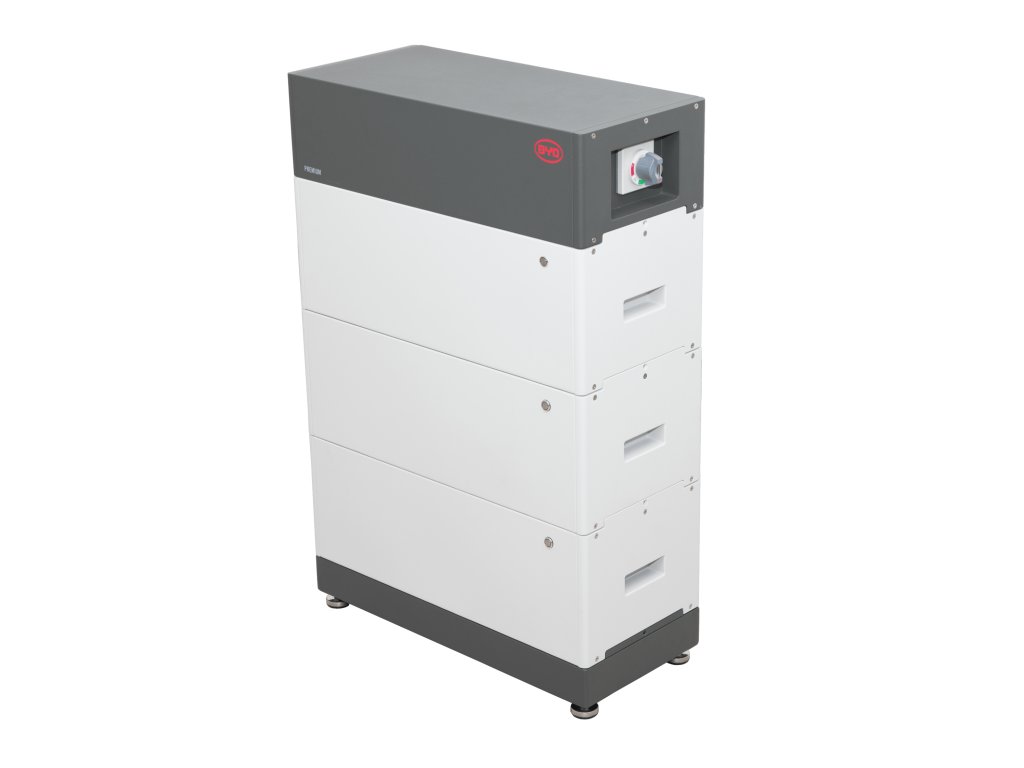

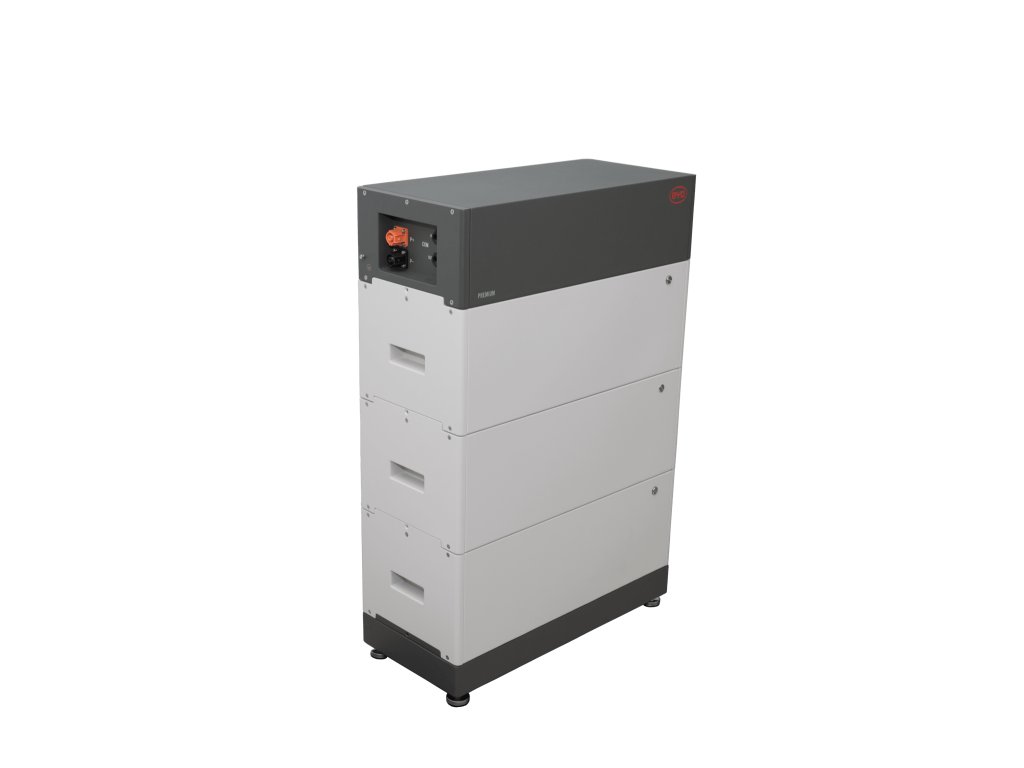

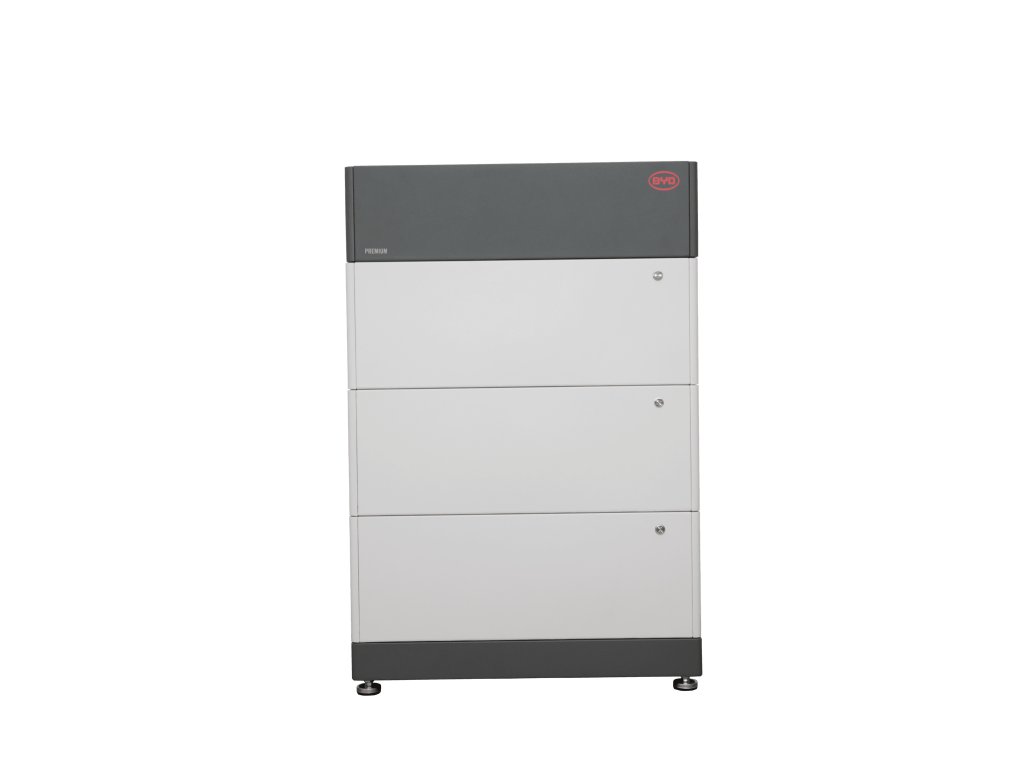

BYD Battery-Box Premium LVS-12.0

Code: BYD-BATTERY-BOX-PR-LVS-12-0
Not rated
Brand: BYD
€4 233,33 €5 080 incl. VAT
In stock (5 days)
Delivery to:
04.11.2024

The Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery designed for use with an external inverter. Each Battery-Box Premium LVS consists of 1 to 6 LVS battery modules in parallel, offering a usable capacity of 4 to 24 kWh. Up to 16 Battery-Box LVS 16.0 units can be connected in parallel, allowing a maximum size of 256 kWh. In addition, the system is scalable, allowing for later expansion by adding LVS modules or parallel towers of 1 to 4 modules.

Detailed information

Product detailed description

Main Feautres

Backup and off-network

The Battery-Box is suitable for off-grid and emergency power applications. Its high discharge capacity allows operation even after disconnection from the mains. Whether powering a remote cottage or serving as a backup for sensitive loads, BYD provides the ideal energy storage solution for your project.

Optimise your own power consumption

Self-consumption of renewable energy is undoubtedly the way forward. With subsidies for renewable energy production decreasing worldwide and electricity prices rising, it is becoming more and more profitable to use energy that you generate on-site.

Any use

The Battery-Box offers versatile solutions, whether it's for a family home or commercial use. As a plumber, you can rely on the same common building block and tailor it to the specific needs of your clients. In addition, you have the option to start with a smaller capacity and easily expand it at any time during the life of the product.

BYD LFP batteries

BYD's cobalt-free LFP (Lithium Iron Phosphate) battery ensures optimal safety, long life cycle and reliable output performance. Its robust chemistry and versatile design enable operation in a variety of temperature ranges and geographic regions around the world.

Additional parameters

Category: Batteries for photovoltaics
Weight: 154 kg
Degree of protection (IP): IP55
Communication: CAN
Maximum output current: 195 A
Nominal voltage: 51.2 V
Operating voltage: 40-57.6 V
Lenght: 298 mm
Width: 650 mm
Height: 994 mm
Peak output current: 270 A, 5 s
Usable energy: 12 kWh
Brand: BYD
