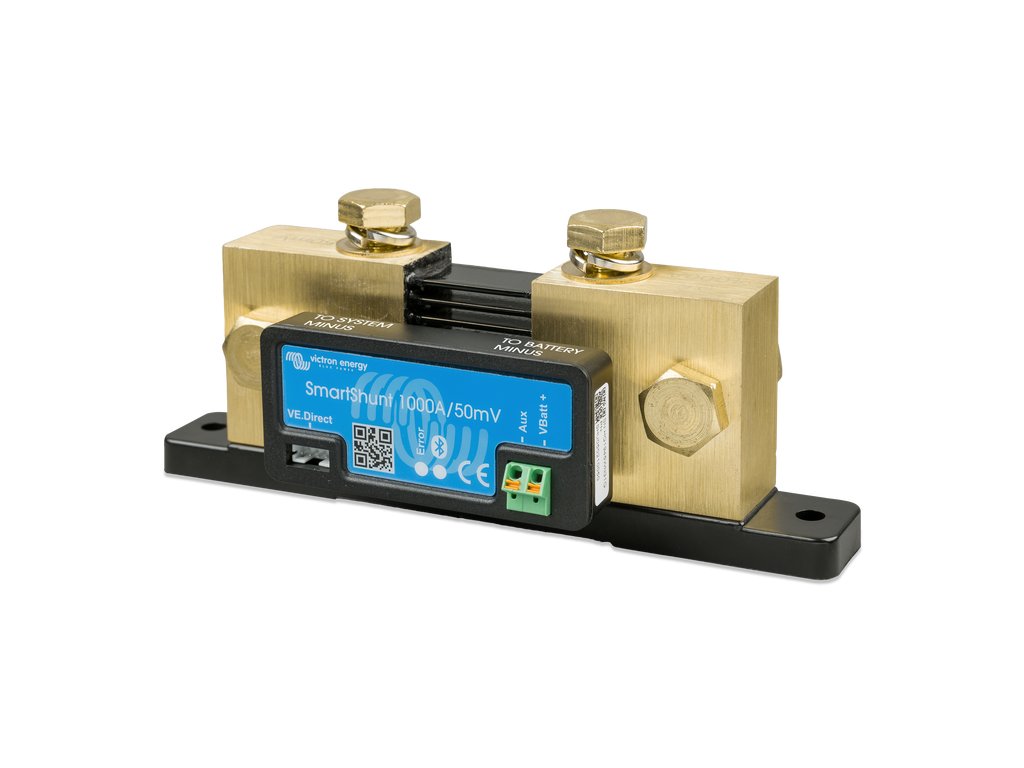

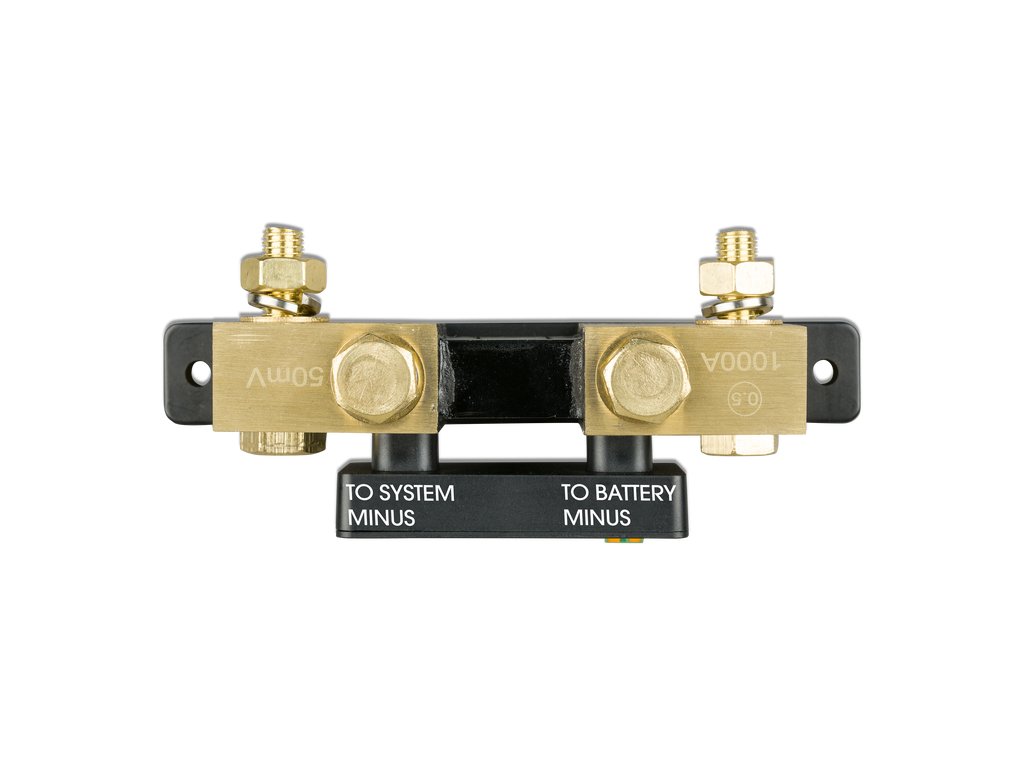

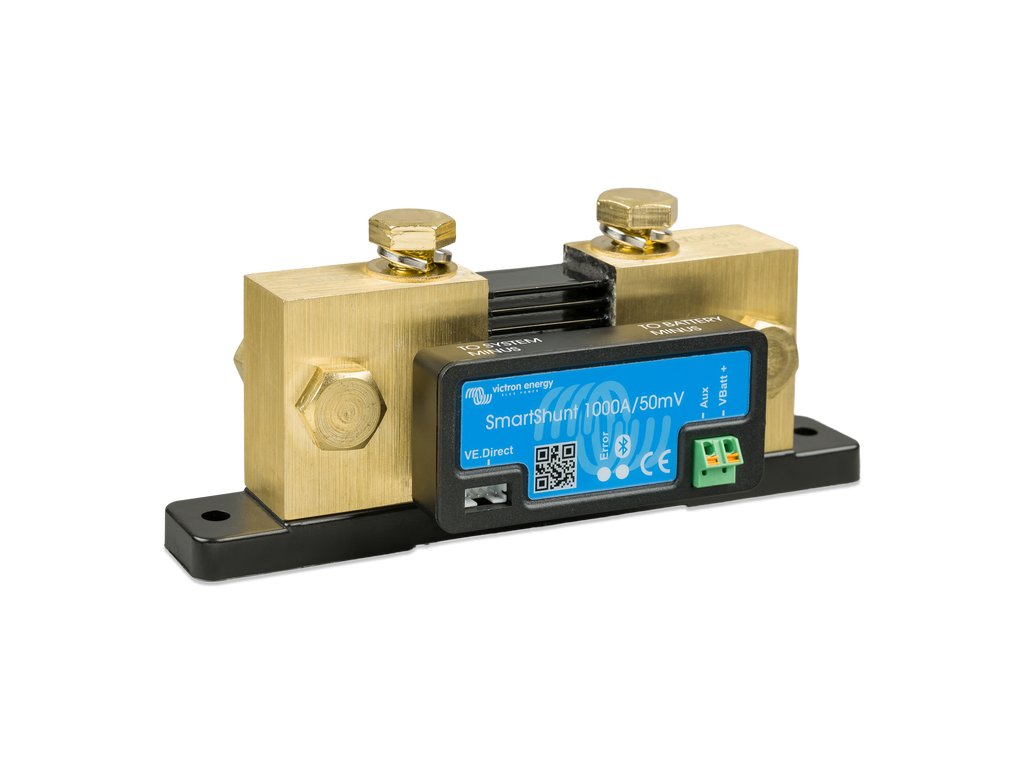

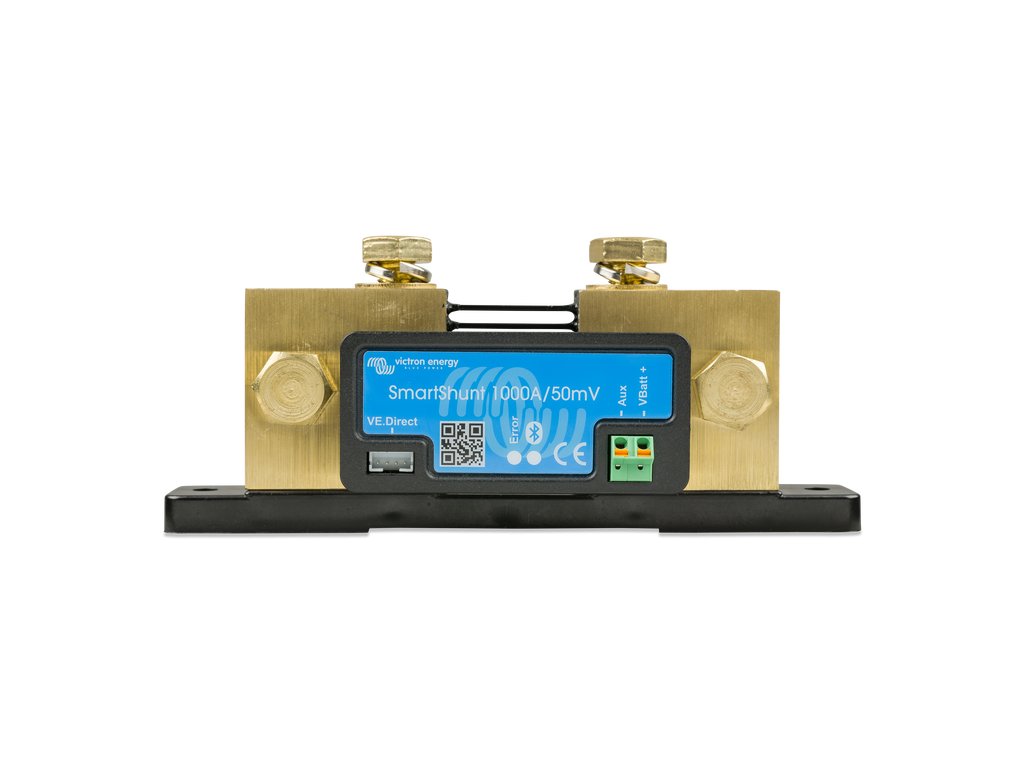

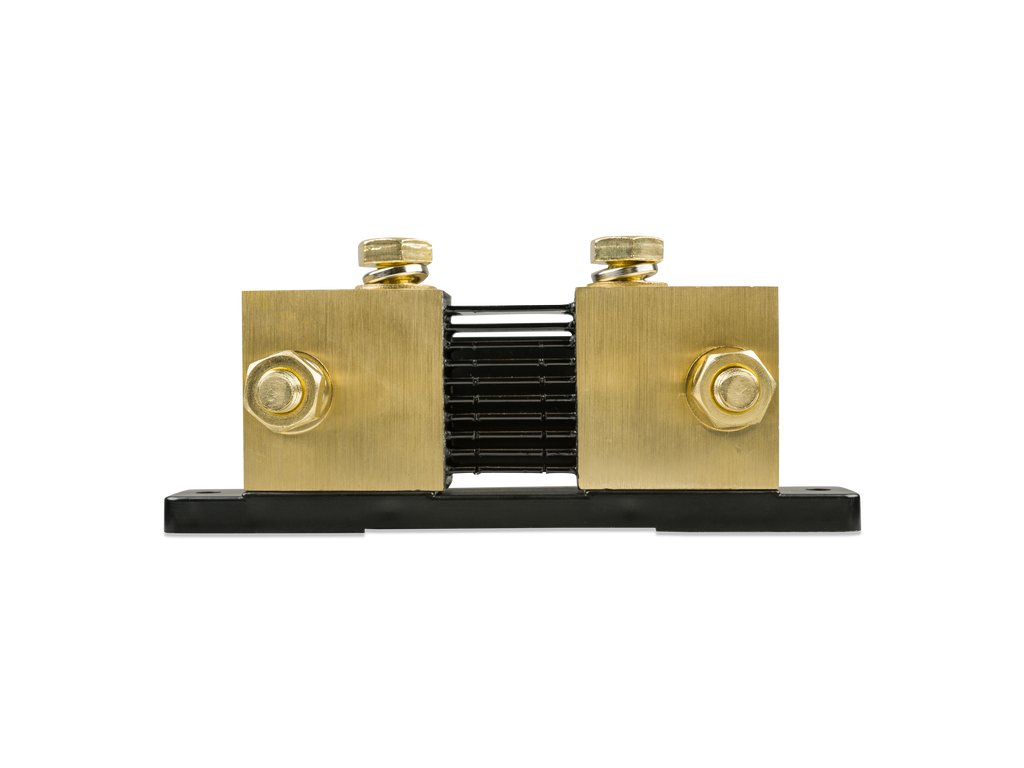

    Victron SmartShunt 1000A

    Code: VICTRON-SMARTSHUNT-1000A-50MV
    Not rated
    Victron SmartShunt 1000A
    €160,16 €197 incl. VAT
    In external warehouse
    Delivery to:
    28.05.2025

    The SmartShunt is a universal battery monitor that does not include a display. Instead, it pairs with your phone via Bluetooth, allowing you to use the VictronConnect app as a display. Through the app, you can easily access various battery parameters such as charge status, time to run, historical data and more.

    Detailed information

    Product detailed description

    The SmartShunt can also be connected to a GX device for monitoring. This connection is made using a VE.Direct cable.

    The SmartShunt serves as a great alternative to the BMV battery monitor, especially in systems where fewer cables and clutter are preferred. It comes with Bluetooth, a VE.Direct port and additional connections that can be used to monitor a second battery, monitor a midpoint or connect a temperature sensor.

    Additional parameters

    Category: Photovoltaics
    Weight: 0.5 kg
    Brand: Victron Energy
    Degree of protection (IP): IP21
    Communication: VE.Direct
    Operating voltage: 6.5 - 70 Vdc
    Lenght: 75 mm
    Width: 168 mm
    Height: 68 mm
    Nominal Current: 1000 A
